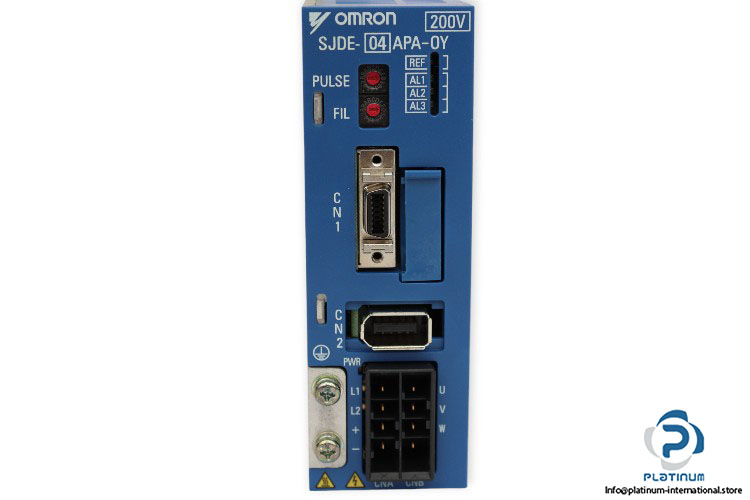

Omron SJDE-04APA-OY Servo Drive

Manufacture: Omron
Type: Servo Drive
Model: SJDE04APAOY

Input:
Voltage: 200 … 230 V AC/1-phase
Current: 4.8 A
Frequency: 50/60 Hz
Output:
Voltage: 0 … 230 V AC/3-phase
Current: 2 A
Frequency: 0 … 300 Hz
Power: 400 W
Operating ambient temperature: 0 … 55°C
Rated Torque: 1.27 Nm
Control Method: PWM control, sine wave current drive system
Control Interface specification: Pulse train input
Dynamic brake (DB): Operated at main power OFF, servo alarm, servo OFF
LED display: 5 (PWE, REF, AL1, AL2, AL3)
Reference filter: Select one of eight levels with FIL switch
Dimensions: 140 x 40 x 180 mm
