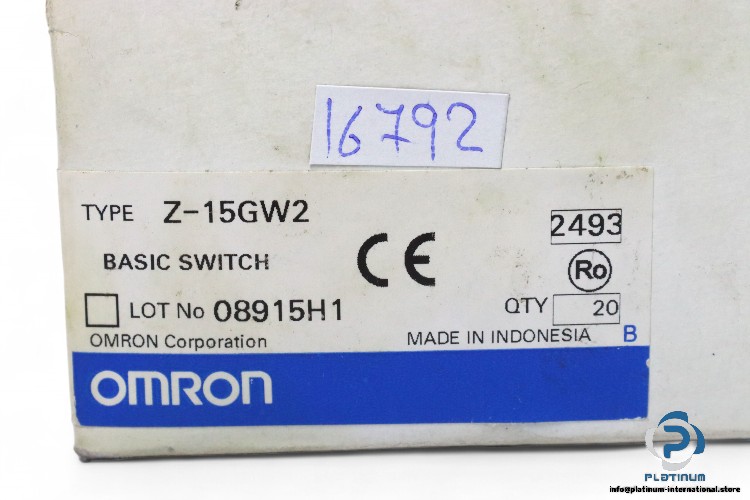

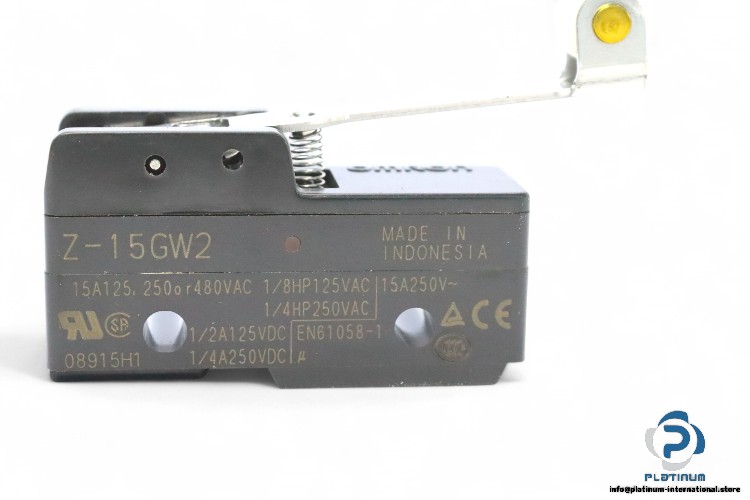

Omron Z-15GW2 Basic Switch
Manufacturer: Omron
Type: Basic Switch
Model: Z-15GW2
Series: Z-15
Rated Voltage: 250 / 480 V AC
Rated Current: 15 A
Frequency: 50 … 60 Hz
Contact: SPDT Normally Open (NO) / Normally Closed (NC)
Contact resistance: 15 m Ω max.
Operating speed: 0.01 mm to 1 m/s *1
Actuator: Hinge roller lever
Horse Power: 0.25 / 0.125 HP
Ambient temperature: -25 … 80 °C
