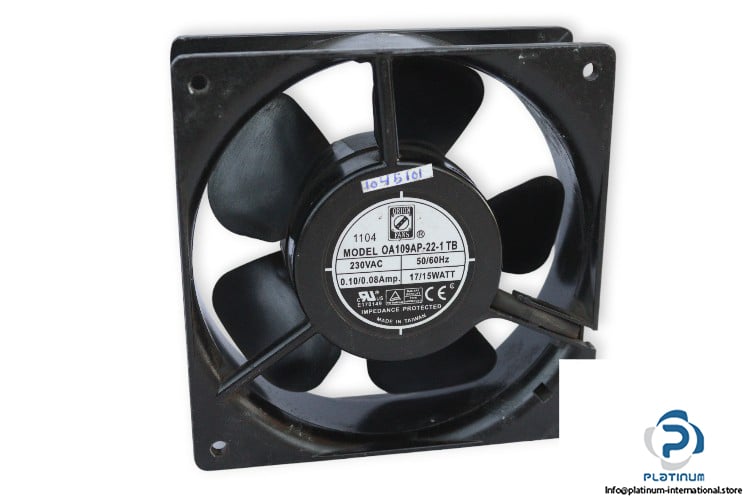

Orion Fans OA109AP-22-1TB Axial FAN

Manufacturer: Orion Fans
Type: Axial Fan

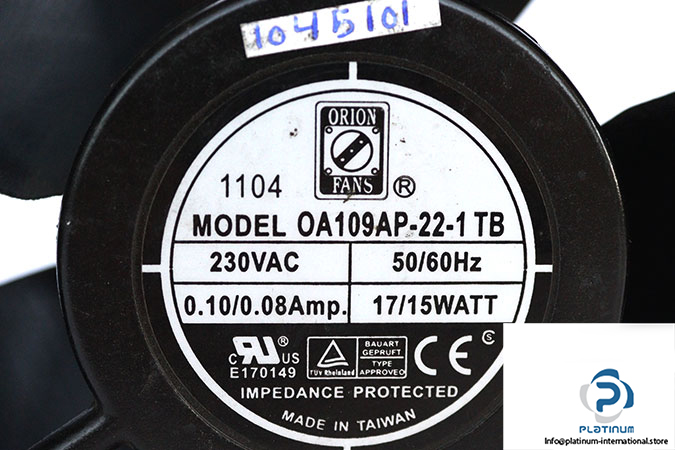

Model: OA109AP221TB


Frame Shape: Square Frame
No. of Blades: 5

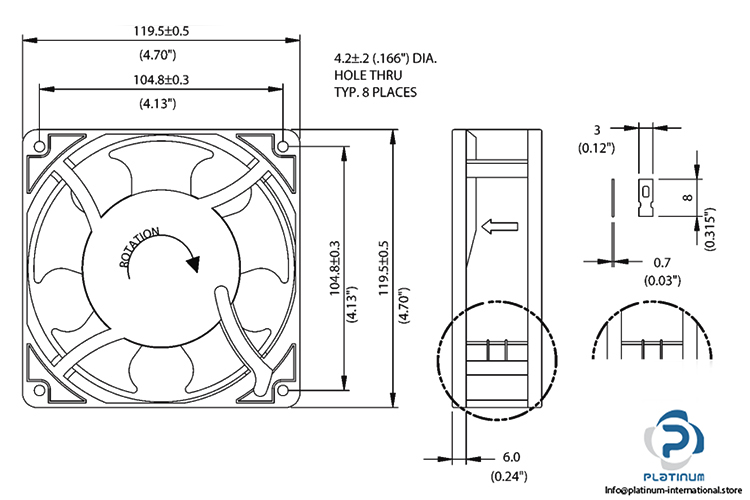

Dimensions (mm): 120x120x38
Direction: Push
Voltages (V AC): 230
Power Rating (W): 15-17
Speed (rpm): 3000

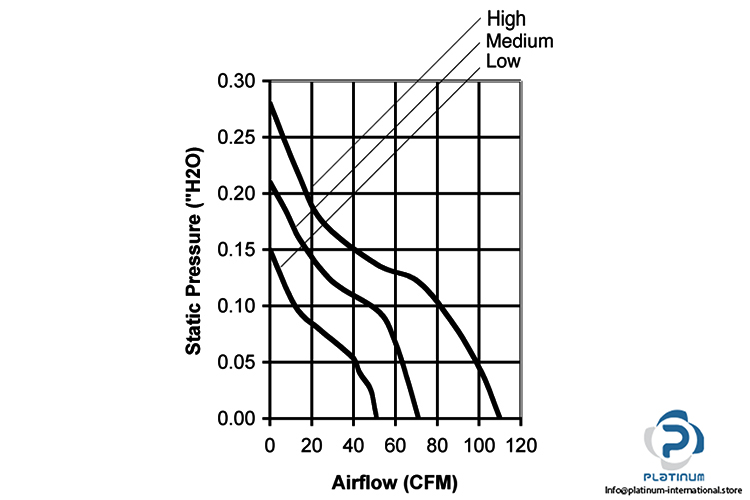

Flow Rate (m3/h): 110
Flow Rate (CFM): 65.0887574
Current (A): 0.08-0.1
Frequency: 50/60 Hz
Inverter: without Inverter
Number of Wires: 2
Blade material / Fan housing material: Plastic / Metal
