Orix MU1225S-51 Axial FAN
Used
In stock1 unitReady to ship
AXIAL FAN
Orix MU1225S-51 Axial Fan with 6-blade square frame design, 2500/2950 rpm speed, and 95.925/113.92 m³/h airflow. Built with ball bearings, plastic blades, and metal housing for reliable industrial cooling.119x119x25220V6AirflowAxialBallbearingBladeCoolingFanframeHighIndustrialmmmotorMU1225S-51OrientalOrixSquare
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

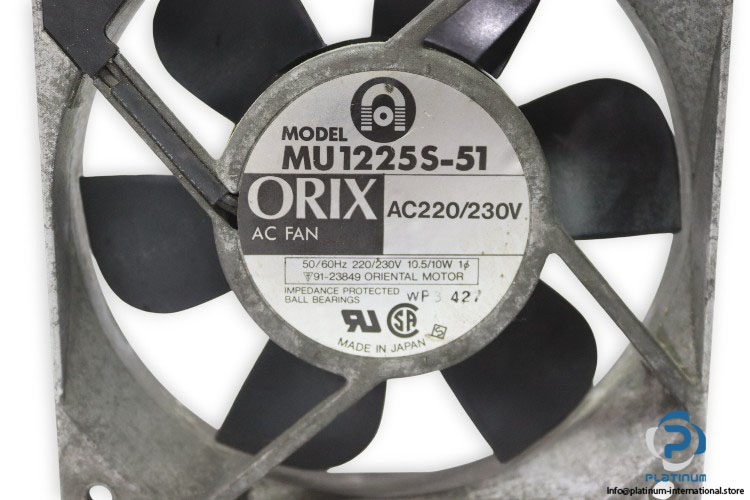

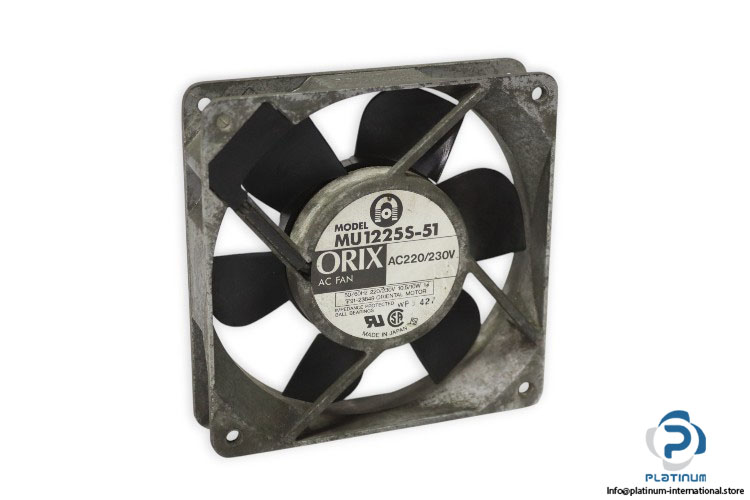

ORIX MU1225S-51 AXIAL FAN
The ORIX MU1225S-51 Axial Fan, manufactured by Oriental Motor, delivers reliable cooling performance for industrial applications. Featuring a square frame design, ball bearing construction, and high airflow rates, it is ideal for maintaining optimal temperatures in electrical and mechanical systems.
Manufacturer: Orix
Type: Axial Fan
Model: MU1225S-51
Oriental Motor: 91-23849
| Frame Shape | Square Frame |
| No. of Blades | 6 |
| Dimensions (mm) | 119 x 119 x 25 |
| Direction | Push |
| Bearing | Ball Bearing |
| Speed | 2500 / 2950 rpm |
| Flow Rate | 95.925 / 113.92 m³/h, 56.5 / 67.1 CFM |
| Voltages (V) | 220 / 230 |
| Number of Wires | 2 |
| Inverter | Without Inverter |
| Current (A) | 0.07 / 0.08 |
| Power Rating (W) | 10.5 / 10 |
| Frequency | 50 / 60 Hz |
| Blade Material / Fan Housing Material | Plastic / Metal |
| Max. Static Pressure | 0.196 inH2O / 0.176 inH2O |
