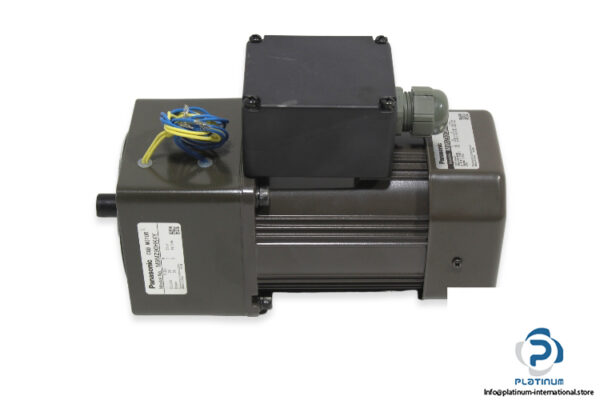

Panasonic M9MZ90GK4YH 3 Phase Induction Motor

Panasonic M9MZ90GK4YH 3 Phase Induction Motor with Clutch and Brake Motor

The Panasonic M9MZ90GK4YH is a reliable 3-phase induction motor engineered for industrial automation and continuous duty operation. It features robust construction, stable performance, and an integrated clutch and brake unit (M9MZ90HK4Y) for enhanced control in demanding applications.

Manufacturer: Panasonic
Type: 3 Phase Induction Motor
Model: M9MZ90GK4YH

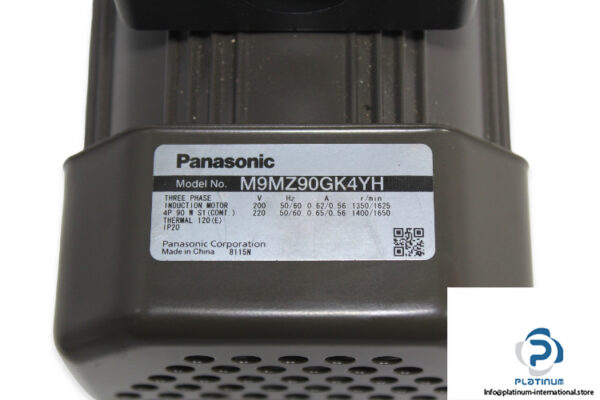

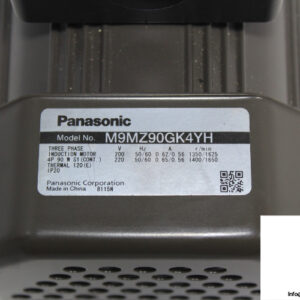

Technical information (Induction Motor)

• Rated Voltage: 220/220 V
• Rated Current: 0.62“0.56 / 0.65“0.56 A
• Rated Power: 90 W
• Rated Speed: 1350“1625 / 1400“1650 rpm
• Number of Poles: 4
• Insulation Class: E
• Duty: S1
• Protection Class: IP20

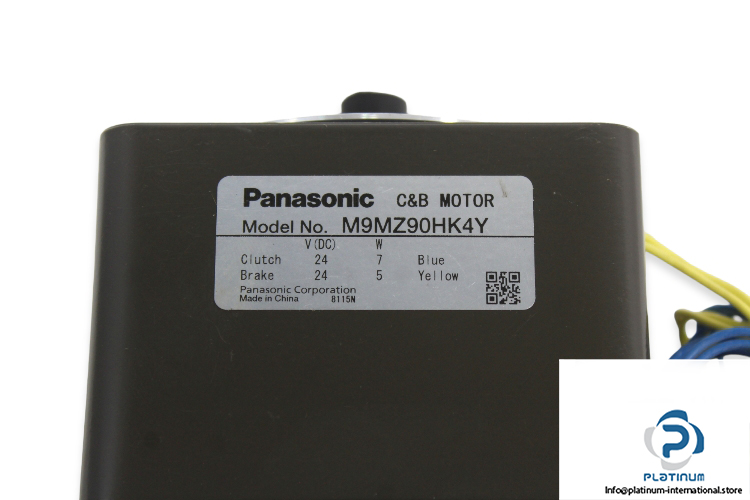

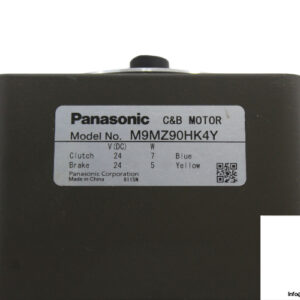

Attachment (Clutch and Brake Motor)

• Manufacturer: Panasonic
• Type: Clutch and Brake Motor
• Model: M9MZ90HK4Y
• Voltage Brake: 24 VDC
• Power Brake: 5 W
• Voltage Clutch: 24 VDC
• Power Clutch: 7 W
