Panasonic PM-Y44P Photoelectric Sensor
New
In stock2 unitsReady to ship

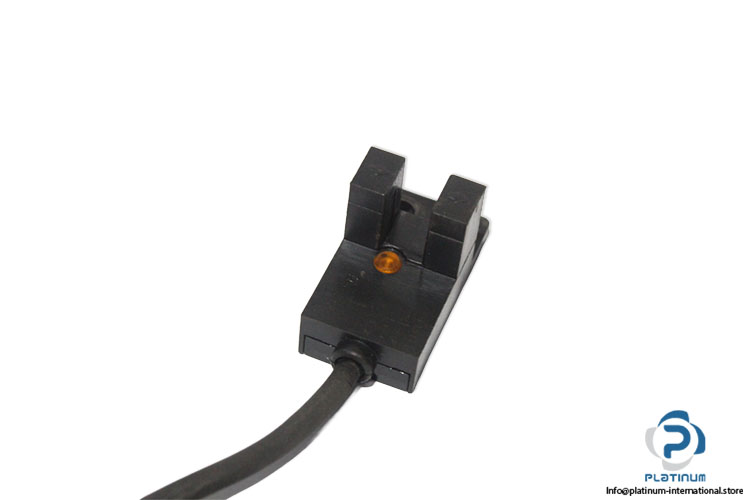

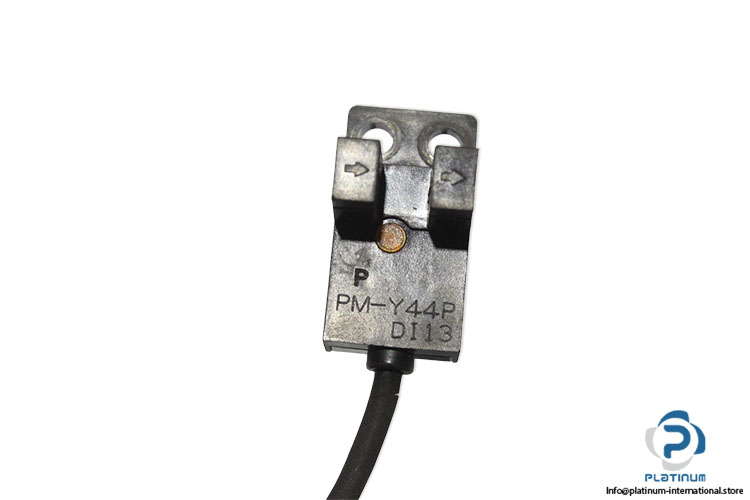

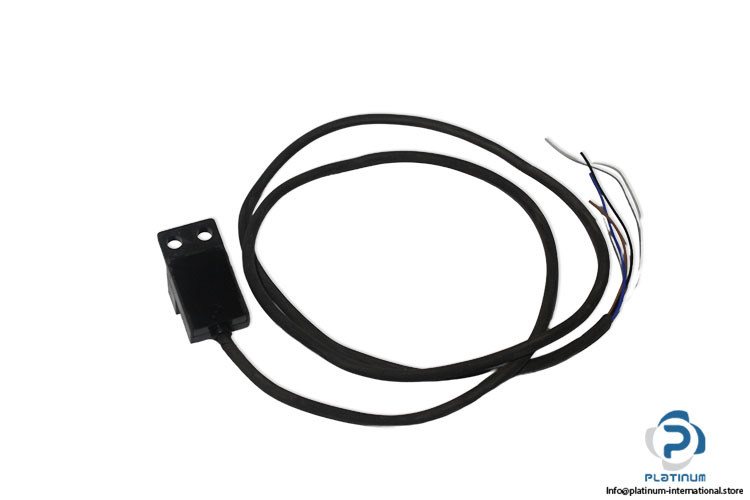

Photoelectric Sensor The PANASONIC PM-Y44P is a compact U-shaped micro photoelectric sensor with a 5 mm sensing range, PNP output, and fast response for precise industrial object detection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

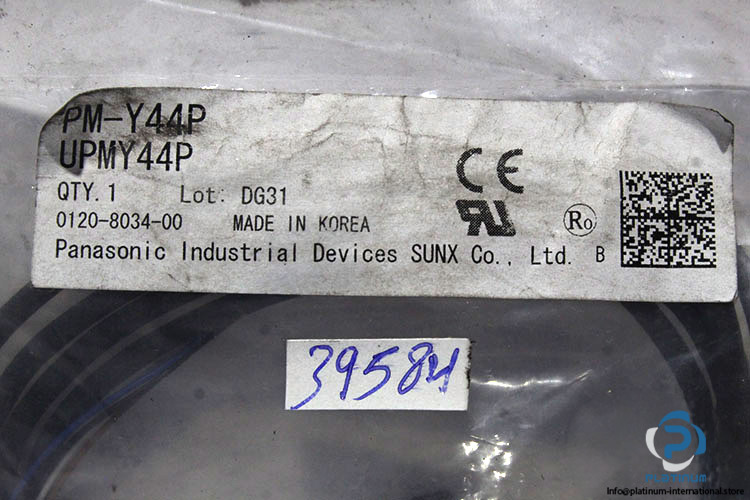

| MNR | UPMY44P |
| Code | DG31, DI13 |
| Sensing range | 5 mm 0.197 in (fixed) |
| Minimum sensing object | 0.8 x 1.8 mm 0.031 x 0.071 in opaque object |
| Hysteresis | 0.05 mm 0.002 in or less |
| Repeatability | 0.03 mm 0.001 in or less |
| Supply voltage | 5 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
| Output | PNP open-collector transistor |
| Maximum source current | 50 mA |
| Applied voltage | 30 V DC or less (between output and + V) |
| Residual voltage | 0.7 V or less (at 50 mA source current), 0.4 V or less (at 16 mA source current) |
| Output operation | Incorporated with 2 outputs: Light-ON / Dark-ON |
| Response time | Under light received condition: 20 micros or less |
| Operation indicator | Vermilion LED (lights up under light received condition) |
| Ambient temperature | -25 to +55 degrees |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Fluorescent light: 1,000 lx at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 50 MOhm, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 2,000 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 15,000 m/s2 |
| Emitting element | Infrared LED |
| Material | Enclosure: PBT, Slit cover: Polycarbonate |

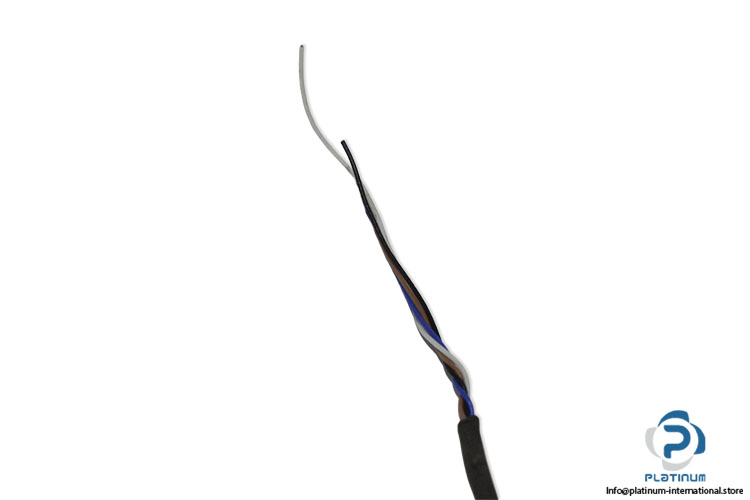

| Cable | 0.09 mm2 4-core cabtyre cable |
| Wiring length | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101001 |
| Weight | 0,01 |
