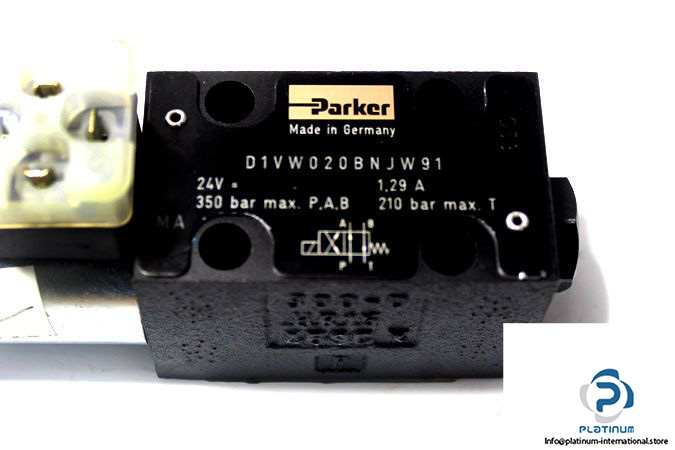

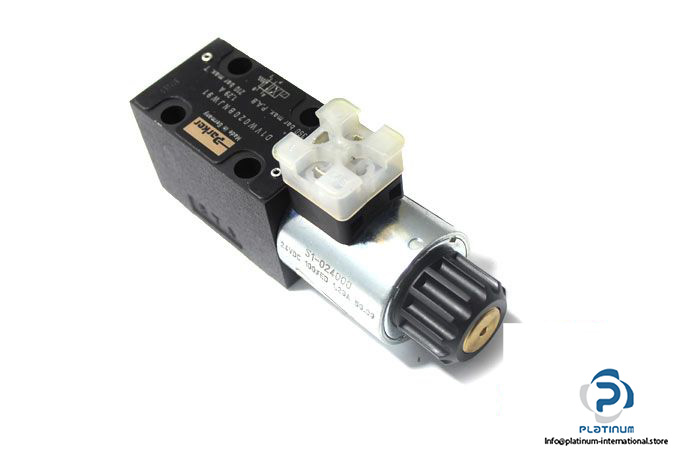

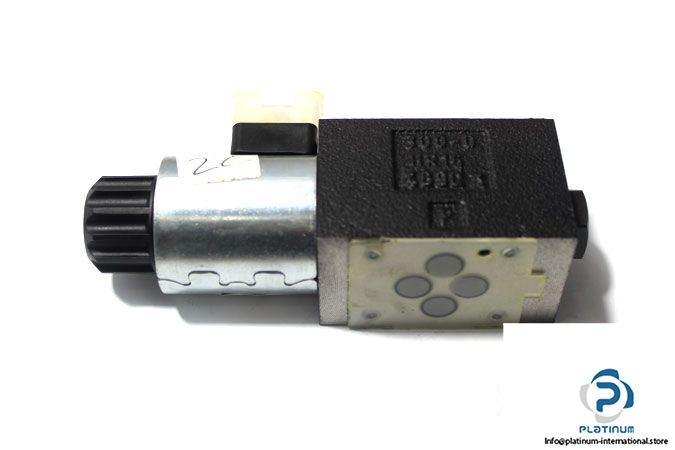

Parker D1VW020BNJW91 Directional Control Valve

Manufacturer: Parker

Type: Directional Control Valve

Model: D1VW020BNJW91

Nominal Size: NG06

Type of Actuation: Electrically

Position Type: 2 Position spools

Max. Working pressure (Port P, A, B): 350 bar

Max. Pressure (Port T): 210 bar

Max. Flow Rate: 80 l/min

Hydraulic Connection: Sub-Plate

Seals: NBR

Fluid Temperature Range: -20 ….. +70 °C

Nominal voltage per Coil: 24 VDC

Weight: 1.5 kg
