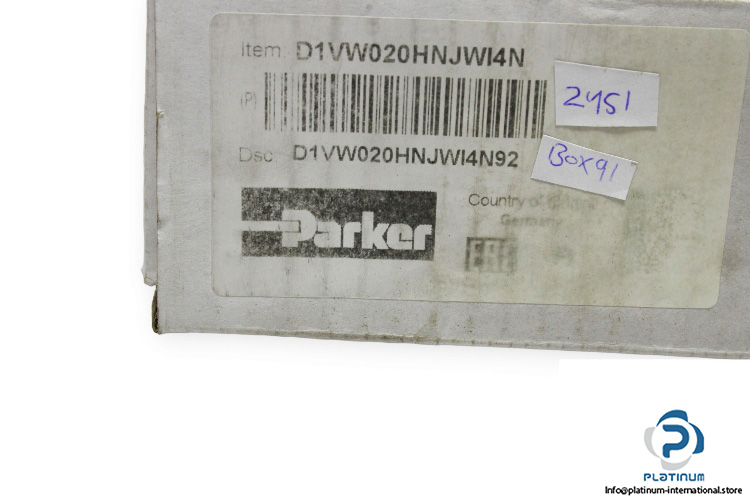

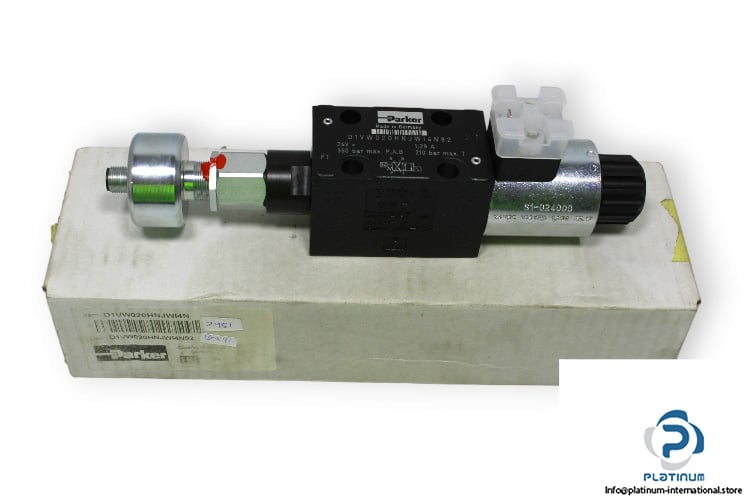

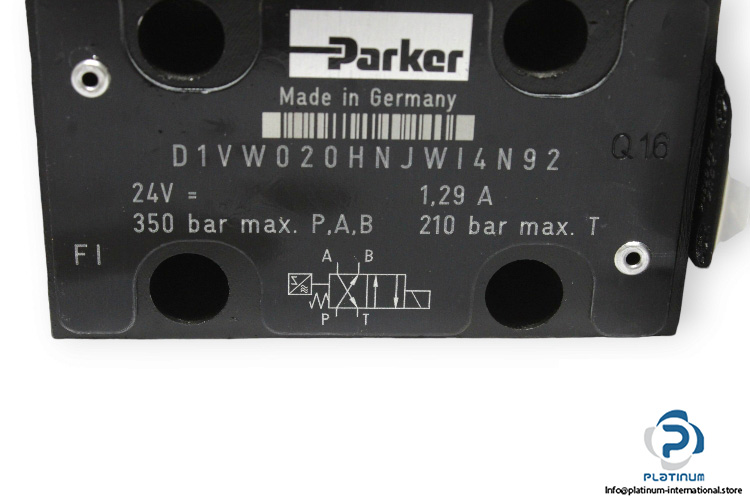

Parker D1VW020HNJW14N92 Directional Control Valve

Manufacturer: PARKER
Type: Directional Control Valve
Model: D1VW020HNJW14N92
MNR: D1CW020HNJWI4N

Nominal Size: NG 6
Type of Actuation: Electrically
Max. Working pressure (Port P, A, B): 350 bar
Max. Pressure (Port T): 210 bar
Hydraulic Connection: Sub-Plate
Fluid Temperature Range: -20 ….. +80 °C

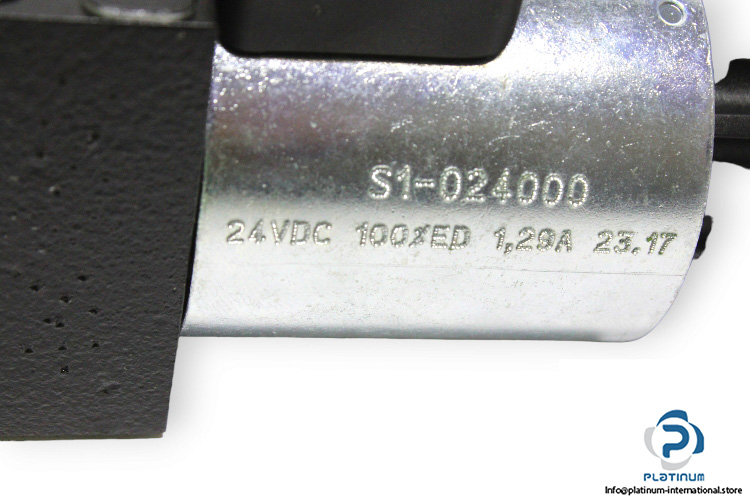

Attachment: PARKER S1-024000 SOLENOID COIL
Manufacturer: PARKER
Type: Solenoid Coil
Model: S1-024000

Nominal voltage per Coil: 24 VDC
Nominal Current per Coil: 1.29 A
