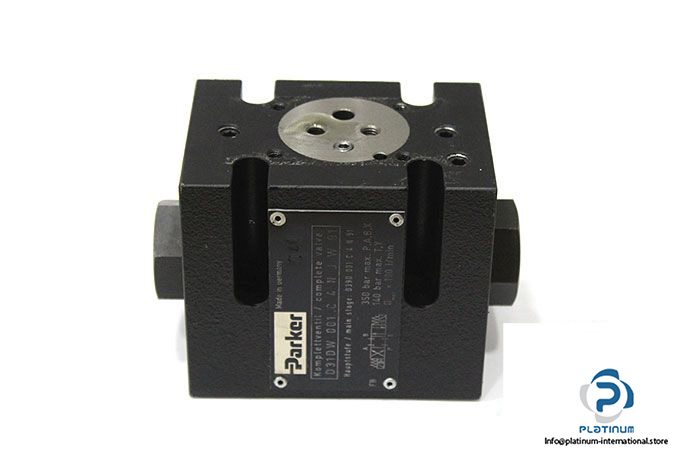

Parker D31DW 001 C 4 N J W 91 Pilot Operated Directional Control Valve
Manufacturer: Parker
Type: Pilot Operated Directional Control Valve
Model: D31DW 001 C 4 N J W 91
Nominal Size: NG 06
Bore Size: NG10.11 mm
Type of Actuation: Electrically
Max. Working pressure (Port P, A, B): 350 bar
Max. Pressure (Port T): 140 bar
Max. Flow Rate: 100 l/min
Hydraulic Connection: Threaded
Seals: NBR
Fluid Temperature Range: -20 ….. +80 °C
Nominal voltage per Coil: 24 VDC
Weight: 3.54 kg
