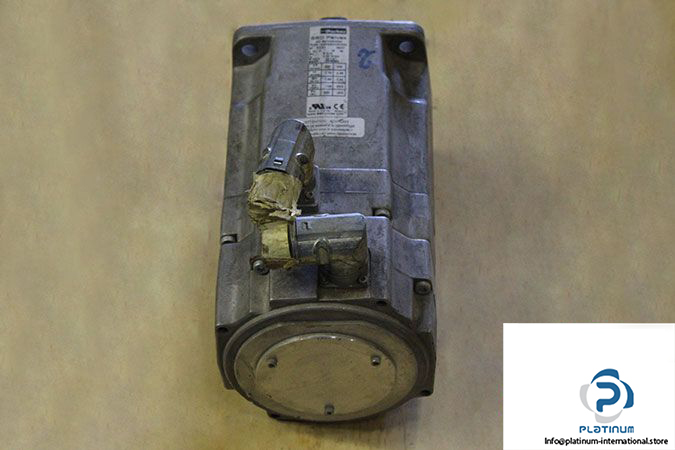

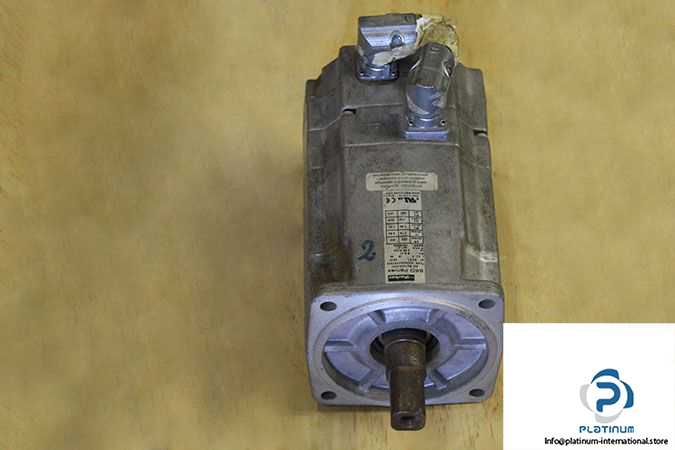

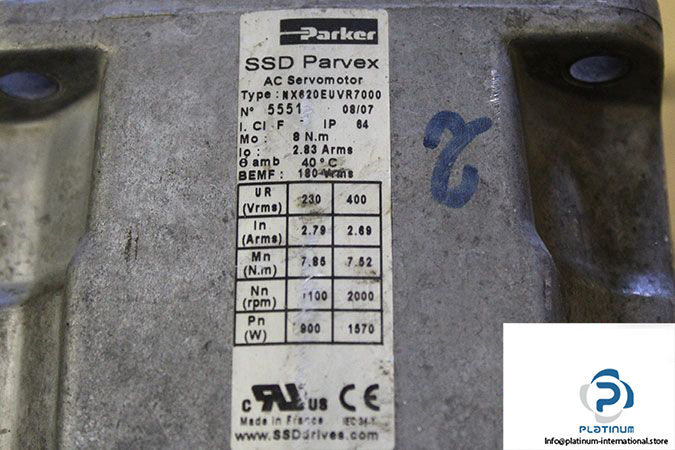

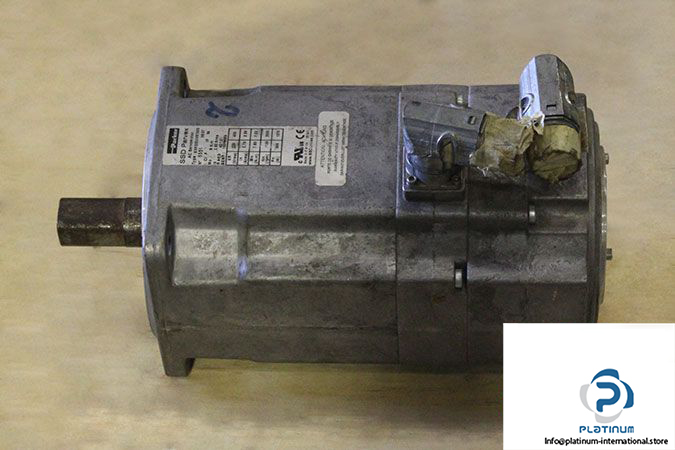

Parker NX620EUVR7000 Brushless AC Servo Motor

Manufacturer: PARKER SSD Parvex

Type: Brushless AC Servo Motor

Model: NX620EUVR7000

Rated Voltage: 230 / 400 Vrms

Rated Current: 2.79 / 2.69 Arms

Stall Current: 2.83 Arms

Rated Torque: 7.85 / 7.52 Nm

Stall Torque: 8 Nm

Rated Power: 900 / 1570 W

Rated Speed: 1100 / 2000 min^-1

Temperature: 40 °C

Insulation Class: F

Protection Class: IP 64

Weight: 7.235 kg
