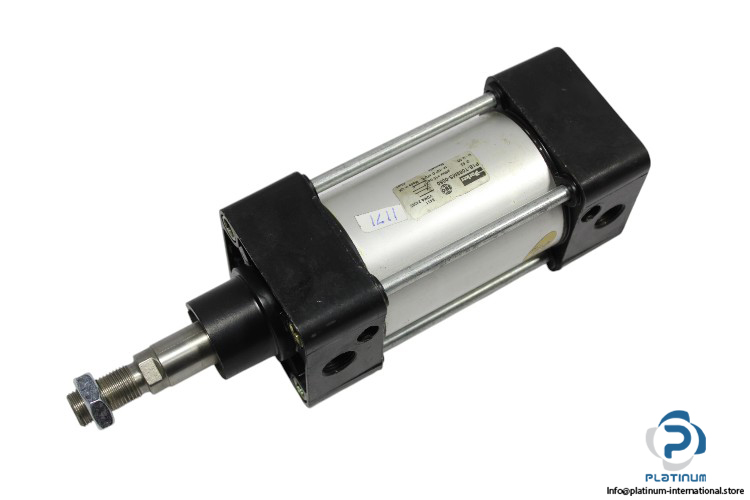

Parker P1E-T063MS-0050 ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
PARKER ISO Cylinder P1E-T063MS-0050 is designed for use with compressed air, featuring a 63 mm bore diameter, 50 mm stroke, and 10 bar maximum pressure. It operates with a male piston rod end and square shape, ideal for industrial pneumatic applications.63ActingAirboreCompressedCylinderDoubleHighIndustrialISOmalemmP1E-T063MS-0050ParkerPistonPneumaticPressureRODSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
PARKER ISO Cylinder P1E-T063MS-0050
The PARKER ISO Cylinder P1E-T063MS-0050 is a high-performance pneumatic cylinder designed for reliable operation in industrial applications. With a compact and durable construction, this cylinder is ideal for various pneumatic systems that require high pressure and precise control.
Manufacturer: PARKER
Model: P1E-T063MS-0050
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 50 mm
- Bore x Stroke: 63 x 50 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 210 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
