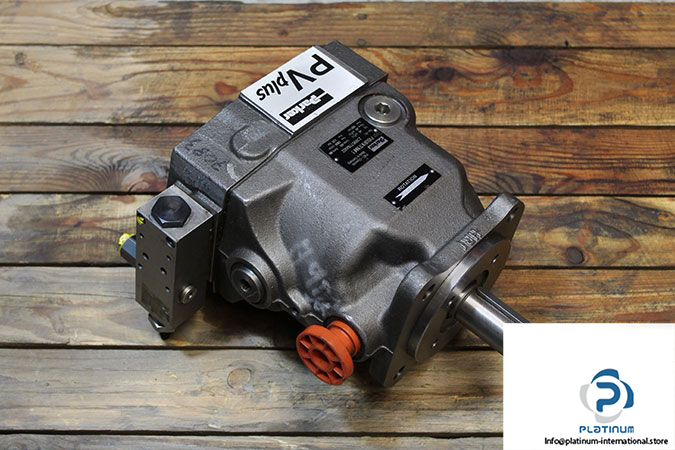

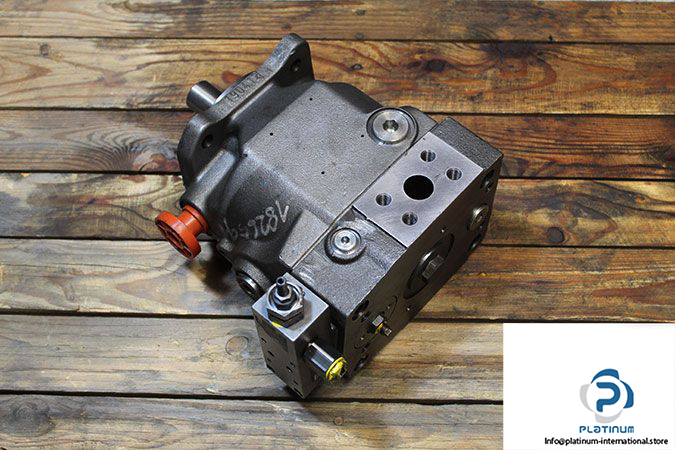

Parker PV040R1K1T1NMF1 Axial Piston Variable Pump

Manufacturer: Parker

Type: Axial Piston Variable Pump

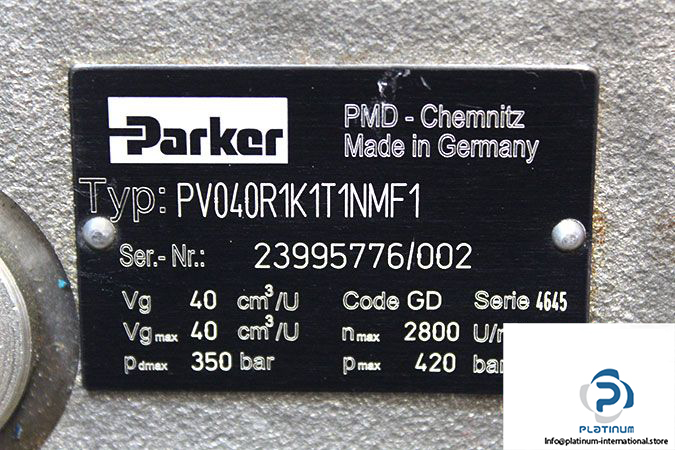

Model: PV040R1K1T1NMF1

Ser.-Nr.: 23995776/002

Size: 40

Max. Displacement: 40 cm³

Output flow at 1500 rpm: 60 l/min

Nominal Pressure: 350 bar

Max. Pressure: 420 bar

Max. Case Drain Pressure: 2 bar

Min. Inlet Pressure: 0,8 bar

Max. Inlet Pressure: 16 bar

Input Power at 1500 rpm and 350 bar: 39 kW

Max Speed: 2800 min^-1

Moment of Inertia: 0,0043 kgm²

Viscosity Range: 12 …. 150 mm²/s

Weight: 30 KG

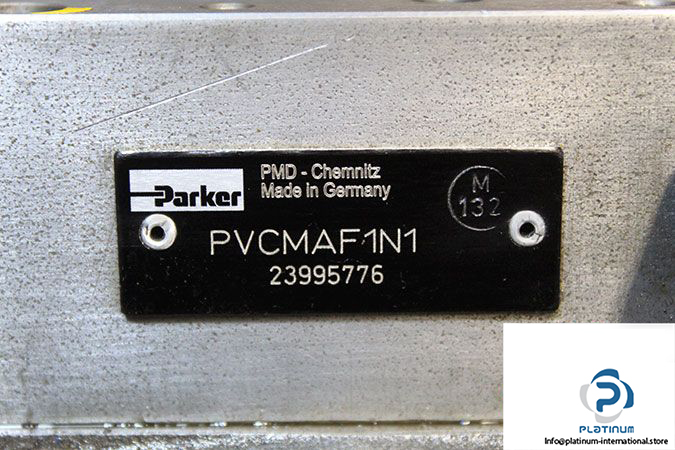

Attachment: PARKER PVCMAF1N1 COMPENSATOR

Manufacturer: Parker

Type: Compensator

Model: PVCMAF1N1
