PCT-DRS-11L Compression Connector
New
In stock20 unitsReady to ship
Compression Connector
A durable and high-frequency compression connector designed for secure installation, low signal loss, and reliable performance in RF and broadband cable systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

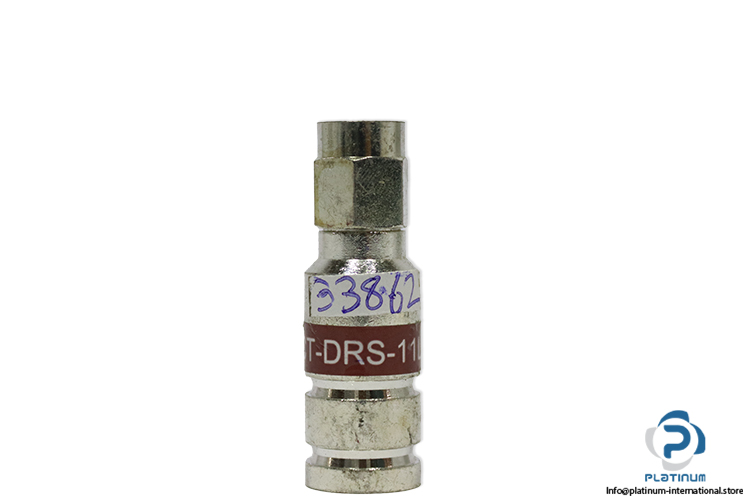

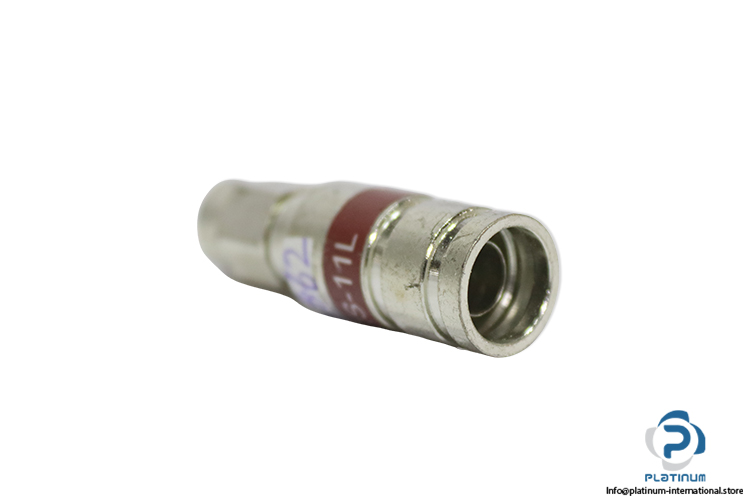

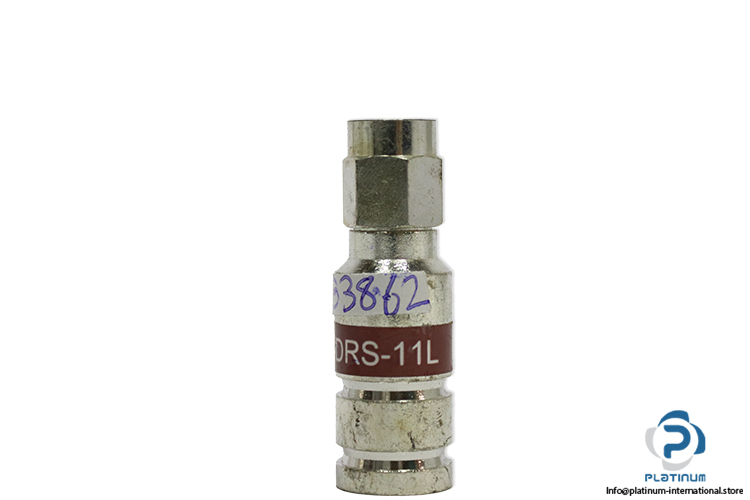

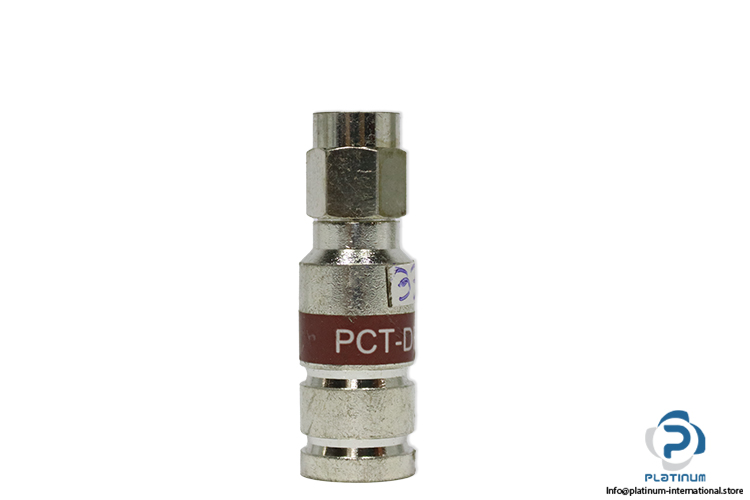

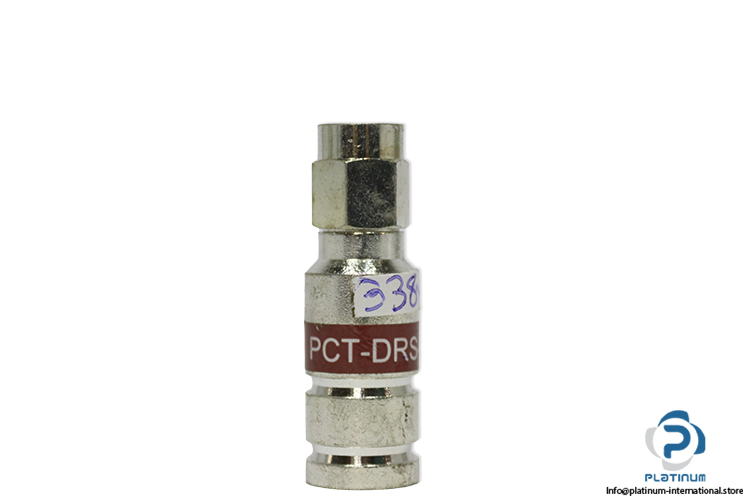

PCT-DRS-11L Compression Connector
A high-performance compression connector designed for reliable signal transmission across a wide frequency range. Engineered for professional RF, CATV, and broadband installations, this connector ensures secure cable retention, low signal loss, and long-term durability in demanding environments. Type: Compression Connector
Model: PCT-DRS-11L
Return Loss (Minimum):
| Bandwidth | 5 to 3000 MHz |
| Impedance (Nominal) | 75 Ohms |
| 5 to 1002 MHz | -30 dB |
| 1002 to 2150 MHz | -25 dB |
| 2150 to 3000 MHz | -18 dB |
| Operating Voltage | 90 V (at 60 Hz continuous AC) |
| Operating Temperature | -40 to +60 °C |
| Cable Retention | > 40 lbs (18.14 kg) |
| Cable Insertion Force | < 30 lbs (13.6 kg) maximum |
| Loosening Torque (Minimum) | 2 in-lbs |
| Construction Material | Nickel Plated Brass |
