Pekos Valves Z14TTTGV / 4 IN Ball Valve
New
In stock1 unitReady to ship
Industrial Ball Valve
Pekos Z14TTTGV industrial ball valve, 4-inch nominal size, PN 19 bar pressure rating, Class 150 RF flanged connection. Constructed with carbon steel body, AISI 316 stainless steel trim, PTFE seats, and ATEX explosion-proof certification.150194AtexBallbarCarbonCertifiedClassControlExplosionflowinchIndustrialPekospnProofRFSteelValveZ14TTTGV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

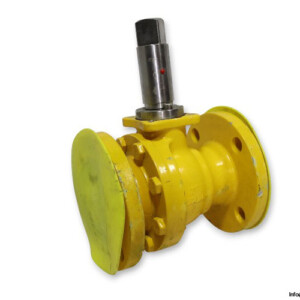

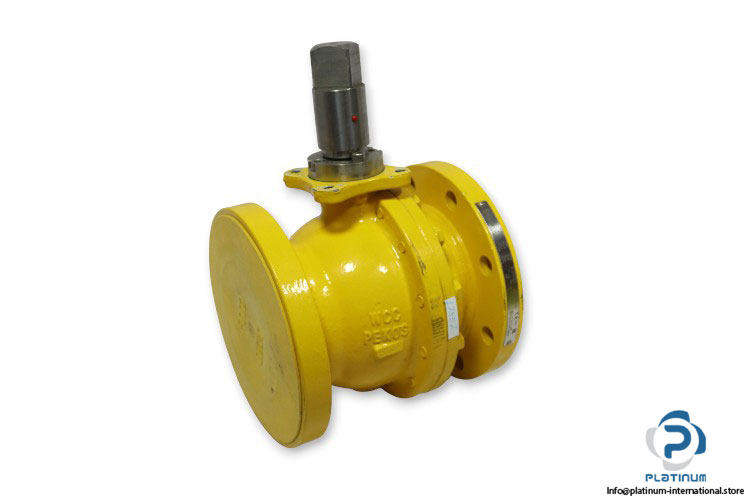

Pekos Z14TTTGV Industrial Ball Valve
The Pekos Z14TTTGV is a heavy-duty industrial ball valve designed for reliable shut-off and flow control in demanding industrial environments. Manufactured from high-quality carbon steel with stainless steel internal components, this valve is suitable for pressure systems requiring safety, durability, and explosion-proof certification.
Manufacturer: Pekos Valves
Type: Industrial Ball Valve
Model: Z14TTTGV
Serial Number: 202107000127
Part No.: CL150RF
Temperature Range:

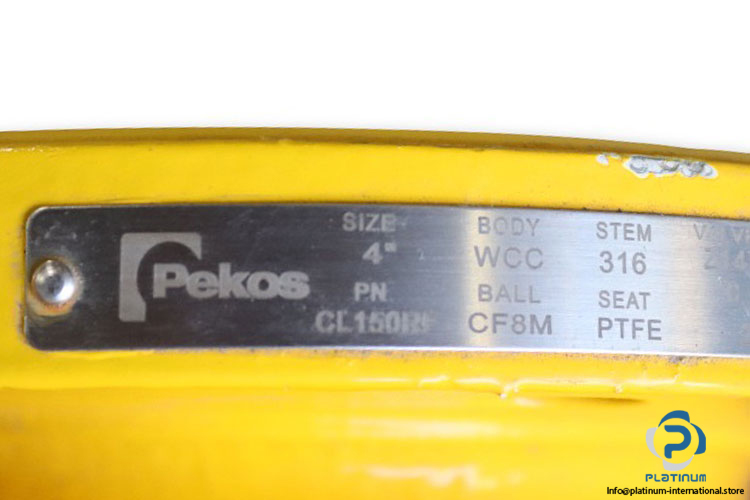

| Nominal Size | 4 IN |
| Pressure Rating | PN 19 Bar |
| Flange Rating | Class 150 RF |
| Body Material | WCC (Carbon Steel ASTM A216 WCC) |
| Ball Material | CF8M (Stainless Steel / AISI 316) |
| Stem Material | AISI 316 Stainless Steel |
| Seat Material | PTFE |
| “ Minimum | -29 °C |
| “ Maximum | +220 °C |
| Maximum Working Pressure | 19 Bar |

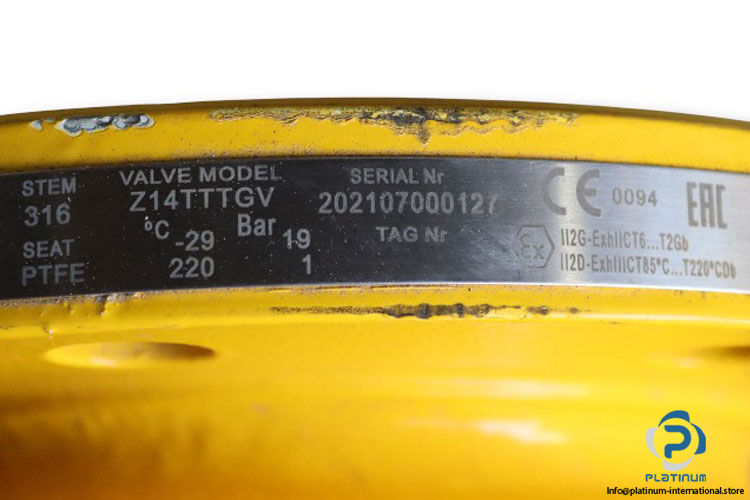

| ATEX Marking | II 2G Ex h IIC T6 / T4 Gb |
| Certification | Explosion Proof |
