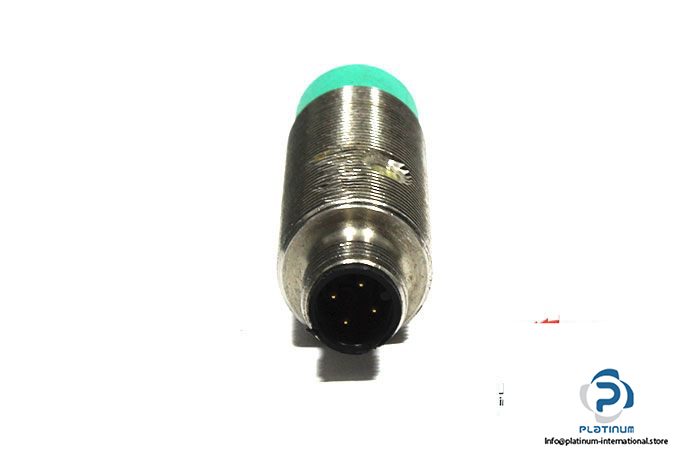

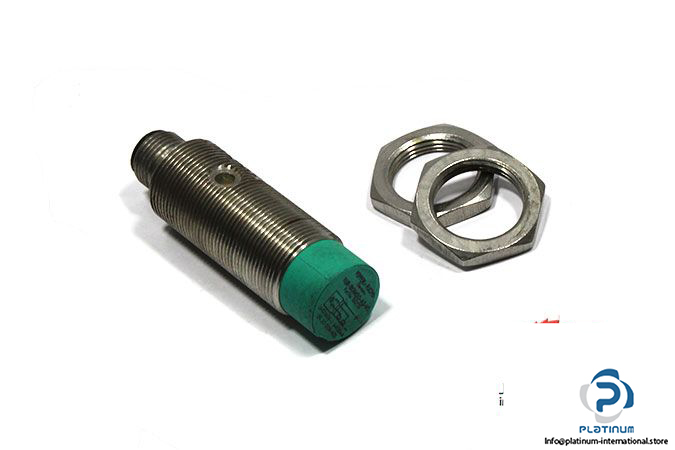

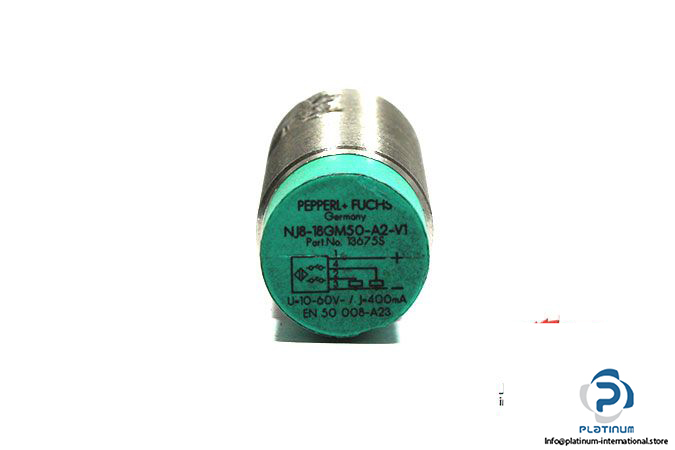

Pepperl Fuchs NJ8-18GM50-A2-V1 Inductive Sensor

Manufacturer: Pepperl+Fuchs

Type: Inductive Sensor

Model: NJ8-18GM50-A2-V1

Part No: 13675S

Rated Operating Distance: 8 mm

Assured Operating Distance: 0 … 6.48 mm

Operating Voltage: 10 … 60 V DC

Switching Current: ≤ 400 mA

No-Load Supply Current I₀: ≤ 15 mA

Voltage Drop U_d: ≤ 3 V

Signal Output: PNP

Switching Function: Complementary

Switching Frequency f: 0 … 500 Hz

Installation: Non-Flush

Protection Degree: IP67

Ambient Temperature: -25 … 70 °C

Material: Housing: Stainless Steel, Sensing Face: PBT

Connection: Connector M12 x 1 , 4-pin

Diameter, Length: 18, 65 mm

Weight: 0.05 kg
