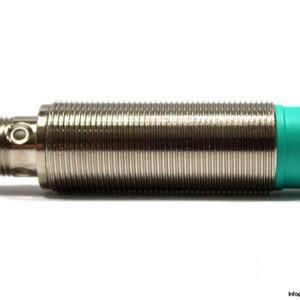

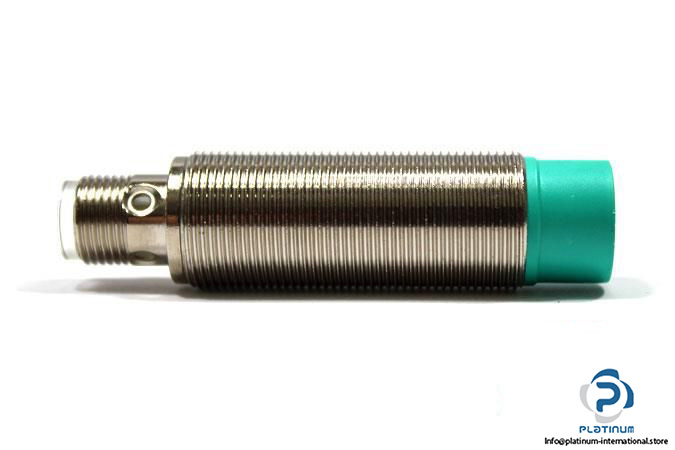

Pepperl+Fuchs 3RG4023-3AG01-PF Inductive Sensor

Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model: 3RG40233AG01PF
Part No.: 551853

Rated operating distance: 8 mm
Effective operating distance: 7.2 … 8.8 mm
Assured operating distance: 6.48 mm
Operating Voltage: 10 … 34 V DC
Operating Current: 200 mA
Switching frequency: 300 Hz

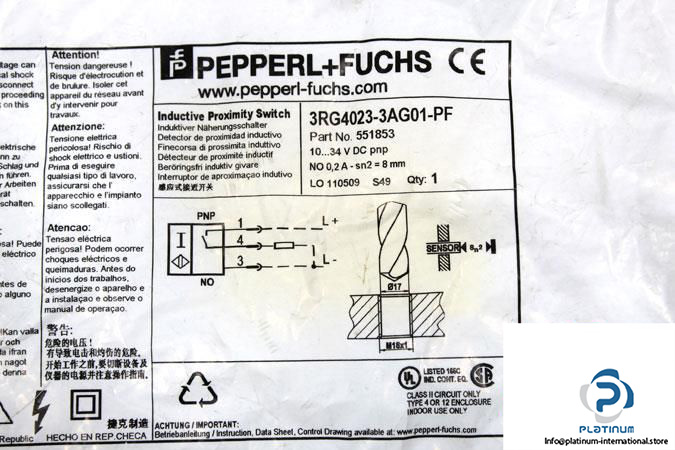

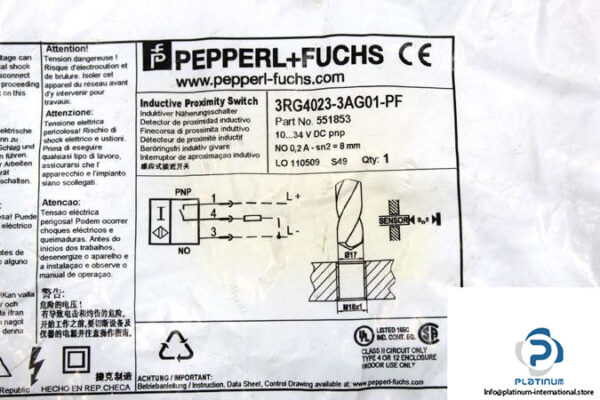

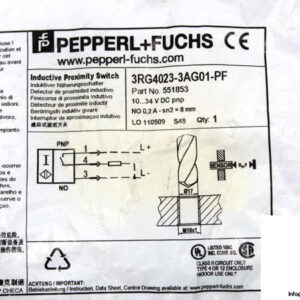

Electrical design: PNP
Switching output: Normally open

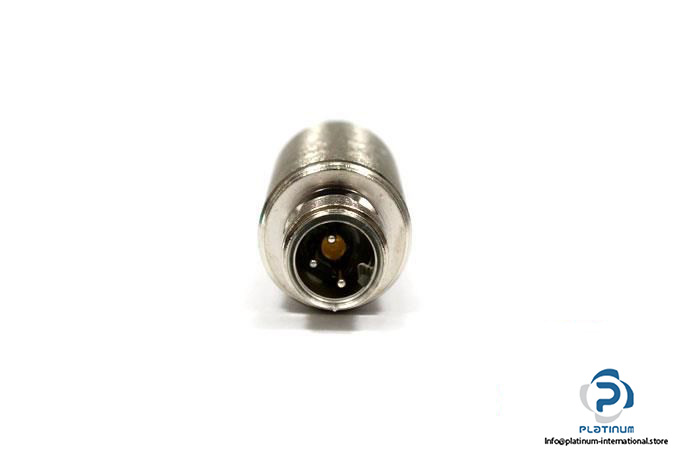

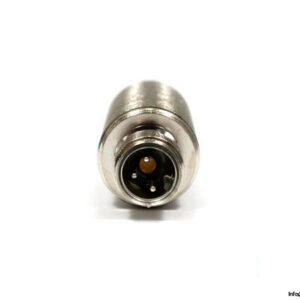

Connector type: M12 Connector, 3-pin
Enclosure rating: IP67
Ambient Operating temperature: -25 … 85°C
Diameter, housing length: 18, 55 mm
Housing material: Brass

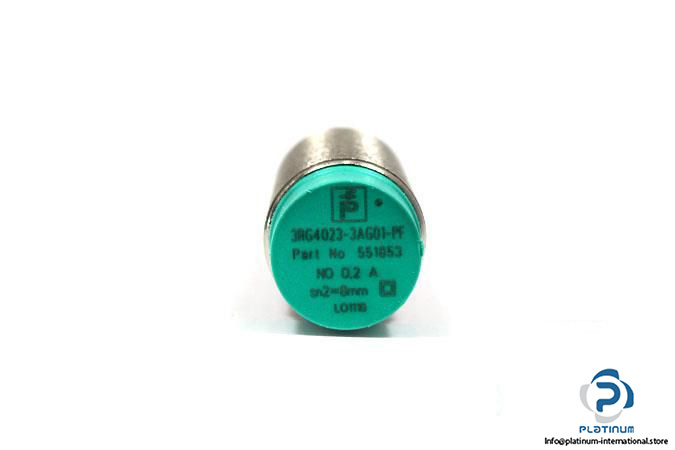

Sensing face material: PBT

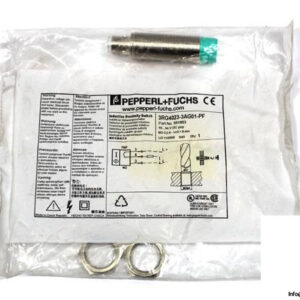

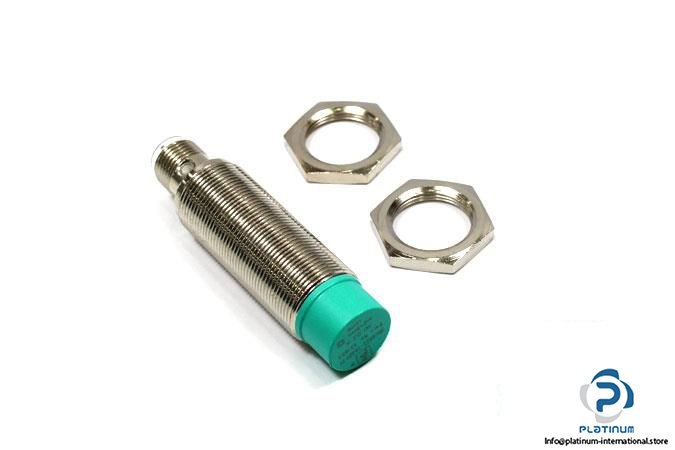

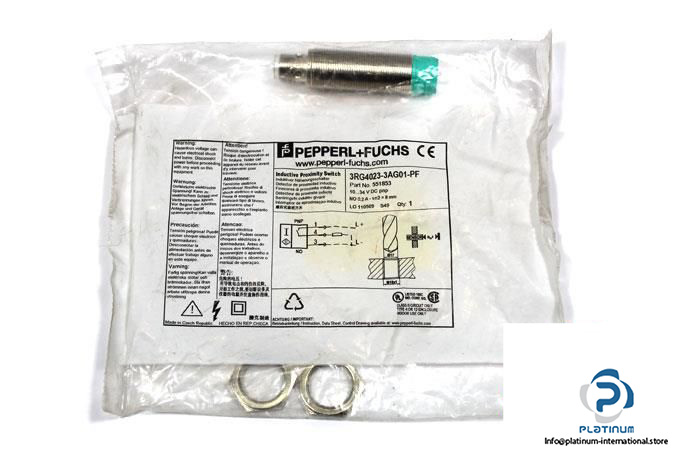

Supplied items: 2 lock nuts
Mounting: Non-flush mountable
