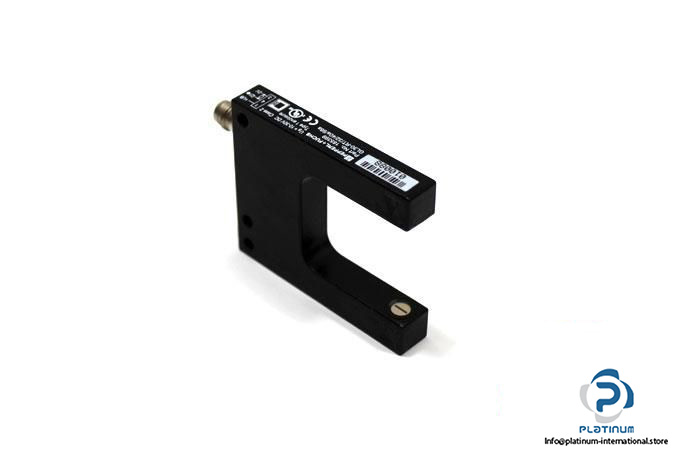

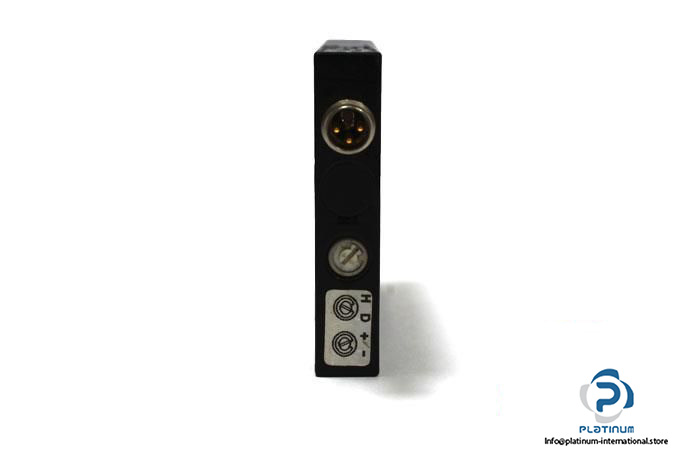

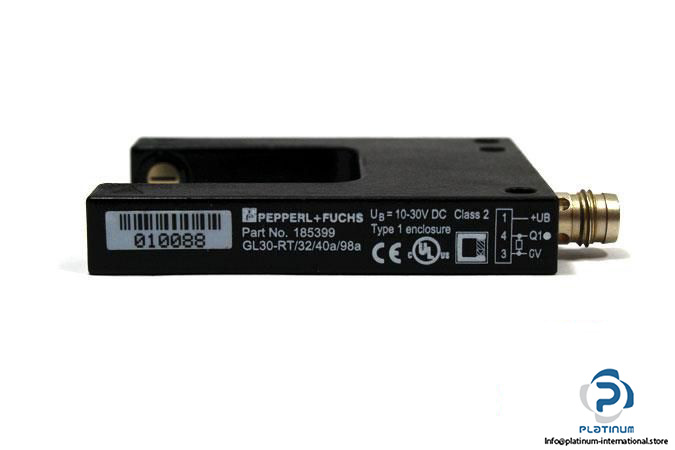

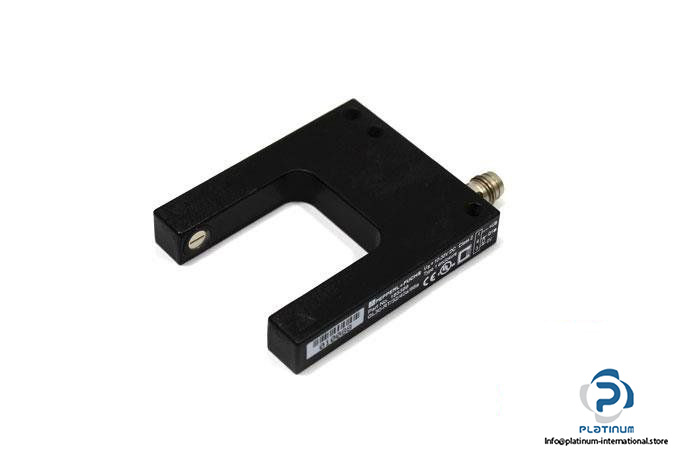

PEPPERL+FUCHS GL30-RT/32/40a/98a PHOTOELECTRIC SLOT SENSOR

Manufacturer: PEPPERL FUCHS

Type: PHOTOELECTRIC SLOT SENSOR

Model No.: GL30-RT/32/40a/98a

Part No.: 185399

Target size: 0.3 mm

Slot width: 30 mm

Slot depth: 35 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 100 mA

Electrical design: 1 NPN, short-circuit protected open collector

Switching output: Light/Dark on

Light source: LED

Type of light: modulated visible red light

Adjustment: Potentiometer

Connector type: M8 connector, 3-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -20 … 60°C

Dimensions: 50 x 10 x 60 mm

Housing material: Powder coated diecast zinc

Optical face material: Glass

Condition: New
