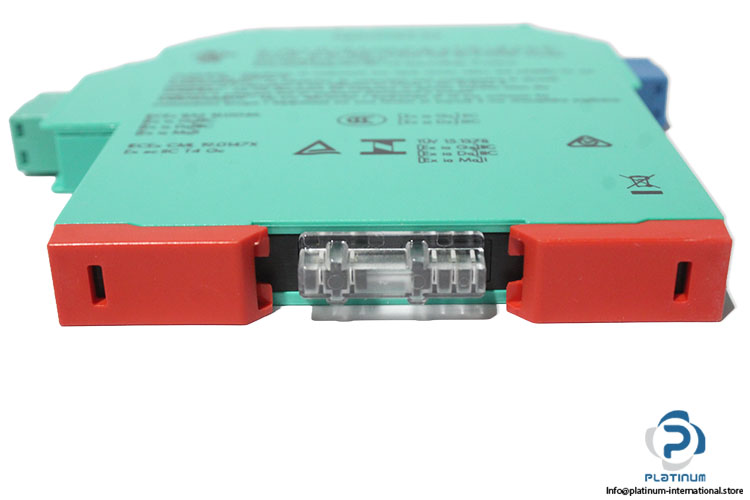

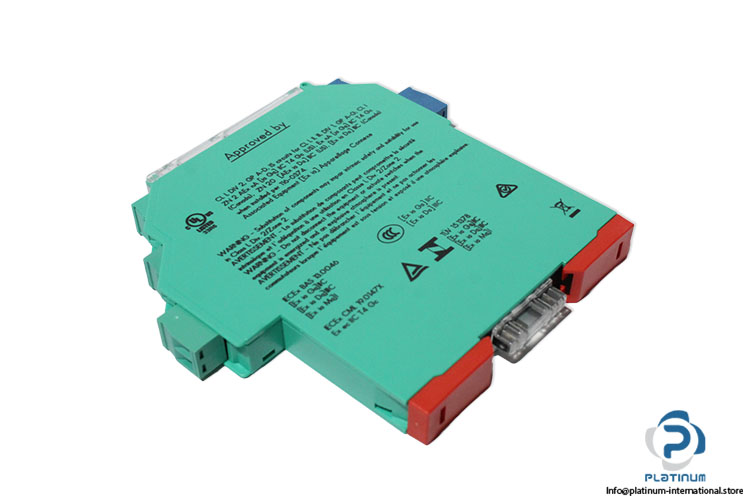

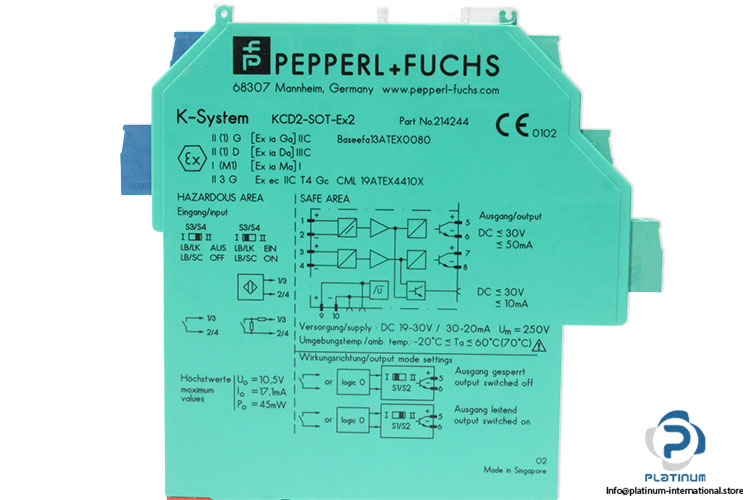

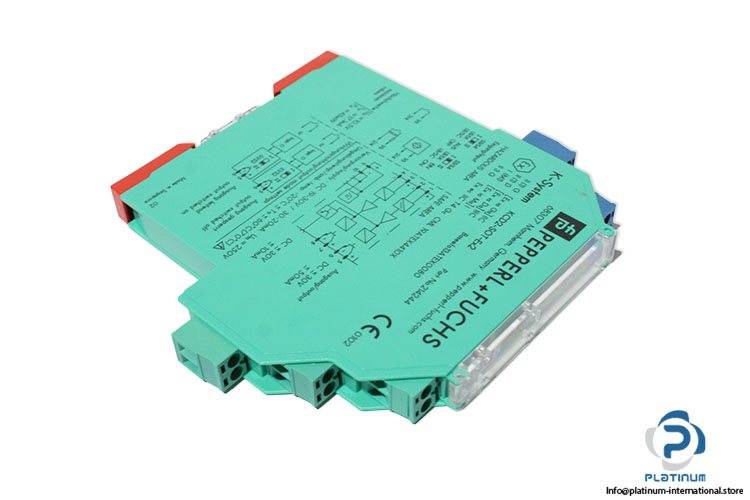

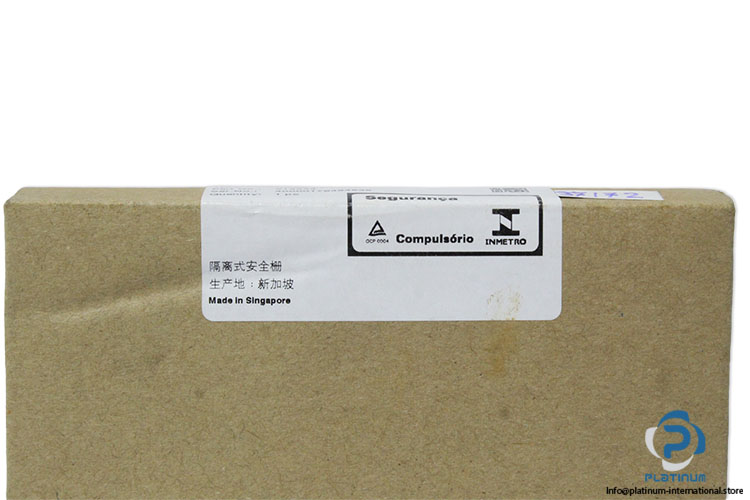

Pepperl+Fuchs KCD2-SOT-EX2 Switch Amplifier

In stock1 unitReady to ship

Switch Amplifier Pepperl+Fuchs KCD2-SOT-EX2 switch amplifier from the K-System series for intrinsically safe signal isolation and switching applications, featuring 5 kHz switching frequency, transistor output, line fault detection, and DIN rail mounting.

Manufacturer
PEPPERL+FUCHS
SKU
1097894
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.214244
Serial No.40000176494536
SeriesK-System
Input Voltage10.5 V
Input Current17.1 mA
Input Power45 mW (linear characteristic)
Input Connection sidefield side
Input Connection terminals1+, 2-; 3+, 4
Supply safe voltagemax. 253 V AC
Output safe voltagemax. 253 V AC
Switching frequency5 kHz
Switching point/switching hysteresis1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detectionbreakage I = 0.1 mA , short-circuit I = 6.5 mA Pulse/Pause ratio: min. 100 µs / min. 100 µs
Output Connection sidecontrol side
Rated voltage30 V DC
Rated current50 mA
Response time200 micro s
Signal level1-signal: (external voltage) - 3 V max. for 50 mA, 0-signal: blocked output (off-state current = 10 µA)
Output signalTransistor
Collective error messagePower Rail

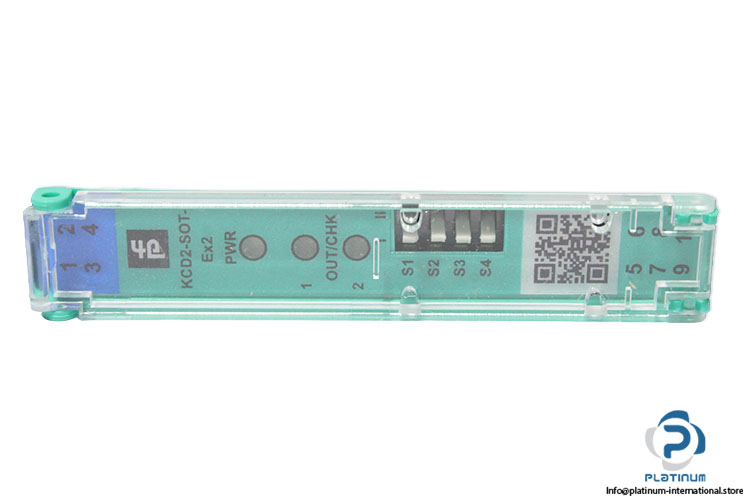

Display elementsLEDs
Mountingon 35 mm DIN mounting rail
Degree of protectionIP20
Connectionscrew terminals

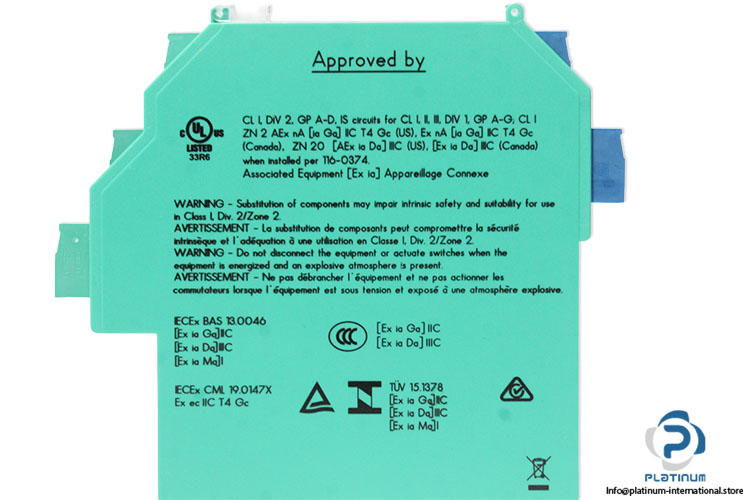

CertificateCE, cULus, ATEX, IECEx, UL and international hazardous area certifications
Ambient temperature-20 to 60 °C
Dimensions12.5 x 119 x 114 mm
ConditionNew
Stock KeyJO-004
SKU1097894
Weight0,13
