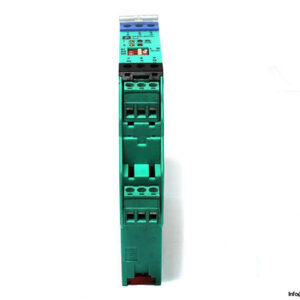

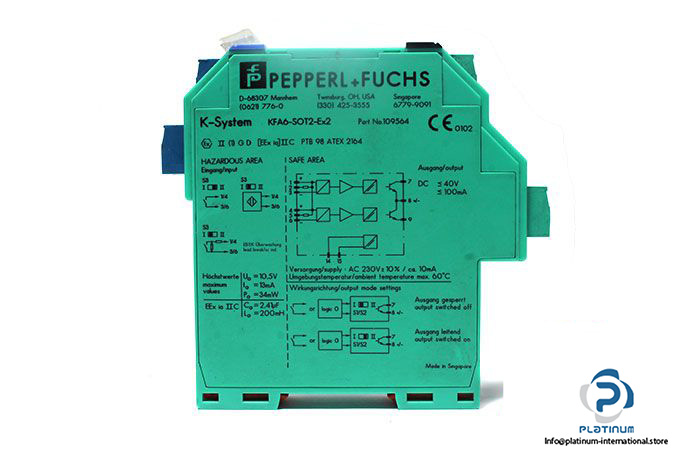

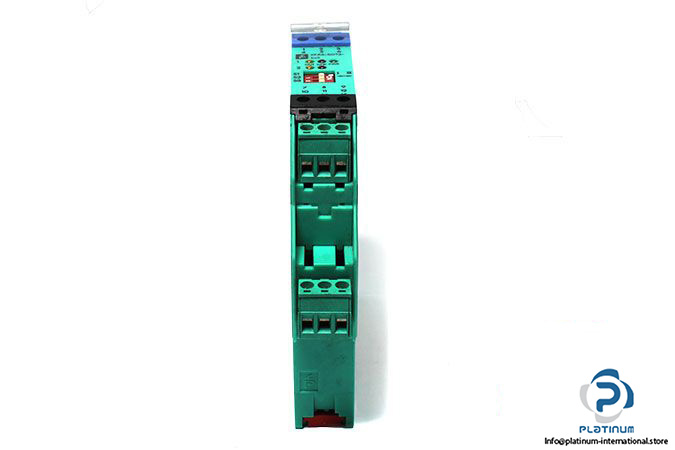

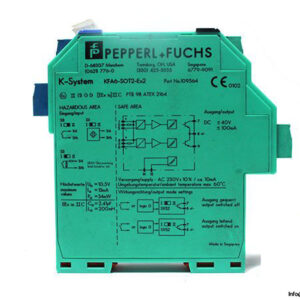

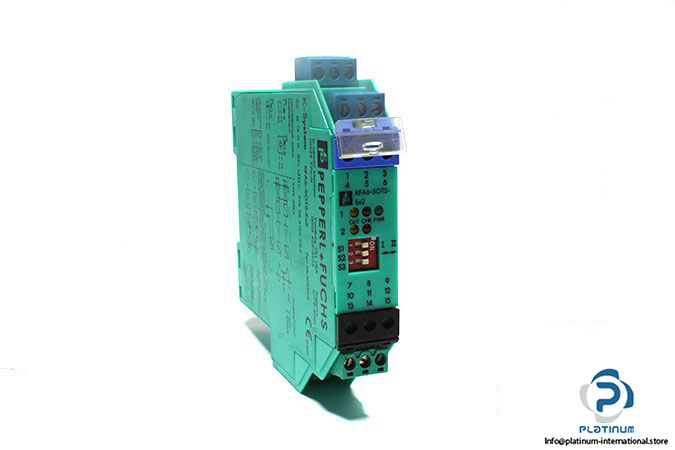

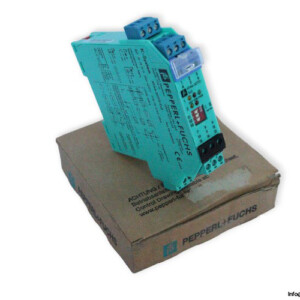

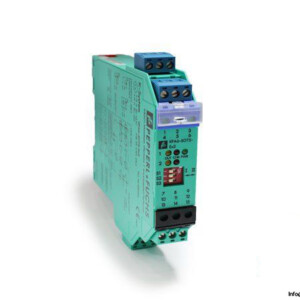

Pepperl+Fuchs KFA6-SOT2-EX2 Switch Amplifier

Manufacturer: PEPPERL+FUCHS
Type: SWITCH AMPLIFIER
Model: KFA6-SOT2-EX2
Part No.: 109564

Signal Type: Digital Input
Connection: Terminals 14, 15
Rated Voltage: 207 … 253 VAC
Power Loss: 1 W
Power Consumption: ≤ 1.5 W
Input:
Connection: Terminals 1+, 2+, 3-; 4+, 5+, 6
Open Circuit Voltage/Short-Circuit Current: Approx. 8 V DC / Approx. 8 mA
Switching Point/Switching Hysteresis: 1.2 … 2.1 mA/Approx. 0.2 mA
Lead Monitoring: Breakage I ≤ 0.1 mA, Short-Circuit I > 6 mA
Output:
Connection: Output I: Terminals 7, 8; Output II: Terminals 8, 9
Signal Level:
1-Signal: (External Voltage) – 2.5 V Max. For 10 mA or 3 V Max. For 100 mA (100 mA, Short-Circuit Proof)
0-Signal: Switched Off (Off-State Current ≤ 10 µA)
Ambient Temperature: -20 … 60 °C
Dimensions: 20 X 119 X 115 mm
Degree of Protection: IP20
