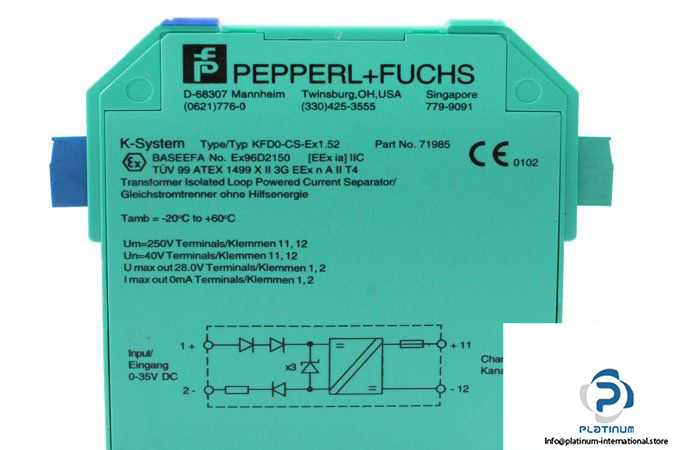

Pepperl+Fuchs KFD0-CS-EX1.52 DC Repeater Without Auxiliary Power

Manufacturer: PEPPERL+FUCHS

Type: DC REPEATER WITHOUT AUXILIARY POWER

Model: KFD0-CS-EX1.52

Part No.: 71985

Signal Type: Analog Input

Supply Voltage: loop powered

Supply Power Loss: 0.2 W

Input:

Connection: terminals 1+, 2-; 4+, 5-

Transmission range: Current range 4 … 40 mA / Voltage range 4 … 24 V DC

Output:

Connection: terminals 12-, 11+; 8-, 10-, 9+

Current: 4 … 20 mA

Voltage: 4 … 24 V DC

Safety Maximum Voltage: 250 V eff

Ambient Temperature: -20 … 60 °C

Dimensions: 20 x 107 x 115 mm

Degree of Protection: IP20

Weight: approx. 0.1 Kg
