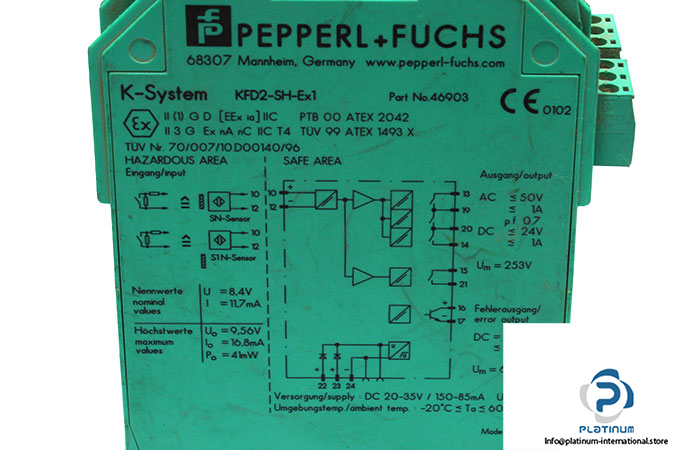

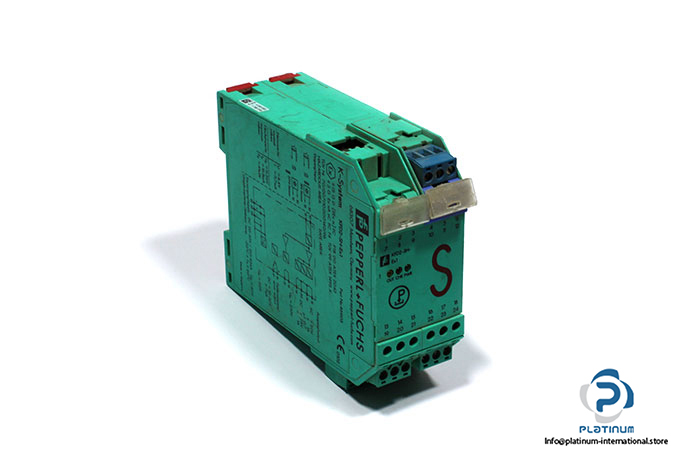

Pepperl+Fuchs KFD2-SH-EX1 Switch Amplifier

Manufacturer: PEPPERL+FUCHS

Type: Switch Amplifier

Model: KFD2-SH-EX1

Part No.: 46903

Rated voltage: 10 … 30 V DC

Signal type: Digital Input

Rated voltage: 20 … 35 V DC

Power dissipation: 2.1 W

Power consumption: max. 2.3 W

Connection side: control side

Connection: output I: terminals 13, 14 ; output II: terminals 15, 21 ; output III: terminals 16+, 17-

Output I: relay , signal

Switching frequency: 5 Hz

Temperature Range: -20 … 60 °C

Dimensions: 40 x 107 x 115 mm

Weight: 0.2 kg
