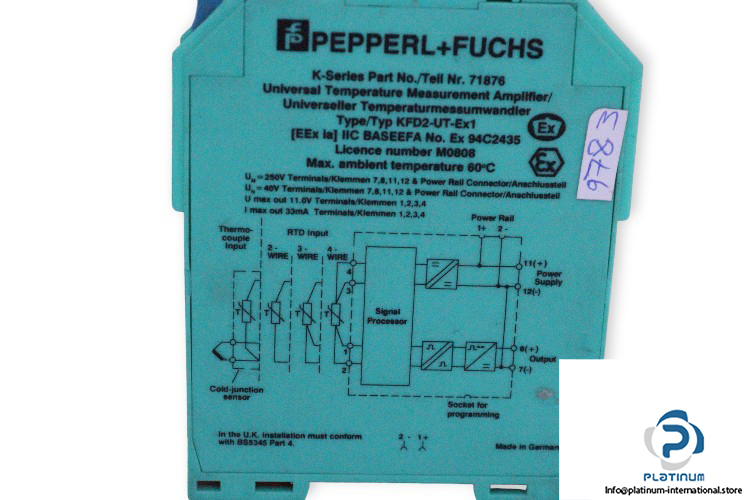

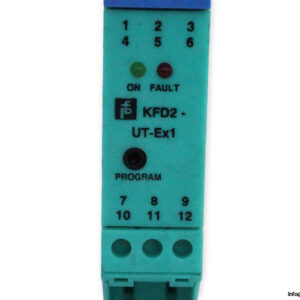

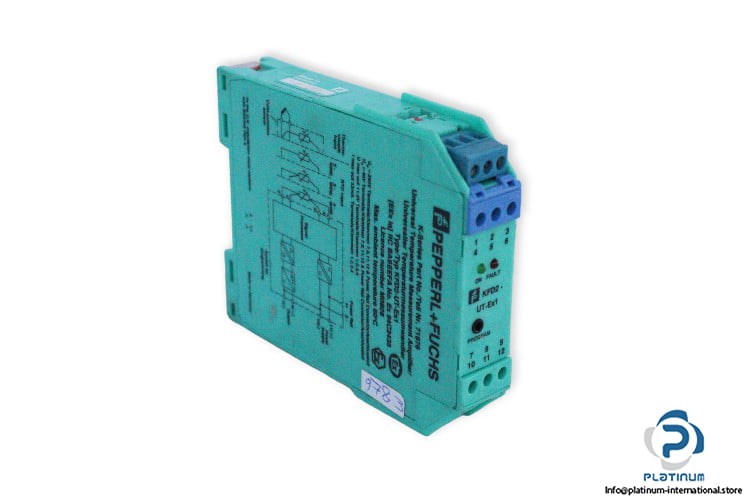

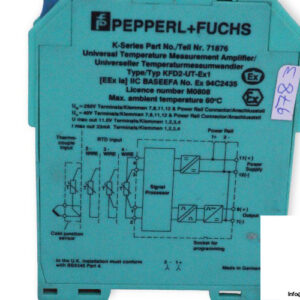

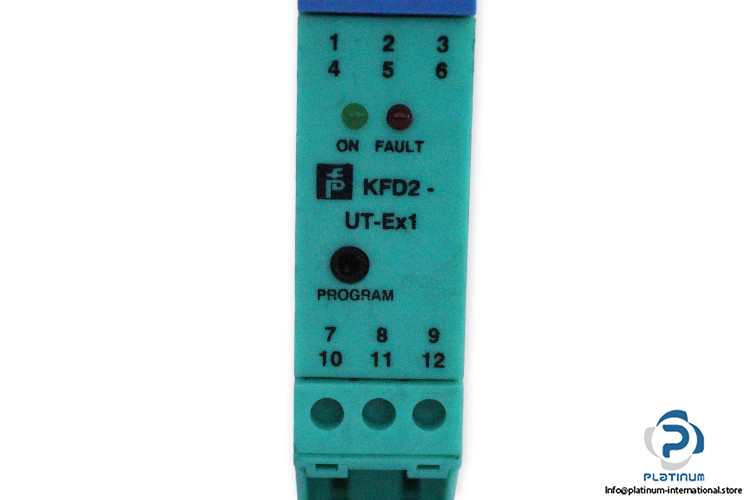

Pepperl+Fuchs KFD2-UT-EX1 71876 Switch Amplifier

Manufacture: Pepperl+Fuchs
Type: Switch Amplifier
Model: KFD2UTEX1
Part No.: 71876

Signal type: Analog input
No. of channels: 1-channel isolated barrier
Supply Voltage: 24 V DC (20 … 30 V DC)
Power Consumption: ≤ 0.98 W / 0.98 W
Connection terminals: 14+, 15- or power feed module/Power Rail
Programming interface: programming socket
Input:
Connection: terminals 1, 2, 3 and 4
Lead Resistance: ≤ 50 per Line
Output:
Connection: terminals 7-+, 8+,9-
Current range: 0 … 20 mA / 4 … 20 mA
Fault signal downscale: 0 / 2 mA, upscale 21.5 Ma
Data for application in connection with hazardous areas
Inputs terminals: 1, 2, 3, 4
Voltage Uo: 9 V
Current Io: 22 mA
Power Po: 50 mW
Maximum safe voltage Um: 250 V
Ambient Temperature: -20 … 60 °C
Degree of protection: IP20
Connection: screw terminals
Dimensions: 20 X 119 X 115 mm
Protection Degree: IP20
