PEPPERL+FUCHS KT11-50/25/98a/103 DIFFUSE MODE SENSOR
New
In stock1 unitReady to ship
Diffuse Mode Sensor
Pepperl+Fuchs diffuse mode photoelectric sensor with 0“50 mm sensing range, modulated infrared LED light, PNP output, and M8 3-pin connector in stainless steel housing with IP67 protection.0.50AutomationConnectorDiffuseFuchsIndustrialinfraredIP67KT11-50/25/98a/103M8mmModeOpticalOutputPepperlPepperl+FuchsPhotoelectricPNPSensorstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

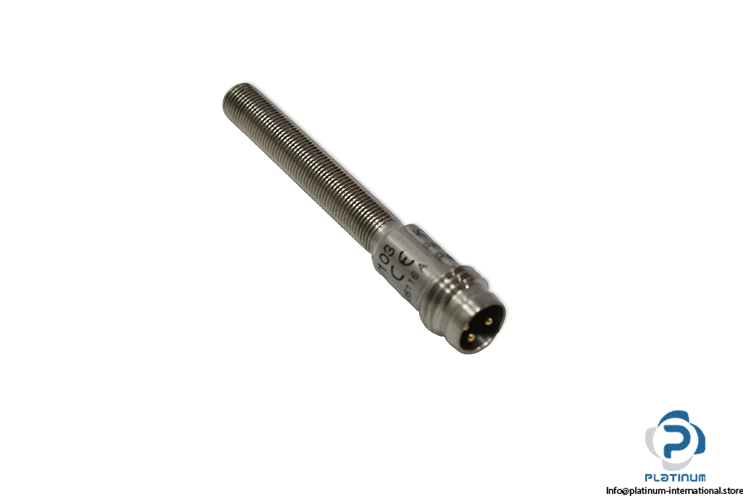

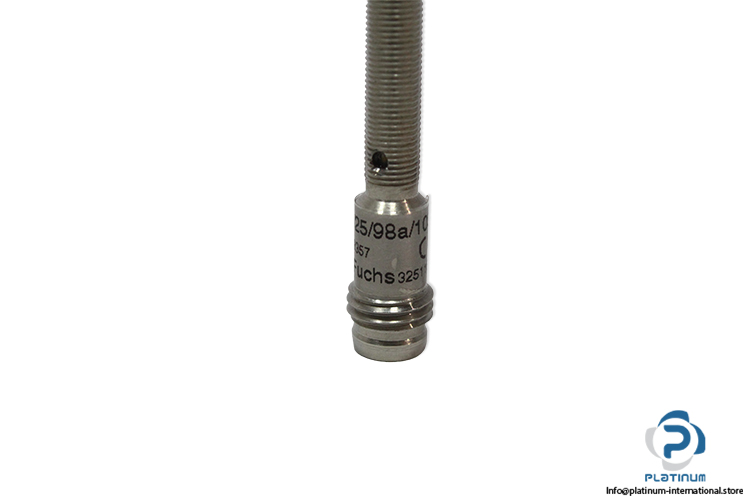

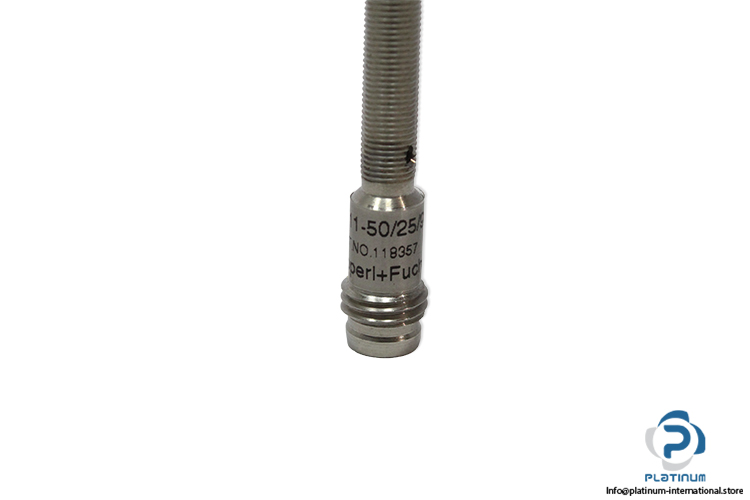

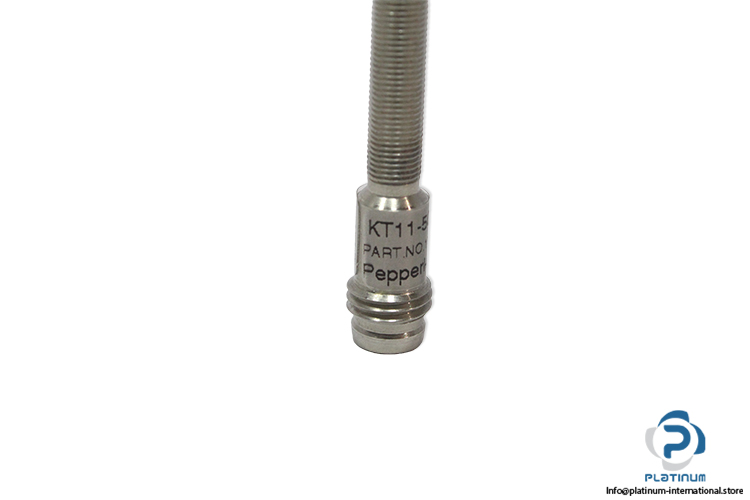

Pepperl+Fuchs KT11-50/25/98a/103 Diffuse Mode Sensor
The Pepperl+Fuchs KT11-50/25/98a/103 is a compact diffuse mode photoelectric sensor designed for reliable object detection in industrial automation systems. It uses modulated infrared LED light and provides precise sensing performance within short detection ranges.
Manufacturer: Pepperl+Fuchs
Type: Diffuse Mode Sensor
Model: KT11-50/25/98a/103
Part No.: 118357
Ref. No.: 223 023 056
Series: BES 516
| Sensing Range | 0 ... 50 mm |
| Light Source | LED |
| Light Type | Modulated Infrared Light |
| Optical Face | Frontal |
| Ambient Light Limit | 10000 Lux |
| Rated Operating Voltage | 10 / 30 V DC |
| Switching Current Max. | 100 mA |
| Switching Type | Light On |
| Contact | PNP |

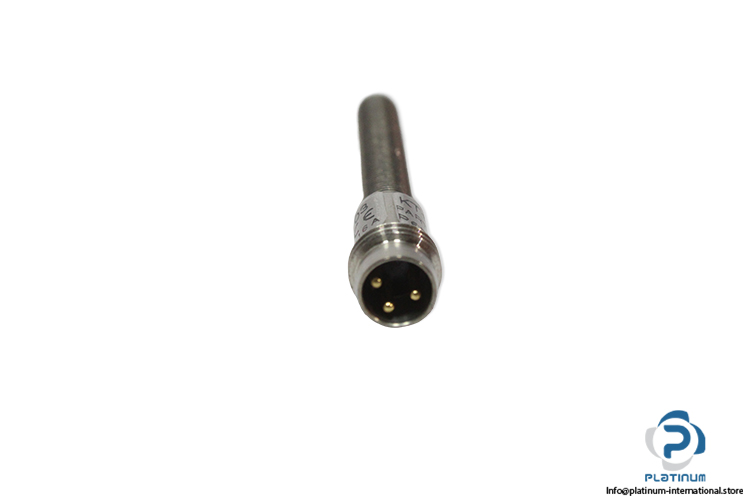

| Connection | Male Connector, M8x1, 3-Pin |
| Diameter, Length | 5, 45 mm |
| Material | Stainless Steel |
| Protection Class | IP67 |
| Ambient Temperature | 0 ... 55 °C |
