Pepperl+Fuchs NBB1.5-8GM40-E2-V3 Inductive Sensor

Name: PEPPERL+FUCHS NBB1.5-8GM40-E2-V3 INDUCTIVE SENSOR
SKU: 1100662
Availability: LimitedAvailability

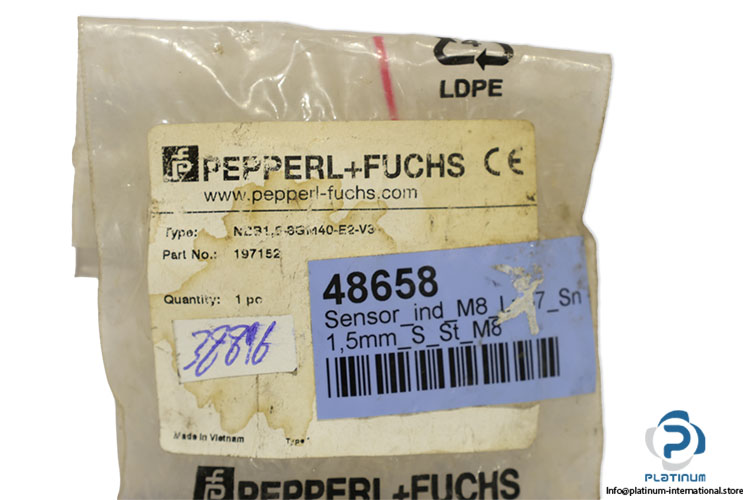

pepperl-fuchs-nbb1.5-8gm40-e2-v3-inductive-sensor(new)

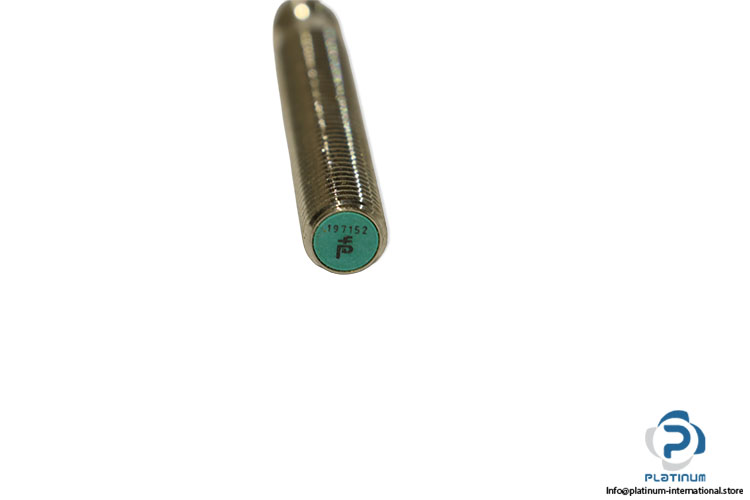

pepperl-fuchs-nbb1.5-8gm40-e2-v3-inductive-sensor(new)-1

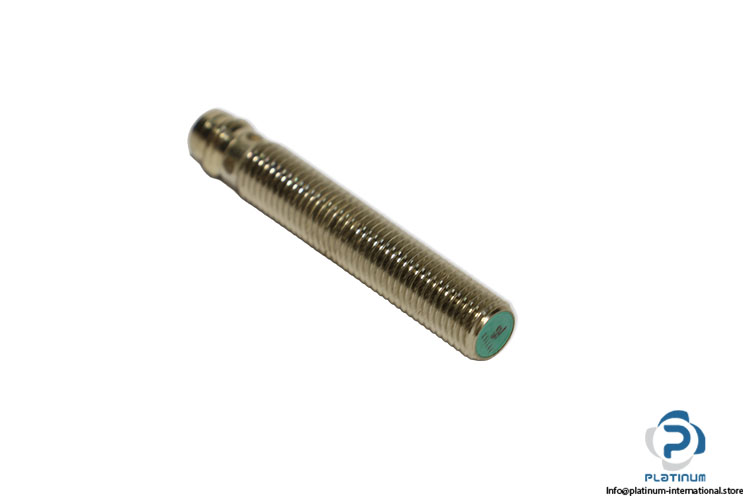

pepperl-fuchs-nbb1.5-8gm40-e2-v3-inductive-sensor(new)-2

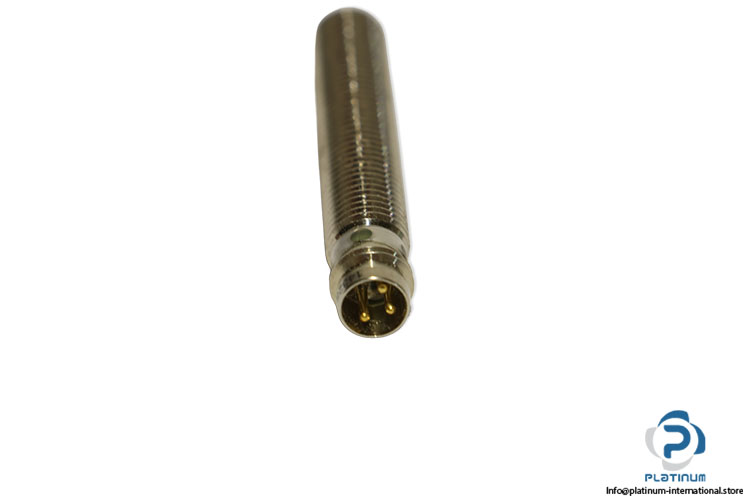

pepperl-fuchs-nbb1.5-8gm40-e2-v3-inductive-sensor(new)-3

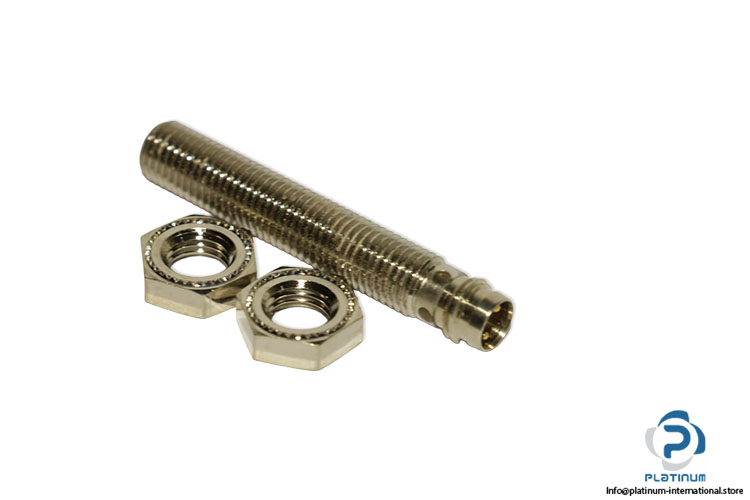

pepperl-fuchs-nbb1.5-8gm40-e2-v3-inductive-sensor(new)-4

New

In stock1 unitReady to ship

Inductive Sensor The Pepperl+Fuchs NBB1.5-8GM40-E2-V3 is a compact PNP NO inductive sensor with 1.5 mm sensing distance, designed for reliable metal detection in industrial automation applications.

Manufacturer

PEPPERL+FUCHS

SKU

1100662

Category

Sensors

Condition

New

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Part No.	197152
Ref no	48658
Switching element function	PNP NO
Rated operating distance sn	1.5 mm
Installation embeddable Output polarity	DC
Assured operating distance sa	0 ... 1.215 mm
Reduction factor rAl	0.45
Reduction factor rCu	0.35
Reduction factor rV2A	0.7
Operating voltage UB	10 ... 30 V
Switching frequency f	0 ... 3000 Hz
Hysteresis H typ.	5%
Voltage drop Ud	1.5 V
Operating current IL	0 ... 100 mA
Off-state current Ir	0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current I0	10 mA
Indication of the switching state	Multihole-LED, yellow Functional safety related parameters, MTTFd: 3970 a
Mission Time (TM)	20 a
Diagnostic	Coverage (DC) 0 %
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Connection type Device connector	M8 x 1 , 3-pin
Housing material	brass, nickel-plated
Sensing face	LCP
Protection degree	IP67
Dimensions	m8 x1 ,50
Compliance with	standards and directives Standard conformity Standards EN 60947-5-2:2007 IEC 60947-5-2:2007
Stock key	CON003
Condition	New
SKU	1100662
Weight	0,02
