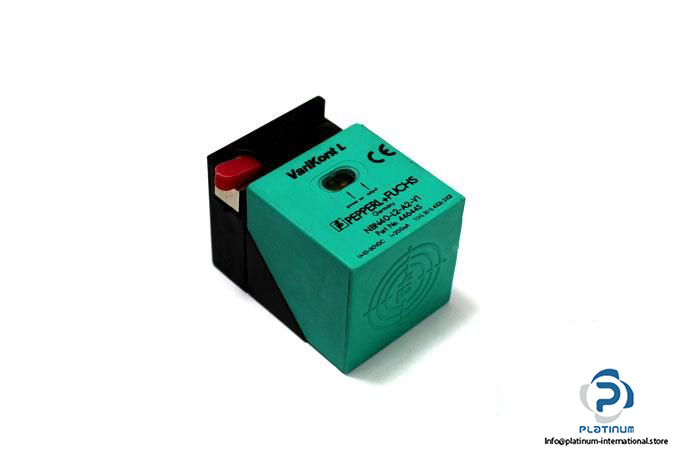

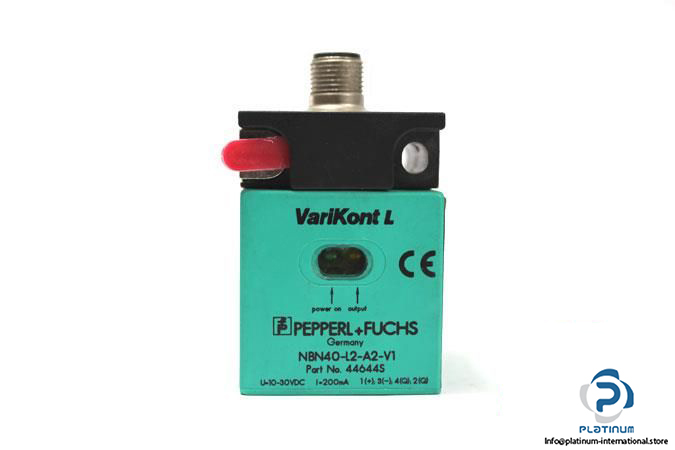

Pepperl+Fuchs NBN40-L2-A2-V1 Inductive Sensor
Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Series: VariKont L
Model: NBN40L2A2V1
Part No.: 44644S
Rated operating distance: 40 mm
Assured operating distance: 0 … 32.4 mm
Actual operating distance: 36 … 44 mm
Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Switching frequency: 0 … 180 Hz
Electrical design: PNP
Switching output: Normally open/normally closed (complementary)

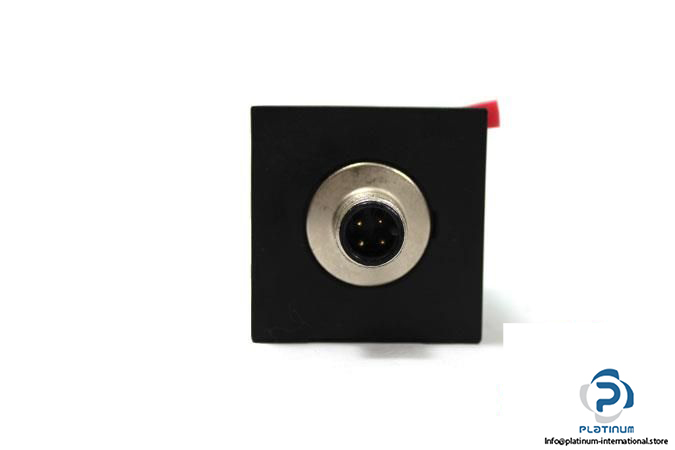

Connector type: M12 Connector, 4-pin
Protection class: II
Ambient Operating temperature: -25 … 85°C
Dimensions: 40 x 40 x 55 mm
Housing material: PA
Sensing face material: PA
Mounting: Non-flush mountable
