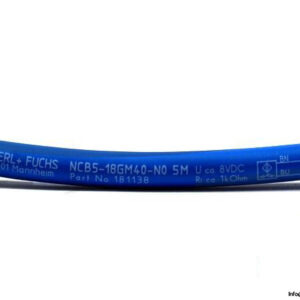

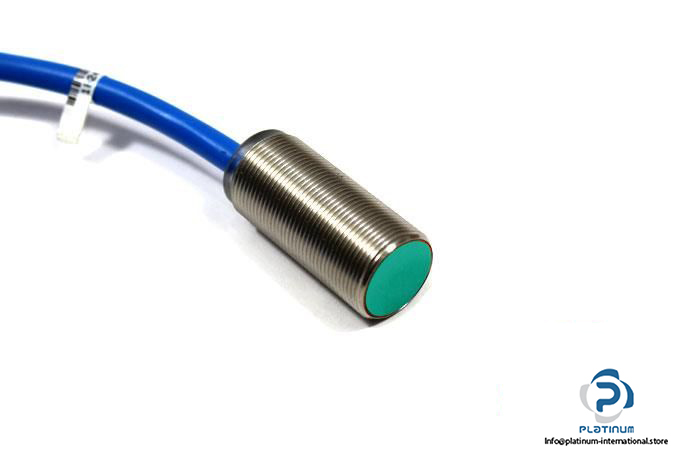

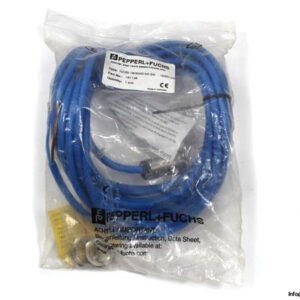

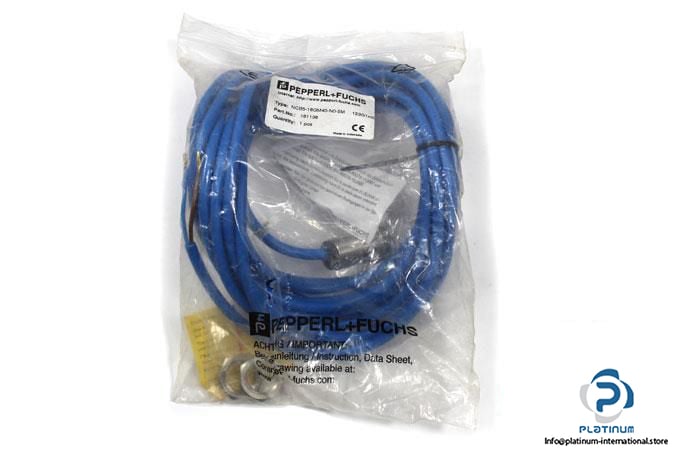

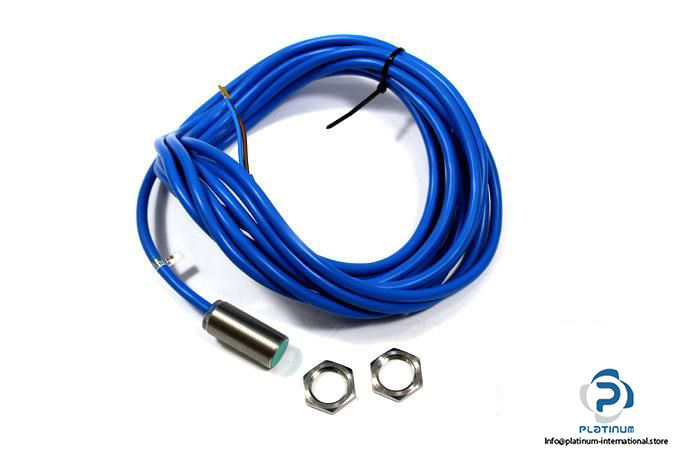

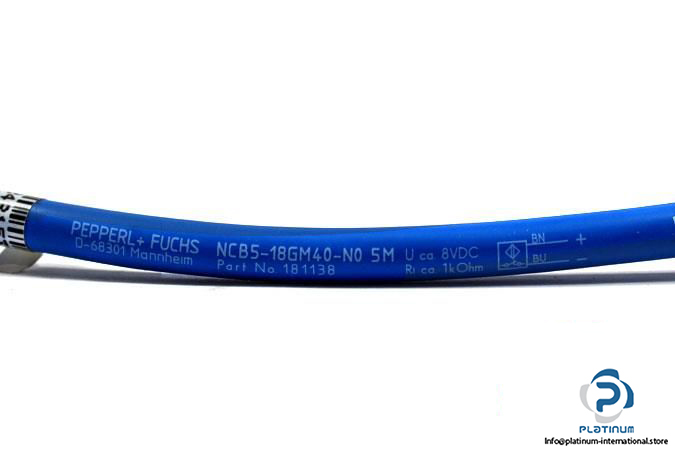

Pepperl+Fuchs NCB5-18GM40-N0-5M Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NCB518GM40N05M

Part No.: 181138

Rated Operating Distance: 5 mm

Operating Voltage: 8 V DC

Current Consumption (Measuring Plate Not Detected): ≥ 3 mA

Current Consumption (Measuring Plate Detected): ≤ 1 mA

Switching Frequency: 0 … 400 Hz

Switching Output: Normally Closed

Output Type: NAMUR

Connector Type: PVC Cable, 5 m

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 100°C

Diameter, Housing Length: 18, 40 mm

Housing Material: Stainless Steel

Sensing Face Material: PBT

Mounting: Flush-Mountable
