Pepperl+Fuchs NCN20+U1+N0 Inductive Sensor
New
In stock1 unitReady to ship
Inductive Sensor
A durable and long-range inductive sensor from the VariKont series, offering reliable metal detection, NAMUR output, and high protection rating for industrial automation environments.AutomationDetectionInductiveIndustrialIP68longMetalNamurNCN20+U1+N0Pepperl+FuchsRangeSensorSeriesVariKont
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

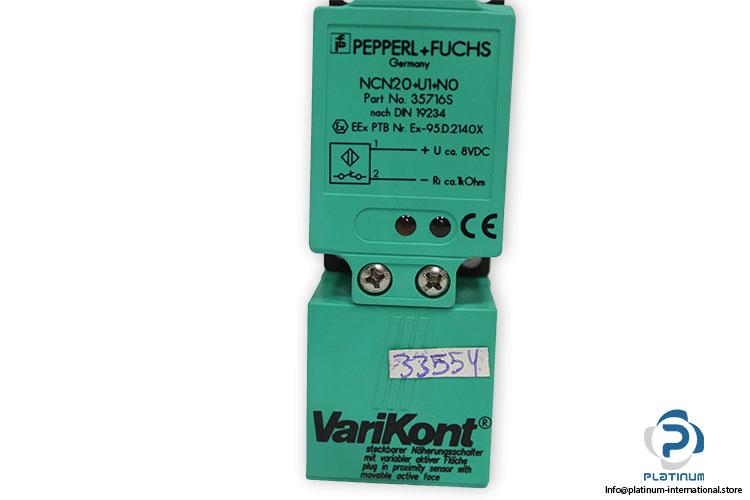

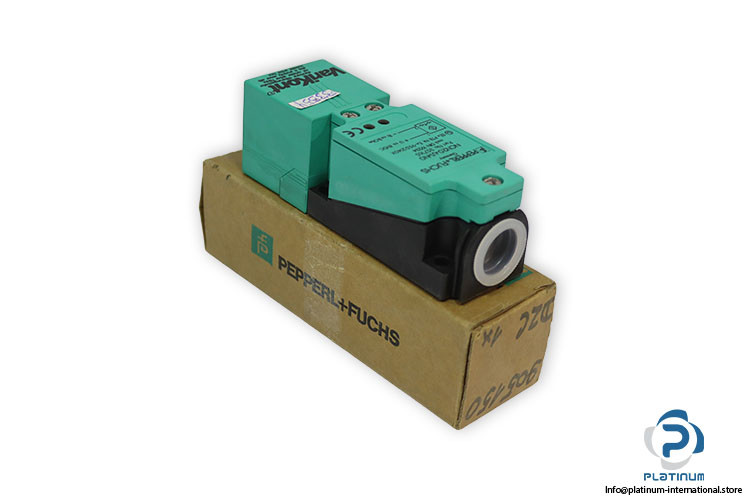

PEPPERL+FUCHS NCN20+U1+N0 Inductive Sensor
A high-performance VariKont series inductive sensor designed for precise metal detection, extended sensing distance, and reliable operation in demanding industrial environments. Ideal for automation, control systems, and safety monitoring applications. Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NCN20+U1+N0
Part No.: 35716S
Series: VariKont
| Switching Function | Normally Closed (NC) |
| Output Type | NAMUR |
| Rated Operating Distance (sn) | 20 mm |
| Installation | Non-flush |
| Assured Operating Distance (sa) | 0 ... 16.2 mm |
| Actual Operating Distance (sr) | 18 ... 22 mm |
| Reduction Factor rAl | 0.37 |
| Reduction Factor rCu | 0.35 |
| Reduction Factor r304 | 0.79 |
| Output Type | 2-wire |
| Operating Voltage (UB) | 8 V |
| Switching Frequency (f) | 0 ... 250 Hz |
| Hysteresis | 1 ... 15%, typ. 5% |
| Reverse Polarity Protection | Reverse polarity tolerant |
| Current Consumption (Plate Not Detected) | min. 3 mA |
| Current Consumption (Plate Detected) | ‰¤ 1 mA |
| Switching State Indicator | LED, Yellow |
| Standards | EN 60947-5-6:2000, IEC 60947-5-6:1999 |
| Ambient Temperature | -25 ... 100 °C |
| Connection Type | Screw terminals, M20 x 1.5 cable gland, usable thread length 9.1 mm, screw-in depth max. 9.1 mm |
| Housing Material | PBT |
| Sensing Face | PBT |
| Degree of Protection | IP68 |
| Dimensions | M20 x 118 mm |
| Explosion Proof Standard | DIN 19234 |
