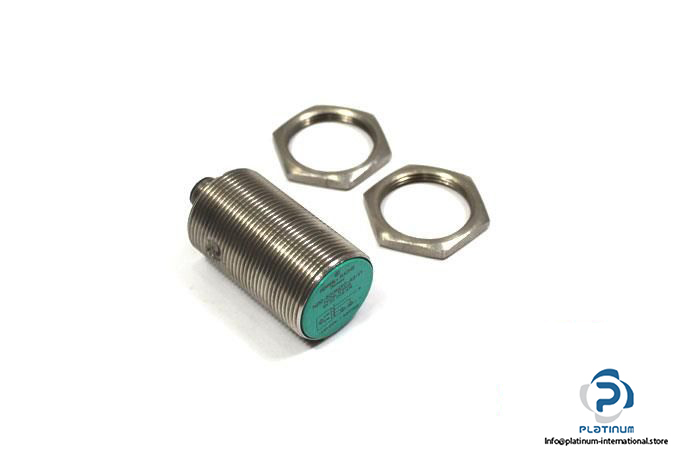

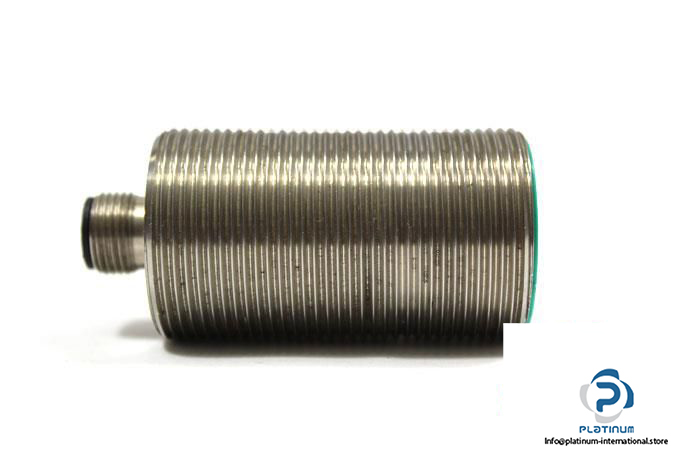

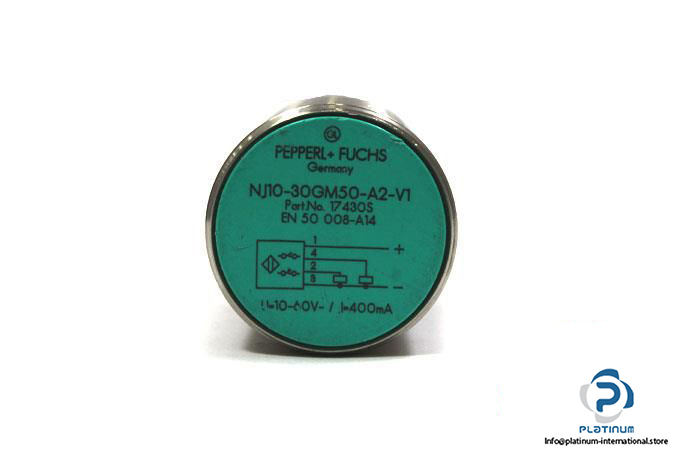

Pepperl+Fuchs NJ10-30GM50-A2-V1 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ1030GMA2V1

Part No.: 17430S

Rated operating distance: 10 mm

Assured operating distance: 0 … 8.1 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 400 mA

Switching frequency: 0 … 300 HZ

Electrical design: PNP

Switching output: Normally open/Normally closed

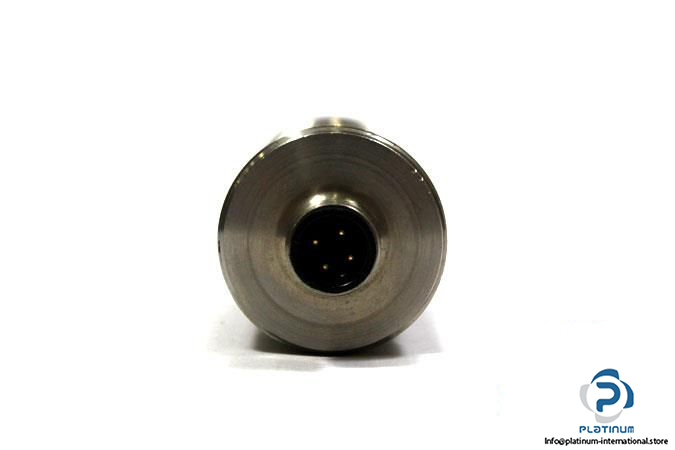

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 30, 50 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Flush-mountable

Condition: Used
