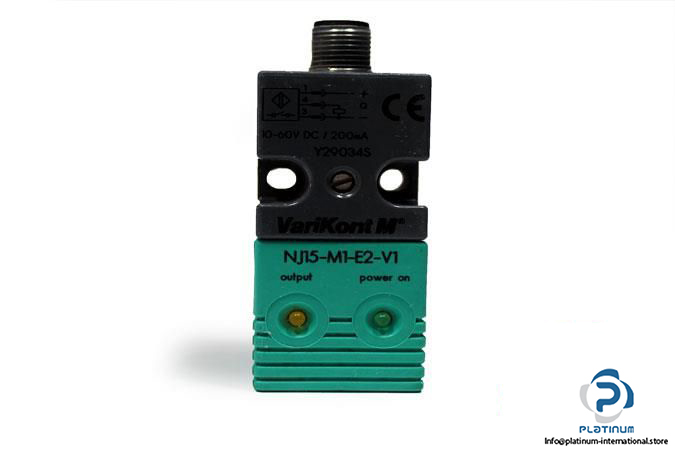

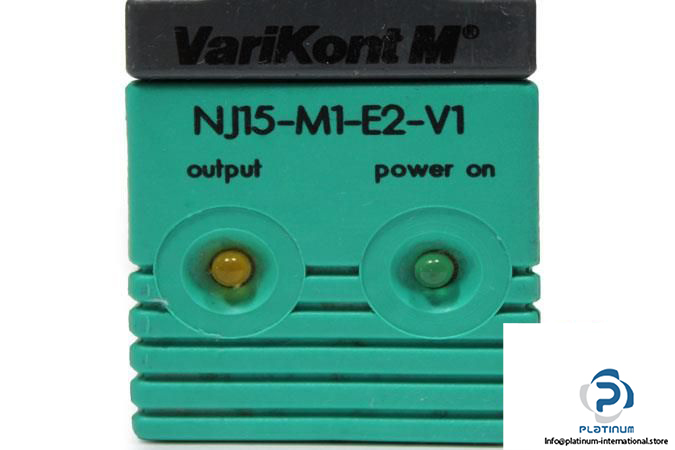

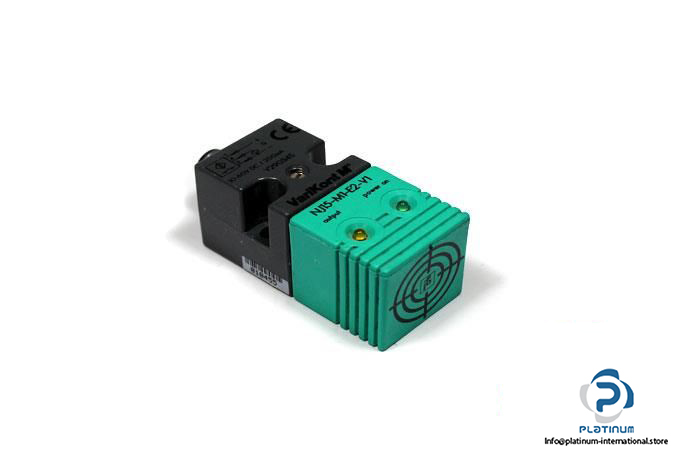

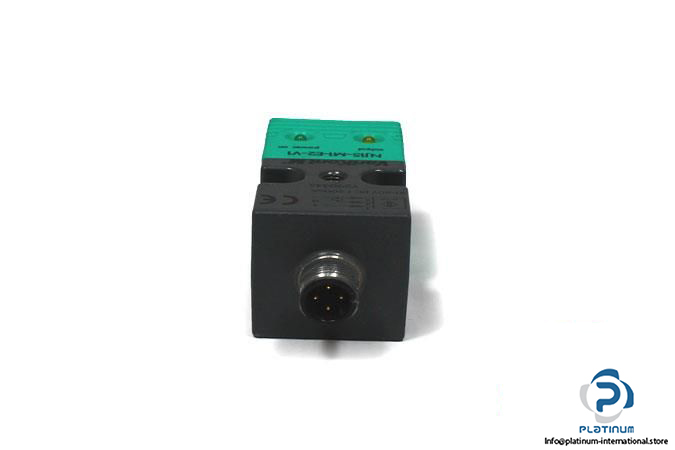

Pepperl+Fuchs NJ15-M1-E2-V1 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont M

Type: INDUCTIVE SENSOR

Model No.: NJ15-M1-E2-V1-Y29034S

Rated operating distance: 15 mm

Assured operating distance: 0 … 12.15 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching frequency: 0 … 200 Hz

Electrical design: PNP

Switching output: Normally open

Connector type: M12 Connector, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Dimensions: 30 x 30 x 62 mm

Housing: Rectangular

Housing material: PBT

Sensing face material: PBT

Condition: New
