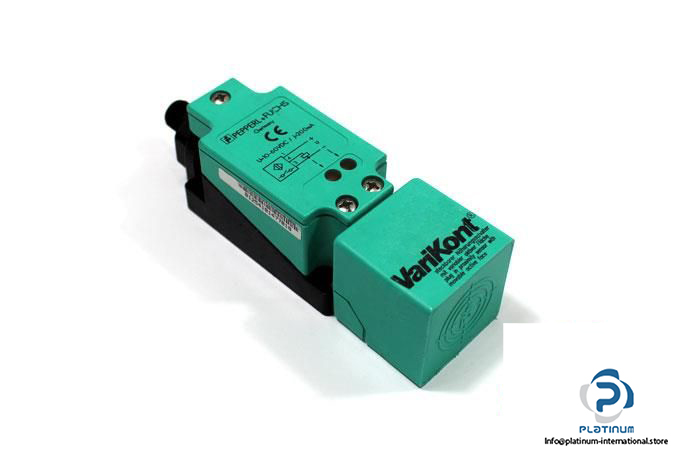

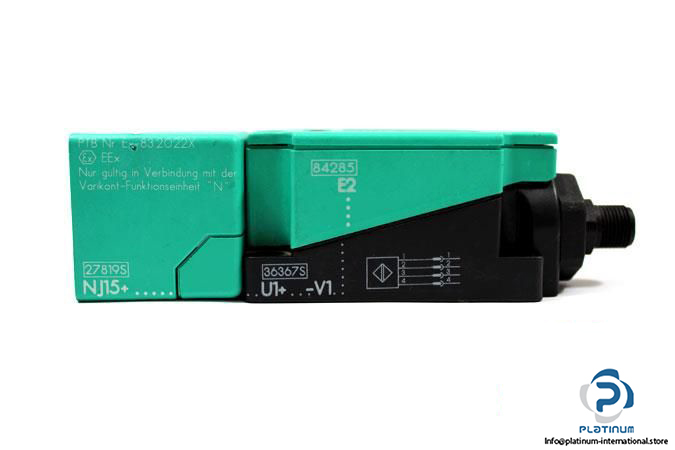

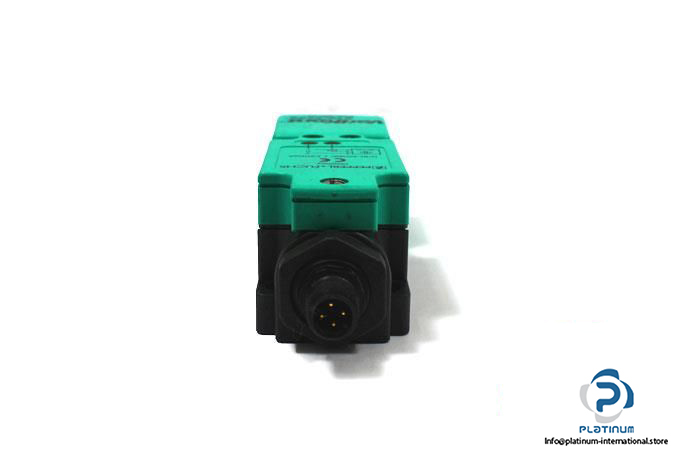

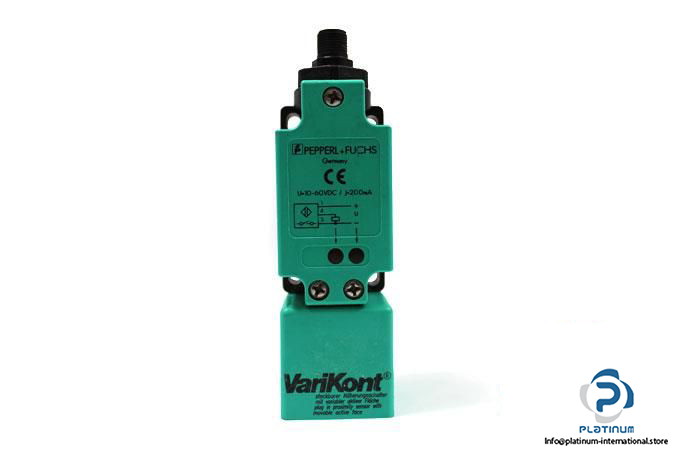

Pepperl+Fuchs NJ15+U1+E2-V1 Inductive Sensor
Manufacturer: PEPPERL FUCHS
Series: VariKont
Type: Inductive Sensor
Model: NJ15U1E2V1
Rated operating distance: 15 mm
Assured operating distance: 0 … 12.15 mm
Operating Voltage: 10 … 60 V DC
Operating Current: 0 … 200 mA
Switching frequency: 0 … 150 Hz
Electrical design: PNP
Switching output: Normally open
Connector type: M12 Connector, 4-pin
Protection class: II
Enclosure rating: IP68
Ambient Operating temperature: -25 … 70°C
Dimensions: 40 x 40 x 118 mm
Housing material: PBT
Sensing face material: PBT
