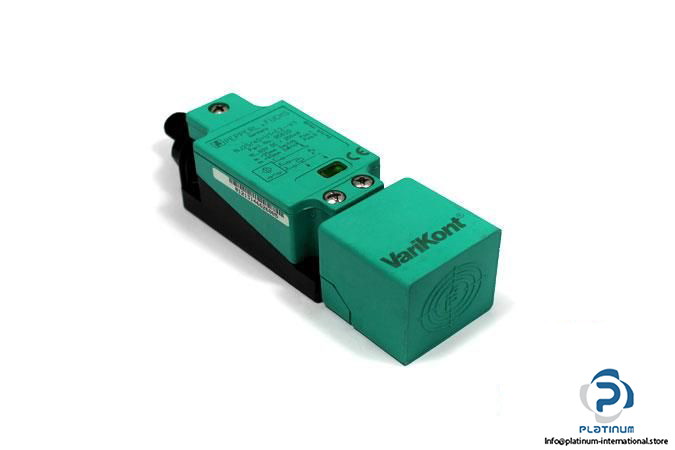

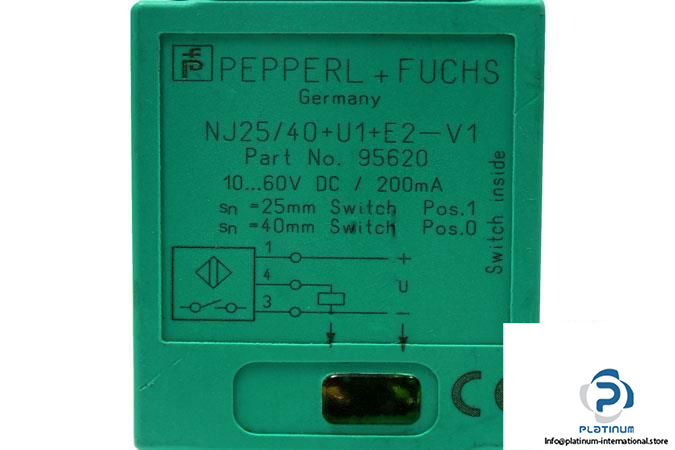

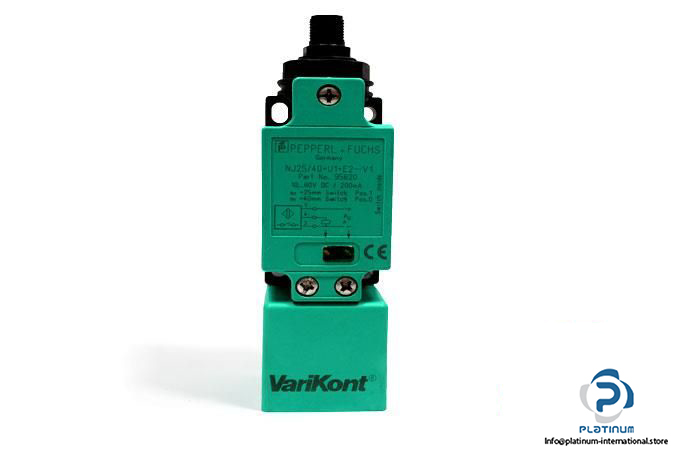

Pepperl+Fuchs NJ25/40+U1+E2-V1 Inductive Sensor

Manufacturer: PEPPERL FUCHS
Series: VariKont
Type: Inductive Sensor
Model No.: NJ25/40U1E2V1
Part No.: 95620

Rated operating distance: 25 mm / 40 mm selectable
Assured operating distance: 0 … 12.15 mm / 0 … 32.4 mm
Operating Voltage: 10 … 60 V DC
Operating Current: 200 mA
Switching frequency: 0 … 150 Hz
Electrical design: PNP
Switching output: Normally open

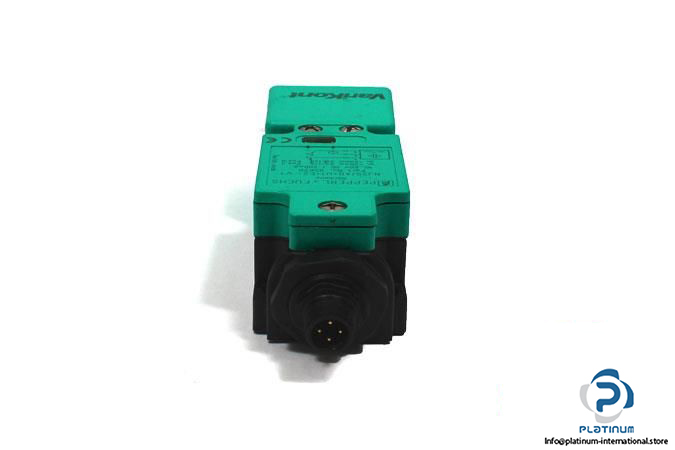

Connector type: M12 Connector, 4-pin
Enclosure rating: IP67
Ambient Operating temperature: -25 … 75°C
Dimensions: 40 x 40 x 118 mm
Housing: Rectangular
Housing material: PBT
Sensing face material: PBT
Mounting: Non-flush mountable
