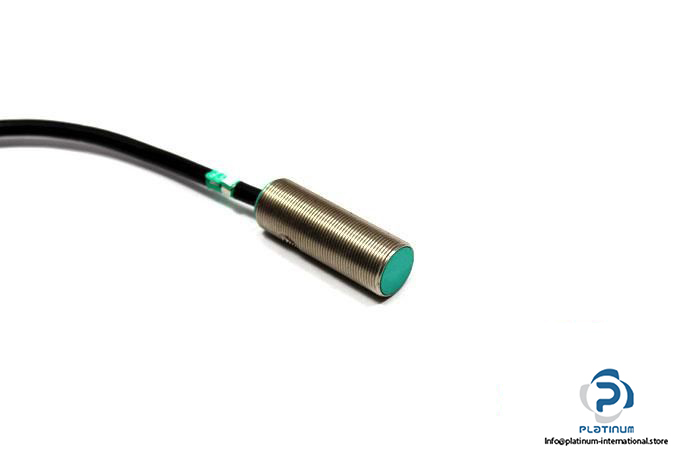

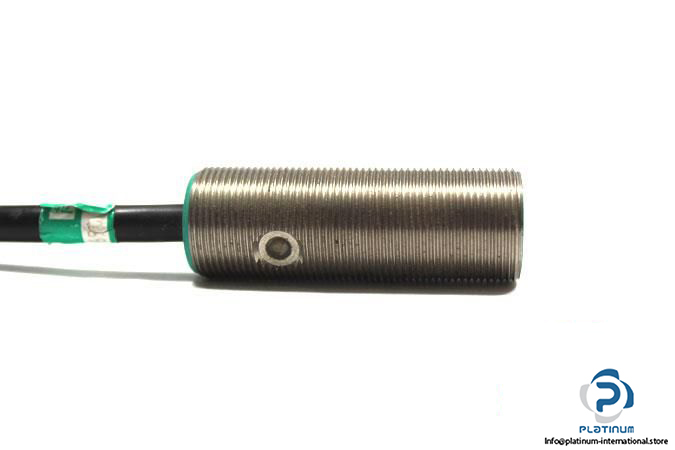

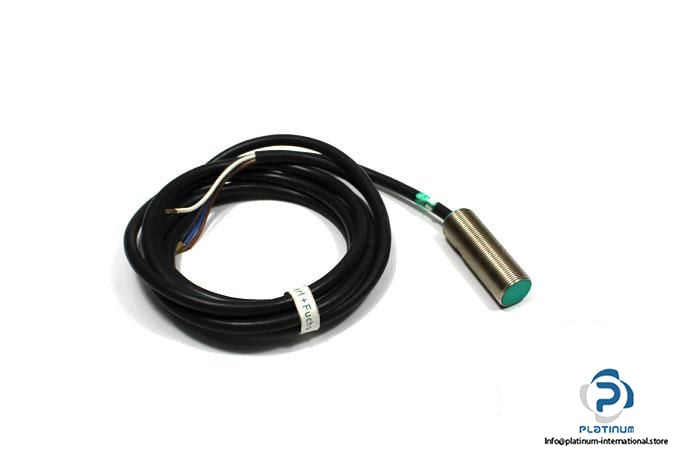

Pepperl+Fuchs NJ5-18GM50-A2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ518GM50A2

Part No.: 15003S

Rated operating distance: 5 mm

Assured operating distance: 0 … 4.05 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 400 mA

Switching frequency: 0 … 500 HZ

Electrical design: PNP

Switching output: Normally open/Normally closed

Connector type: PVC cable, 2 m

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 18, 50 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Flush-mountable

Condition: New
