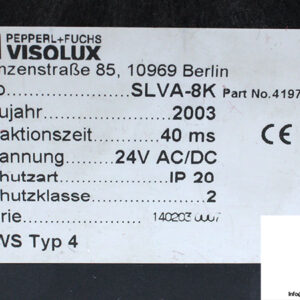

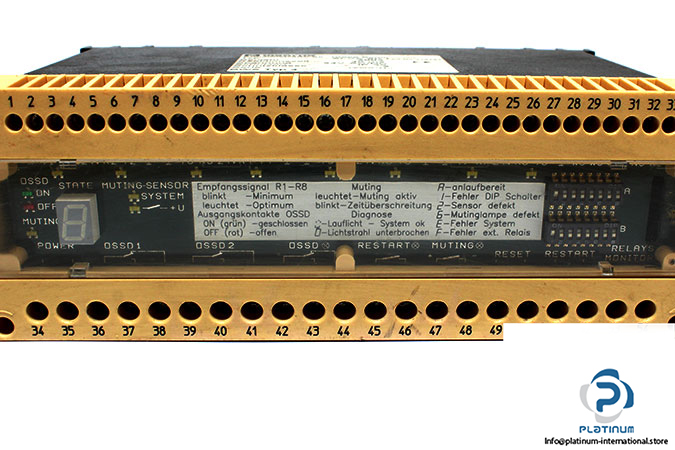

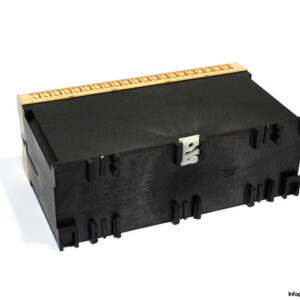

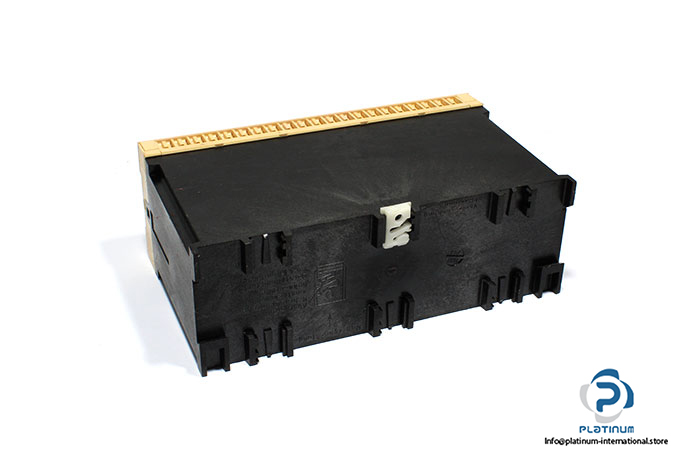

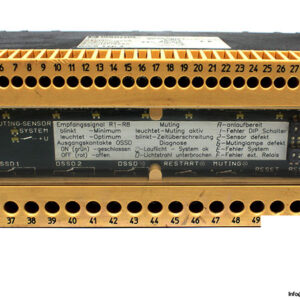

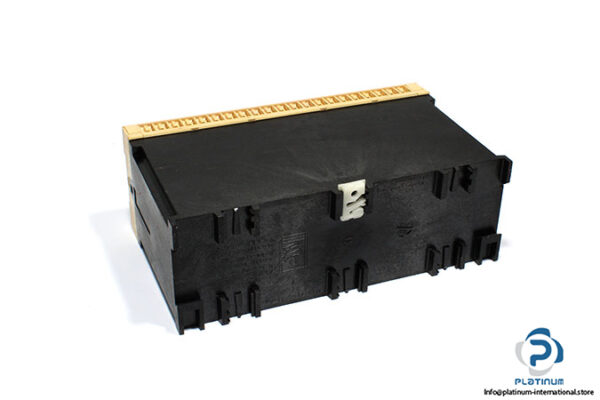

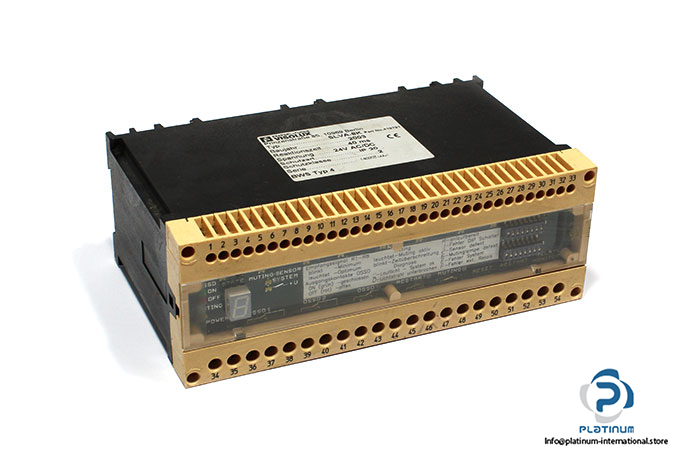

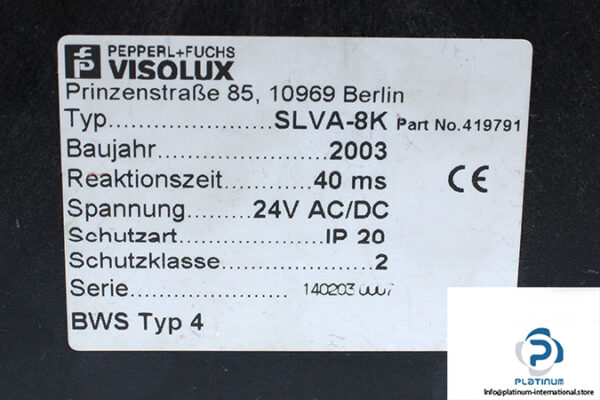

Pepperl+Fuchs SLVA-8K Safety Control

Manufacturer: PEPPERL+FUCHS

Type: SAFETY CONTROL

Model: SLVA-8K

Part No.: 419791

Electrical Specifications:

voltage: 24 V AC/DC

No-load supply current: 100 mA

Power consumption: 13 VA

Input Data:

Activation current: approx. 10 mA

Activation time: 0.03 … 1 s

Test input: Reset input for the system

Test Function: input Relay monitor, start release, muting enables, emergency muting, max. 4 muting sensors

Output Data:

Switching voltage: 20 … 230 V AC/DC

Switching current AC: 0.01 … 2 A DC

Switch power: min. 0.06 VA / max. 460 VA

Response time: 40 ms

Output of the pre-fault indication: 1 NC-contact

Safety output: 2 relay outputs

Ambient temperature: 0 … 50 °C

Protection degree: IP20

Protection Class: Class 2

Housing Material: Polycarbonate

Dimensions: 120 x 200 x 72.5 mm
