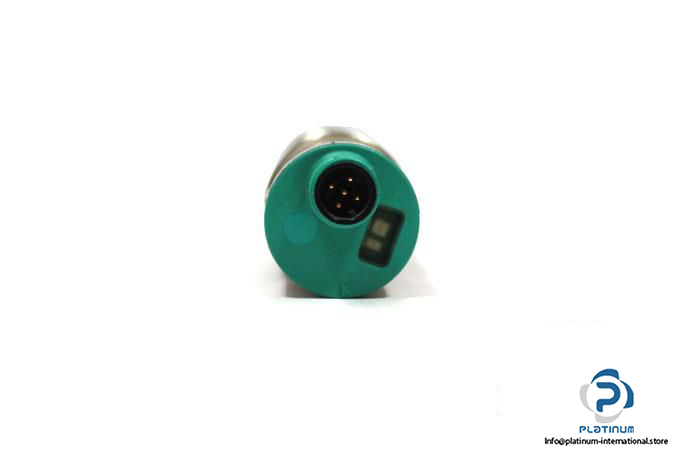

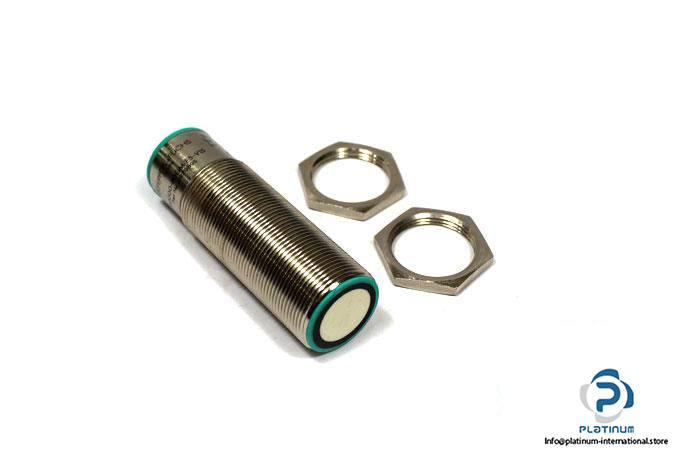

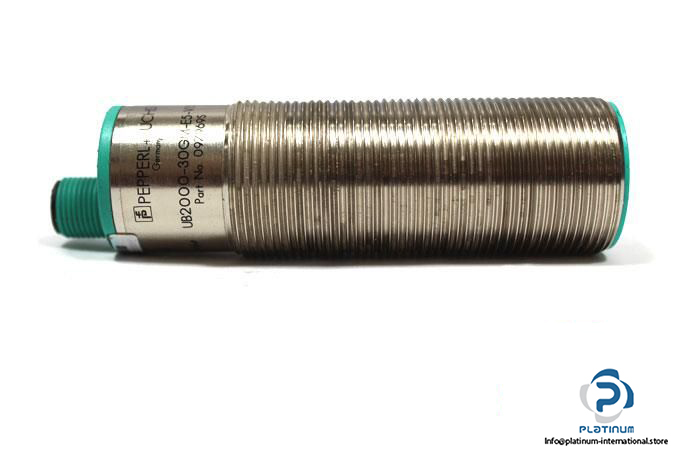

Pepperl+Fuchs UB2000-30GM-E5-V15 Ultrasonic Sensor

Manufacturer: PEPPERL FUCHS

Type: ULTRASONIC SENSOR

Model No.: UB200030GME5V15

Part No.: 097969S

Sensing range: 80 … 2000 mm

Adjustment range: 120 … 2000 mm

Standard target plate: 100 x 100 mm

Response delay: approx. 150 ms

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Transducer frequency: approx. 180 kHz

Switching frequency: 0.3 Hz

Electrical design: PNP

Switching output: Normally open/Normally closed (Programmable)

Connector type: M12 Connector, 5-pin

Protection class: II

Enclosure rating: IP65

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 30, 94 mm

Weight: 140 g

Housing material: Nickel plated brass; plastic components: PBT

Sensing face material: epoxy resin/hollow glass sphere mixture; polyurethane foam

Condition: New
