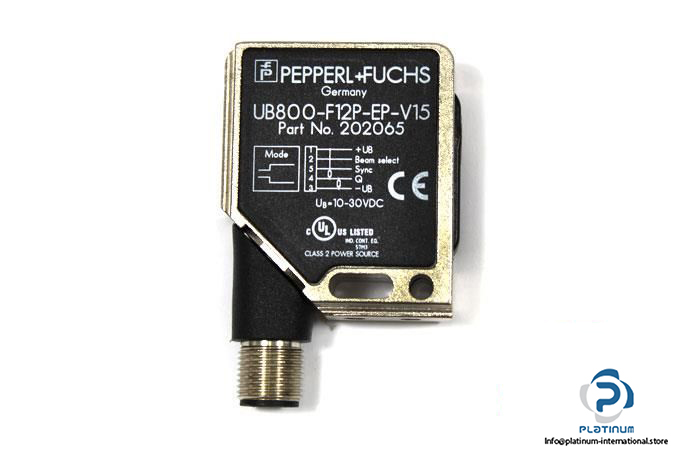

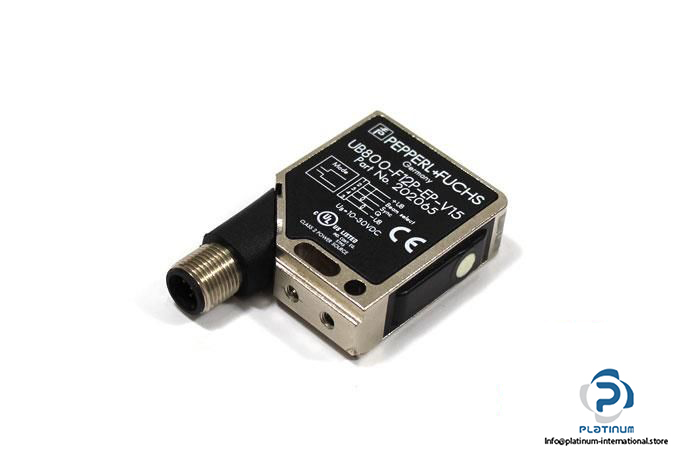

Pepperl+Fuchs UB800-F12P-EP-V15 Ultrasonic Sensor

Manufacturer: PEPPERL FUCHS

Type: ULTRASONIC SENSOR

Model No.: UB800F12PEPV15

Part No.: 202065

Sensing range: 30 … 800 mm

Adjustment range: 50 … 800 mm

Dead band: 0 … 30 mm

Standard target plate: 100 x 100 mm

Response delay: approx. 100 ms

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Transducer frequency: approx. 310 kHz

Electrical design: PNP/NPN

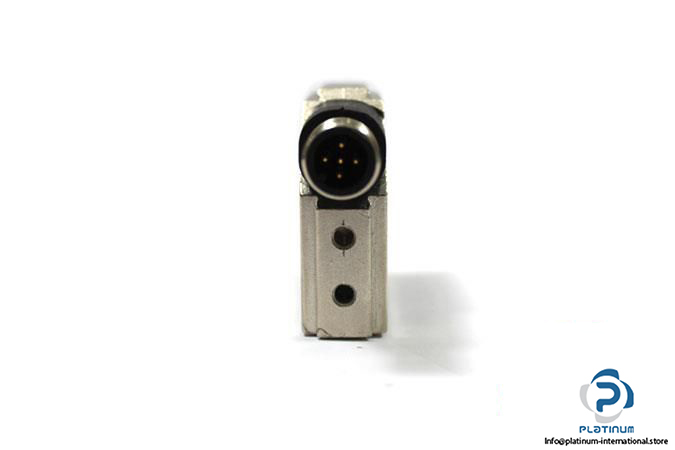

Connector type: M12 Connector, 5-pin

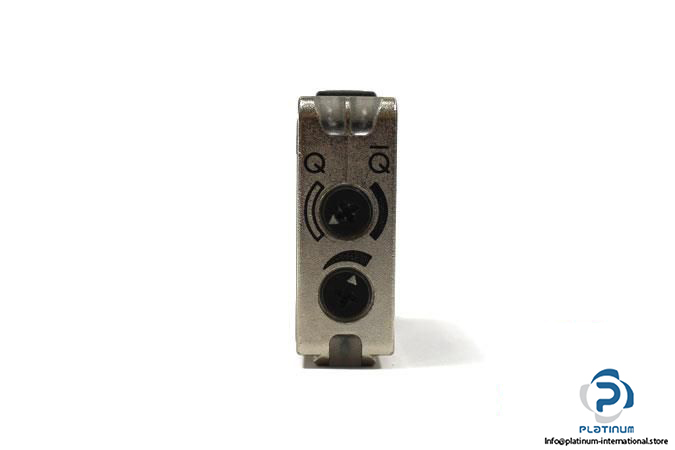

Adjustment: Potentiometer

Protection class: II

Enclosure rating: IP54

Ambient Operating temperature: -15 … 70°C

Dimensions: 42 x 15 x 49 mm

Weight: 60 g

Housing material: nickel plated, die-cast zinc

Sensing face material: epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT

Condition: New
