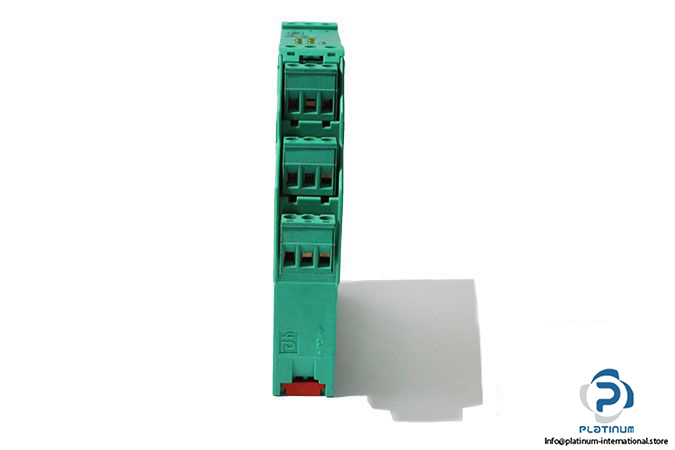

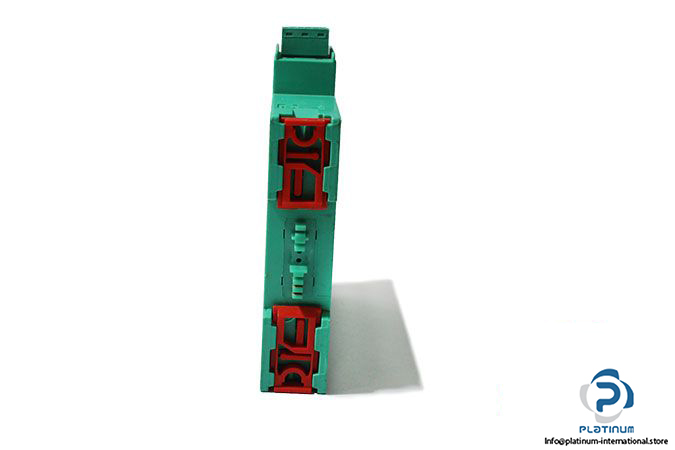

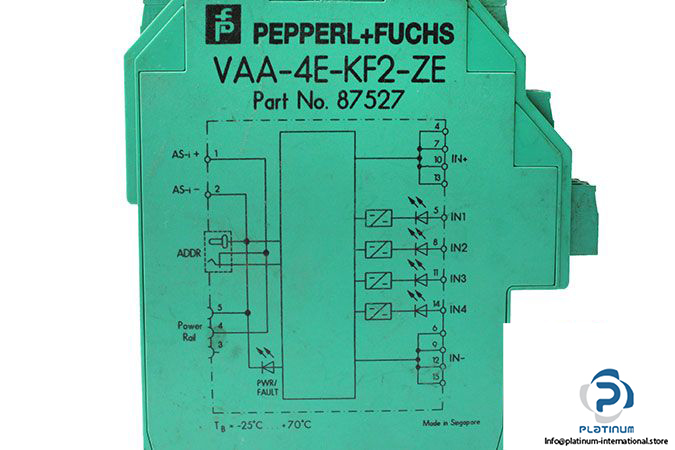

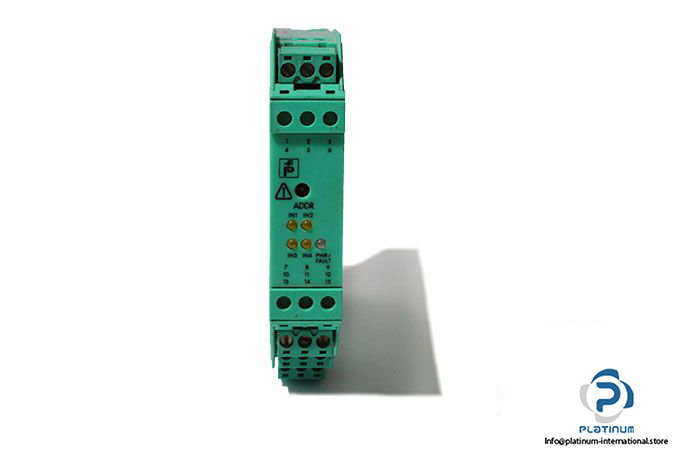

Pepperl+Fuchs VAA-4E-KF2-ZE AS-Interface Sensor Module

Manufacturer: PEPPERL+FUCHS

Type: As-Interface Sensor Module

Model: VAA-4E-KF2-ZE

Part No.: 87527

Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC

Supply: from AS-Interface

Input Voltage: 21 … 31 VDC

Current Loading Capacity: ≤ 150 mA, short-circuit protected

Protection Class: III

Rated Operational Voltage: 26.5 … 31.6 V from AS-Interface

Rated Operational Current: ≤ 50 mA (without sensors) / max. 200 mA

Ambient Temperature: -25 … 70 °C

Degree of Protection: IP20

Dimensions: 20 X 114 X 118 mm

Weight: Approx. 0.1 Kg
