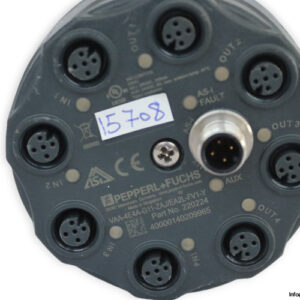

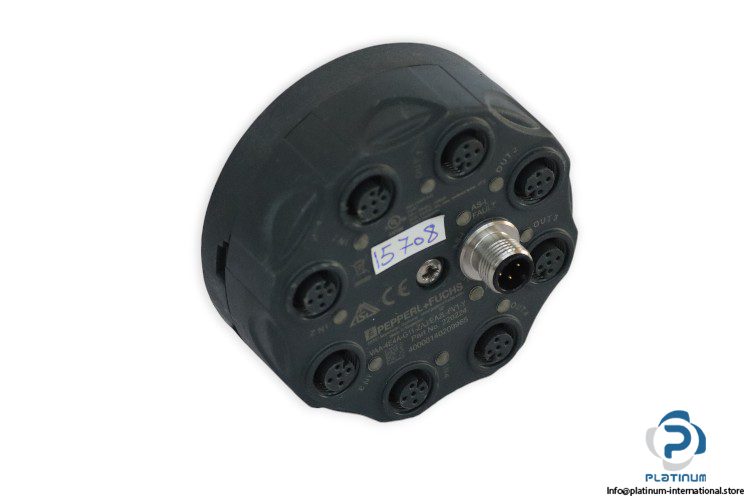

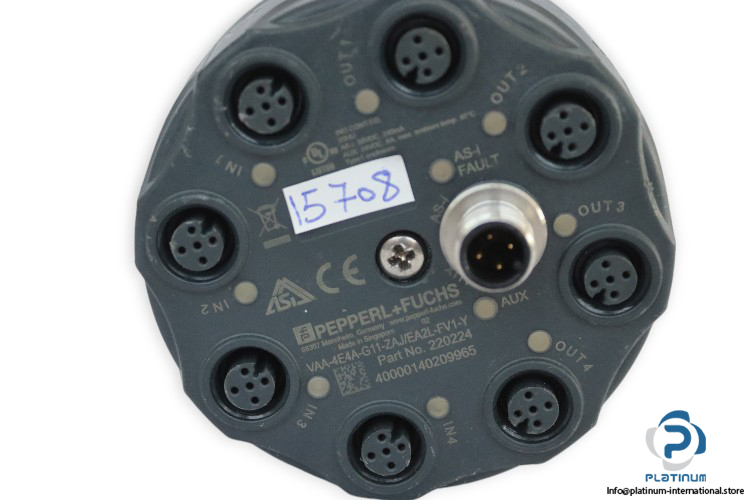

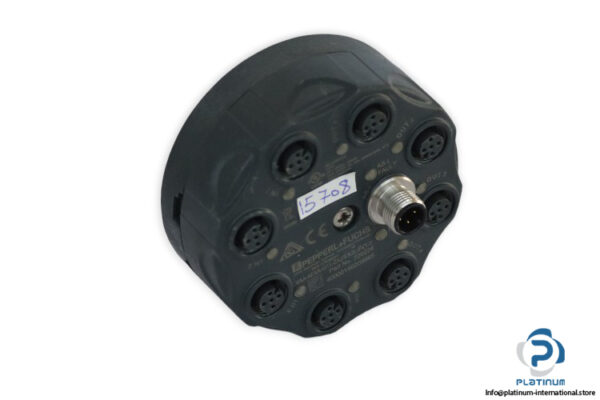

Pepperl+Fuchs VAA-4E4A-G11-ZAJ/EA2L-FV1-Y AS-Interface Sensor

Manufacturer: PEPPERL+FUCHS
Type: AS-Interface sensor/actuator module
Model: VAA4E4AG11ZAJ/EA2LFV1Y
Part No.: 220224

Auxiliary voltage: 20 … 30 V DC
Rated operating voltage Ue: 18 … 31.6 V from AS-Interface
Rated operating current Ie: ≤ 40 mA (without sensors) / max. 240 mA
Input:
Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC option 2 inputs for 4-wire sensors (PNP), DC
Input voltage: 12 … 31 V
Current loading capacity: ≤ 200 mA
Input current: ≤ 9 mA
Switching point:
0 (unattenuated) ≤ 3 mA
1 (attenuated) ≥ 5 mA
Signal delay: < 1 ms (input/AS-Interface)
Output:
Output Number/Type: 4 electronic outputs, PNP, overload and short-circuit proof
Voltage: ≥ (UAUX – 0.5 V)
Current: 2 A per output
TB ≤ 40 °C: 6 A total
TB ≤ 70 °C: sum O1 + O2 max. 2 A, sum O3 + O4 max. 2 A
Pollution degree: 3
Housing: PBT PC
Mounting screw Material: Stainless steel 1.4305 / AISI 303
Tightening torque, housing screws: 1.8 Nm
Tightening torque, cable gland: 0.4 Nm
Mounting: plate
Ambient temperature: -25 … 70 °C
