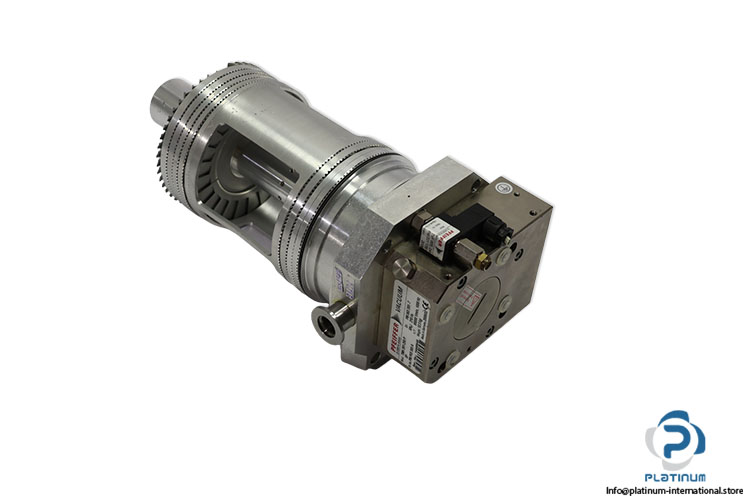

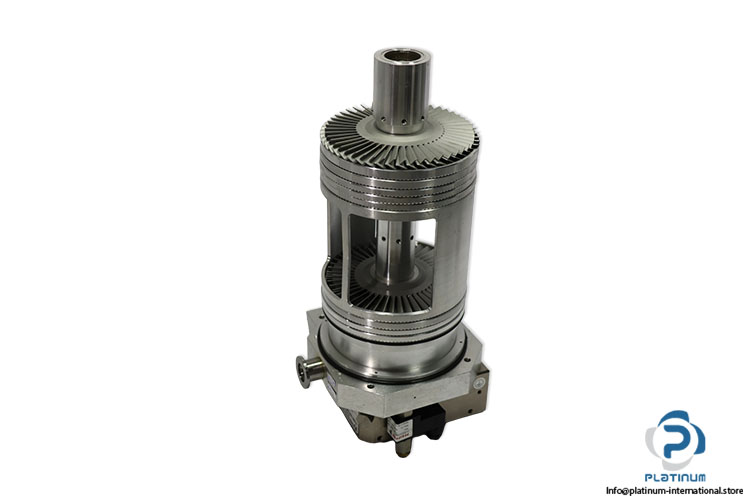

Pfeiffer TMH 261-250 P3P Turbomolecular Vacuum Pump
Used
In stock1 unitReady to ship
Turbomolecular Vacuum Pump The PFEIFFER TMH 261-250 P3P is a high-performance turbomolecular vacuum pump designed for specialized high-vacuum applications, supplied with a TVF 005 automatic vent valve.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

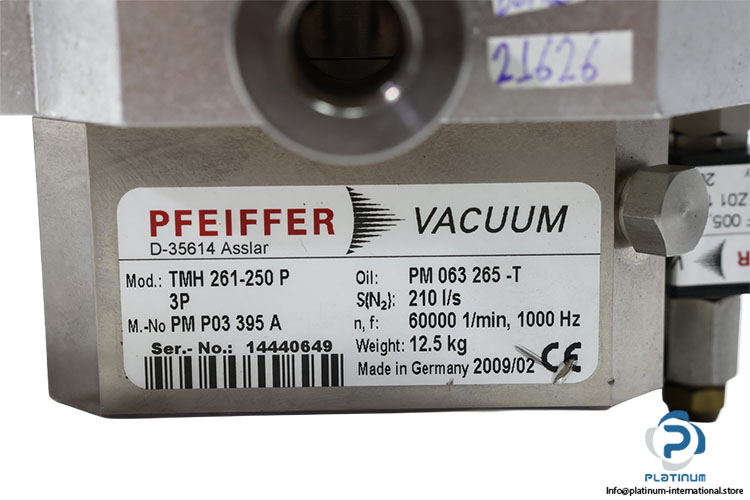

| Material No. | PM P03 395 A |
| Serial No. | 14440649 |
| Application | High-Performance Turbomolecular Drag Pump Designed for Specialized High-Vacuum Applications |
| Ultimate Pressure | 1 x 10-7 mbar |
| Compression Ratio | 1 x 108 |
| Pumping Displacement (N2) | 261-250 l/s |
| Rotational Speed Max. | 60,000 rpm |
| Operating Voltage | 48 V DC |
| Current Consumption Max. | 4.8 A |
| Current Consumption, Continuous Operation | 4.1 A |
| Power Consumption Max. | 200 W |
| Power Consumption, Continuous Operation | 170 W |
| Protection Class | IP30 |

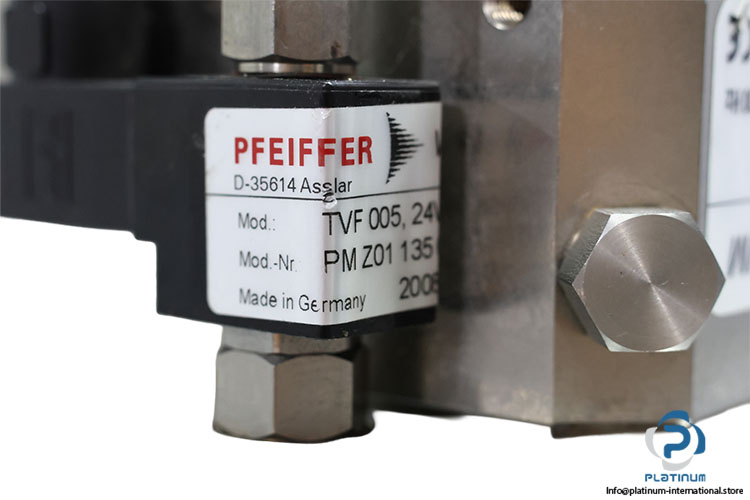

| Attachment | PFEIFFER TVF 005, 24V AUTOMATIC VENT VALVE |
| Vent Valve Manufacturer | PFEIFFER |
| Attachment Type | Automatic Vent Valve |
| Vent Valve Model | TVF 005, 24V |
| Vent Valve Part No. | PM Z01 135 |
| Vent Valve Pressure | 130 mbar |
| Vent Valve Voltage | 24 V DC |
| Vent Valve Connection | G1/8 |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103449 |
| Weight | 6,03 |
