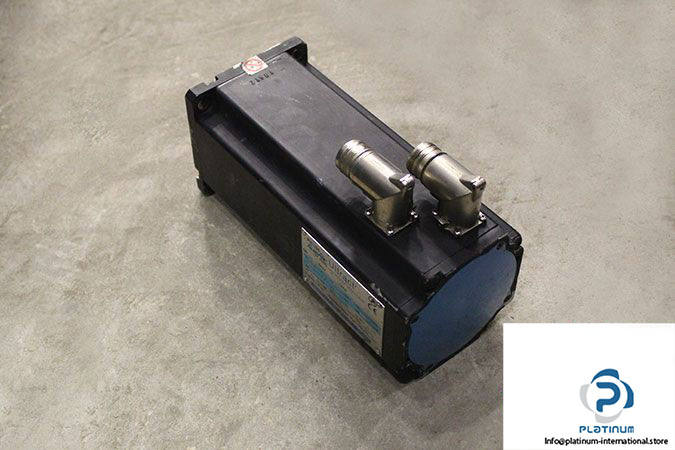

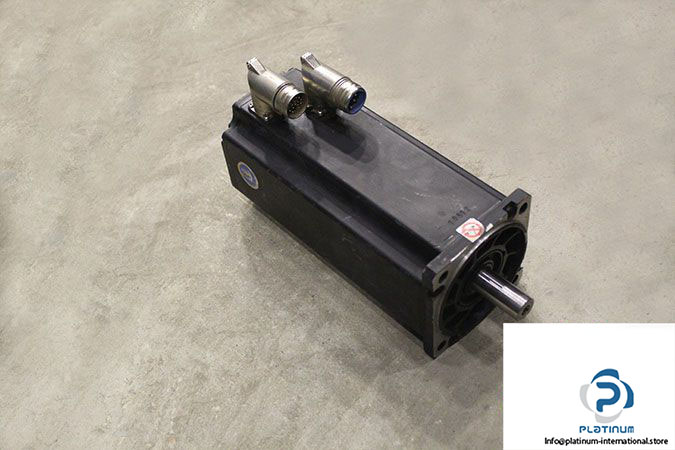

Phase Motion Control U506.30.3 AIR Convection Cooling Servo Motor

Manufacturer: Phase Motion Control

Type: Air Convection Cooling Servo Motor

Model: U506.30.3

Rated Voltage [V]: 372

Rated Current [A]: 3.2

Stall Current [A]: 4.2

Rated Torque [Nm]: 3.4

Stall Torque [Nm]: 6.6

Torque Constant [Nm/A]: 1.7

Rated Power [kW]: 1.1

Rated Speed [rad/s]: 314

Brake Voltage [VDC]: 24

Ambient Temperature [°C]: 100

Protection Class [IP]: 65

Duty: S1 Cont.

Insulation Class: F

Weight [kg]: 15.55
