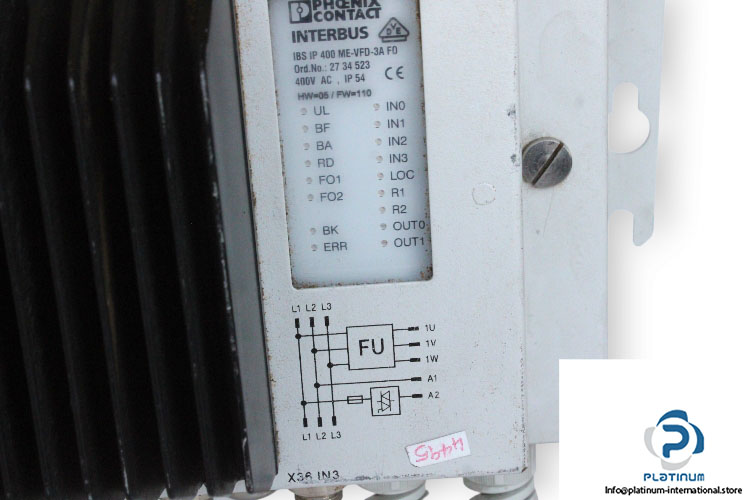

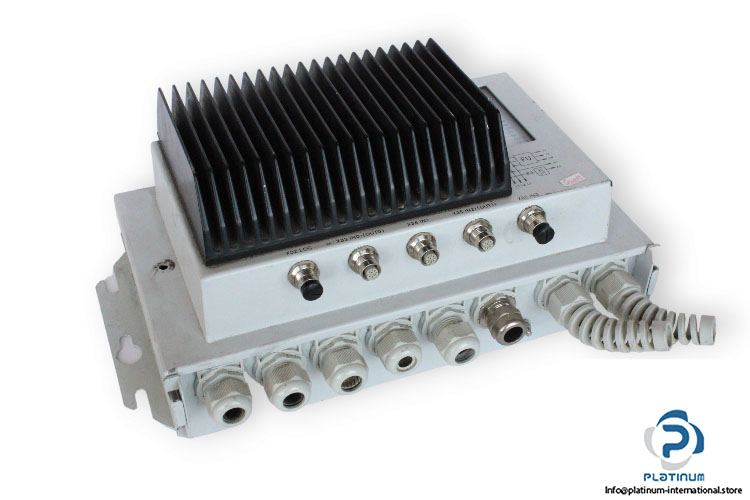

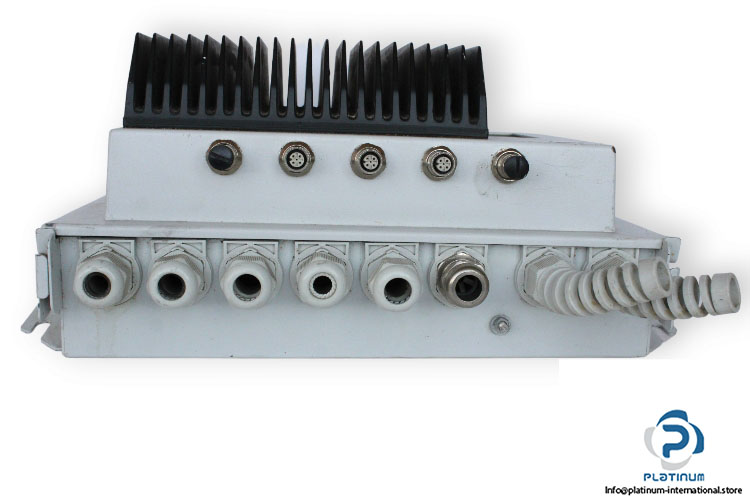

Phoenix Contact IBS IP 400 ME-VFD-3A F0 Frequency Inverter

Manufacturer: PHOENIX CONTACT
Type: Frequency inverter
Model: IBS IP 400 ME-VFD-3A F0
Order No.: 27 34 523

Connection method: POWER-COMBICON
Designation: Terminal strip X13 and X15
Number of positions: 2
Permissible conductor cross section: 1.5 mm² … 4 mm²
Supply voltage: 24 V DC (US1)
Supply voltage range: 20 V DC … 30 V DC (including ripple)
Supply current: typ. 300 mA (at US1 = 24 V; plus current of digital inputs/outputs)
Ripple: Permissible ripple 3.6 Vpp within the permissible voltage range
Max. current carrying capacity: 16 A
Number of inputs: 4

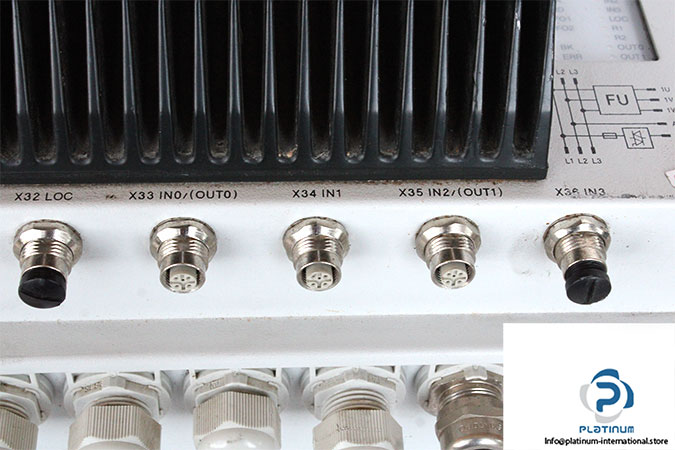

Connection method: M12 connector
Connection method: F-SMA connector
Transmission physics: Polymer fiber
Width: 355 mm
Height: 180 mm
Depth: 100 mm
