Phoenix Contact PLC-BSC-24DC/21-21 Relay Base
New
In stock1 unitReady to ship

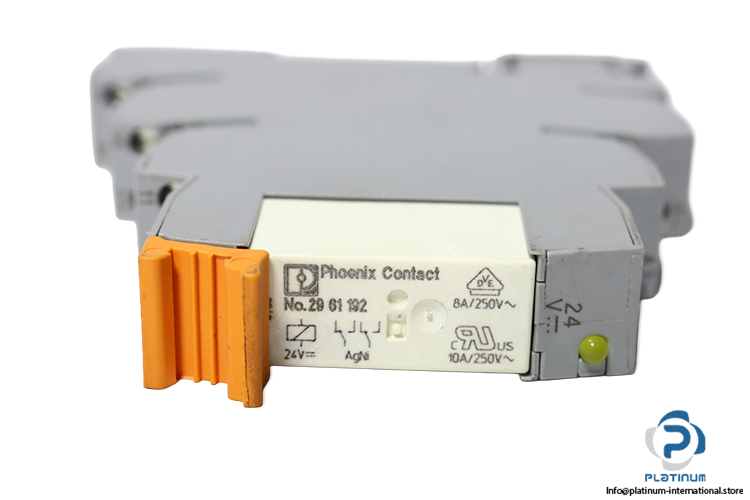

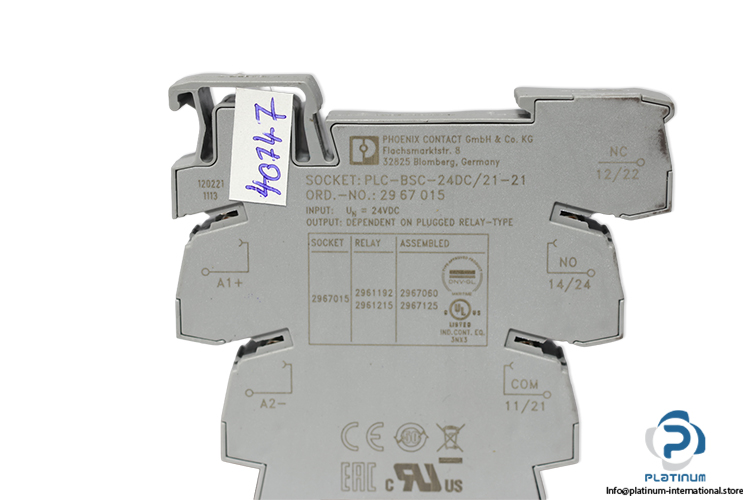

Relay Base The PHOENIX CONTACT PLC-BSC-24DC/21-21 is a 24 V DC PLC-INTERFACE relay base with screw connection, supplied with a REL-MR-24DC/21-21 plug-in power relay.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 2967015 |
| Product Family | PLC-INTERFACE |
| Nominal Input Voltage | 24 V DC |
| Connection Method | Screw Connection |
| Protection Class | IP20 |
| Temperature | -40 … 60 °C |
| Dimensions | 80 x 14 x 94 mm |
| Attachment | PHOENIX CONTACT 29 61 192 SINGLE RELAY |
| Relay Manufacturer | PHOENIX CONTACT |
| Attachment Type | Plug-In Miniature Power Relay |
| Relay Model | REL-MR- 24DC/21-21 |
| Relay Order No. | 2961192 |
| Relay Nominal Input Voltage Un | 24 V DC |
| Relay Power Dissipation Max. | 0.41 W |
| Relay Contact | 2 Changeover (CO) |
| Relay Switching Voltage | 5/250 V AC/DC |
| Relay Limiting Continuous Current | 8 A |
| Relay Inrush Current Max. | 25 A |
| Relay Connection Method | Plug / Solder Connection |
| Relay Protection Class | IP20 |
| Relay Temperature | -40 … 85 °C |
| Relay Dimensions | 29 x 12.7 x 15.7 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1104257 |
| Weight | 0,07 |
