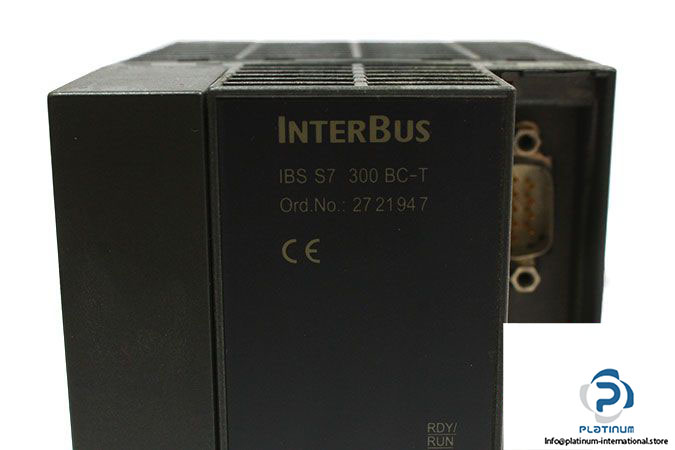

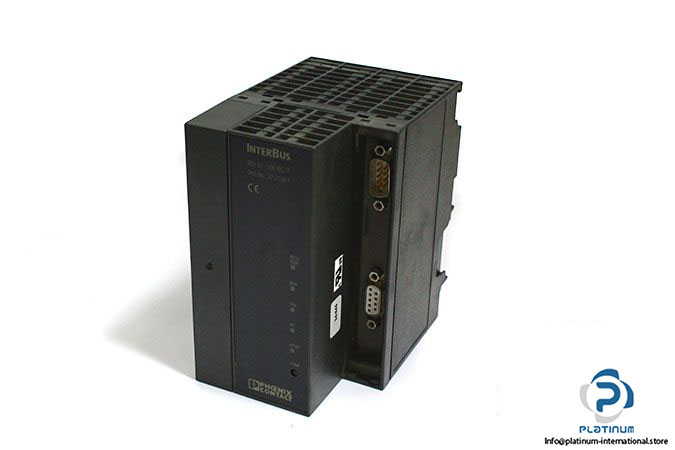

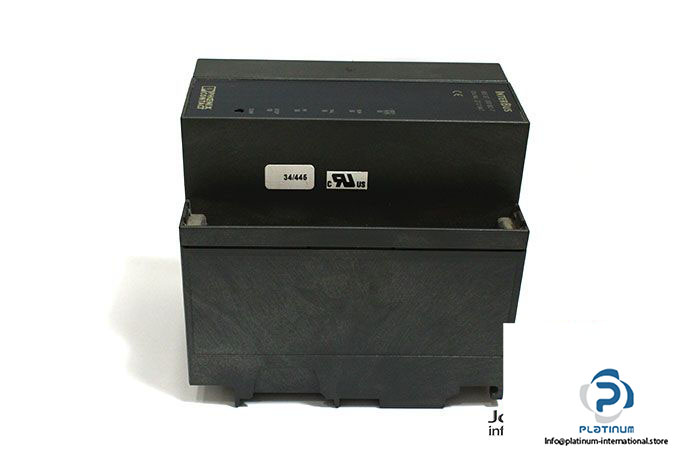

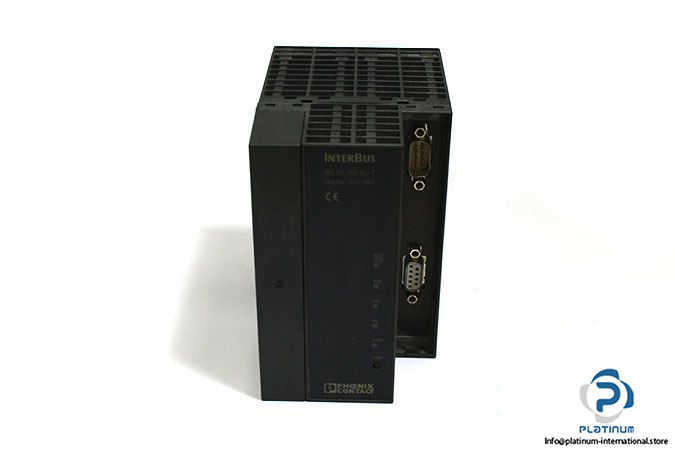

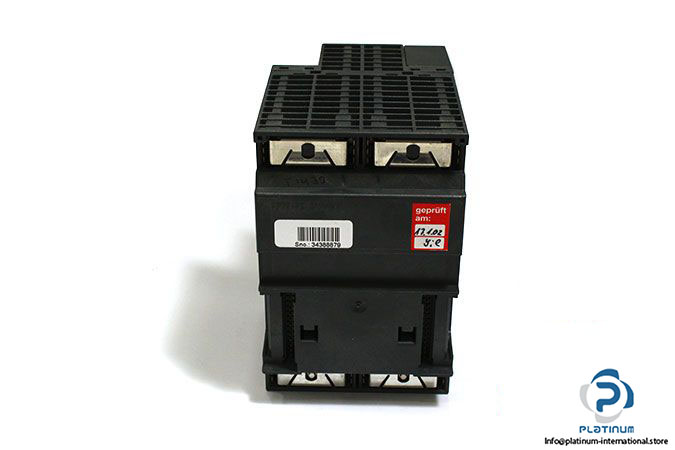

Phoenix Contact IBS S7 300 BC-T Controller Board

Name: PHOENIX CONTACT IBS S7 300 BC-T CONTROLLER BOARD
Brand: PHOENIX CONTACT
SKU: 968960
Availability: LimitedAvailability

phoenix-contact-ibs-s7-300-bc-t-controller-board-2-2

phoenix-contact-ibs-s7-300-bc-t-controller-board-3-2

phoenix-contact-ibs-s7-300-bc-t-controller-board-1-2

phoenix-contact-ibs-s7-300-bc-t-controller-board-4

Used

Available on request

CONTROLLER BOARD

Phoenix Contact IBS S7 300 BC-T is a controller board for coupling INTERBUS to Siemens SIMATIC® S7-300 CPUs (312“318). Supports 256 devices and operates with robust 240-byte I/O processing.

Manufacturer

PHOENIX CONTACT

SKU

968960

Category

PLC Modules

Condition

Used

240 300 Adapter Automation BC-T Board BUS Byte Contact Control Controller coupling I/O IBS Industrial Interbus Interface Module Phoenix Remote S7 S7-300 Simatic to

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

PHOENIX CONTACT IBS S7 300 BC-T CONTROLLER BOARD

The IBS S7 300 BC-T from Phoenix Contact is a highly reliable controller board designed for seamless coupling of INTERBUS systems to Siemens SIMATIC® S7-300 control units. This interface controller is ideal for industrial automation applications, offering high-speed communication and robust data processing.

Manufacturer: PHOENIX CONTACT

Type: CONTROLLER BOARD

Model: IBS S7 300 BC-T

Order No.: 27 21 94 7

Applications	Coupling of INTERBUS to SIMATIC® S7-300 control systems
Compatible SIMATIC® S7-300 Types	CPU 312 to 318
Control System	SIMATIC® S7-300 I/O bus
Interbus	Remote bus, 9-pos. D-SUB female connector
Current Consumption	350 mA at 5 V (typical)
Monitored Function	INTERBUS
Power Loss	1.75 W (typical)
Number of Devices Supported	256 (254 remote bus devices)
Process Data Inputs	240 bytes (1920 bits)
Process Data Outputs	240 bytes (1920 bits)
Operating Temperature	0 / 60°C
Permissible Air Pressure (Operation)	860 hPa to 1080 hPa
Permissible Air Pressure (Storage/Transport)	660 hPa to 1080 hPa
Dimensions	80 x 125 x 110 mm
