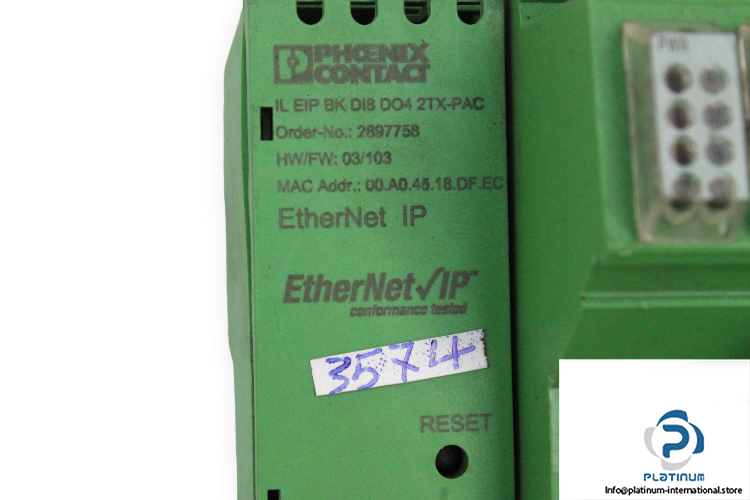

Phoenix Contact IL EIP BK DI8 DO4 2TX-PAC BUS Coupler
Order No.: 2897758 03/103
Manufacturer: PHOENIX CONTACT
Type: Bus coupler
Model: IL EIP BK DI8 DO4 2TX-PAC
Order No.: 2897758
03/103
Input name: Digital inputs
Description of the input EN 61131-2 type: 1
Number of inputs: 8
Number of outputs: 4
Number of interfaces: 2
Connection method: RJ45 jack
Note on the connection method: Auto negotiation and autocrossing
Permissible conductor cross section: 0.14 mm² … 0.22 mm² (twisted pair)
Transmission speed: 10/100 Mbps (half or full duplex (automatic detection))
Transmission physics: Ethernet in RJ45 twisted pair
Number of interfaces: 1
Connection method: Inline data jumper
Transmission speed: 500 kbps / 2 Mbps
Width: 80 mm
Height: 119.8 mm
Depth: 71.5 mm
