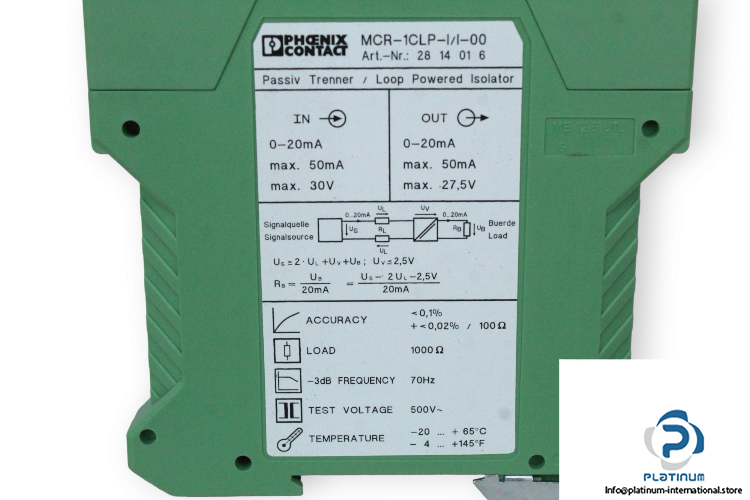

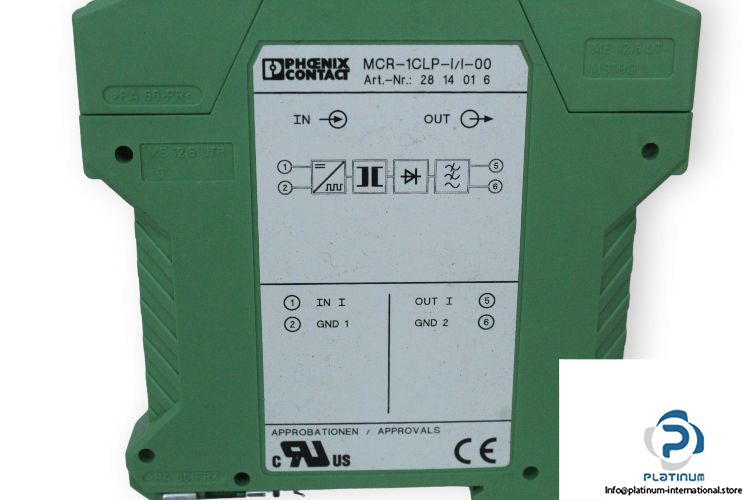

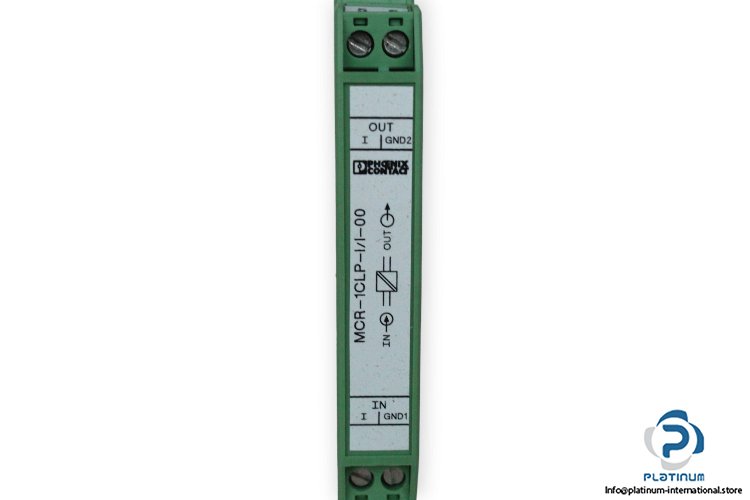

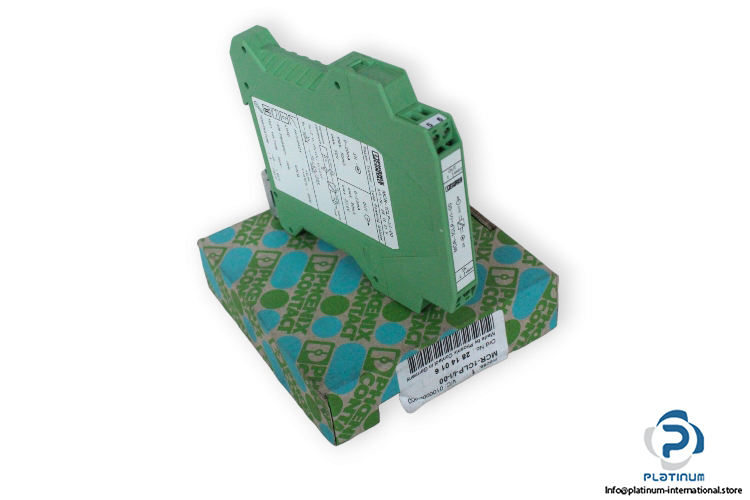

Phoenix Contact MCR-1CLP-I/I-00 Loop-Powered Isolator
200,00$
Manufacture: Phoenix Contact
Type: Loop-Powered Isolator
Model: MCR1CLPI/I00
Art. No.: 2814016
Input:
Input Voltage: max. 30 V
Input Current signal: max. 50 mA (100 mA overload)
Response Current: < 50 µA
Input Voltage Limitation: 33 V
Description of the Input: Current input
Number of Inputs: 1
Output:
Output Name: Current output
Number of Outputs: 1
Current Output Signal: 0 … 20 mA, 4 … 20 mA
Max. Output Current: < 50 mA
Connection method: Pluggable screw connection
Stripping length: 8 mm
Screw thread: M3
Housing Material: Polyamide PA non-reinforced
Mounting type: DIN rail mounting
Degree of protection: IP20
Ambient Temperature (Operation): -10 … 70 °C
Dimensions: 99 X 12.5 X 114.5 mm
