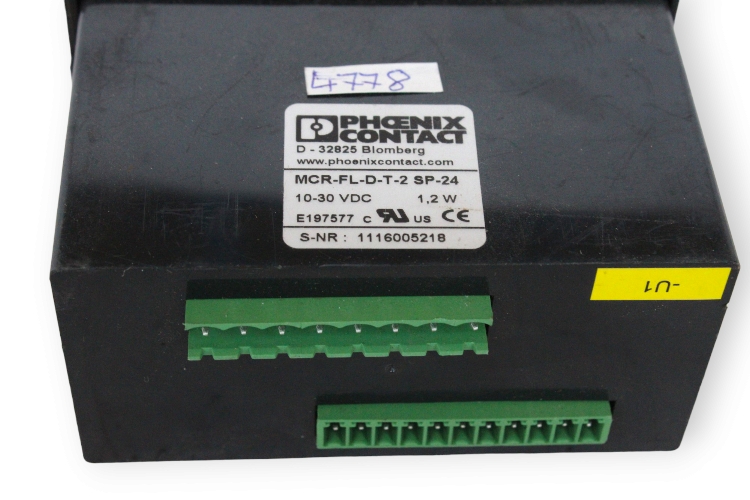

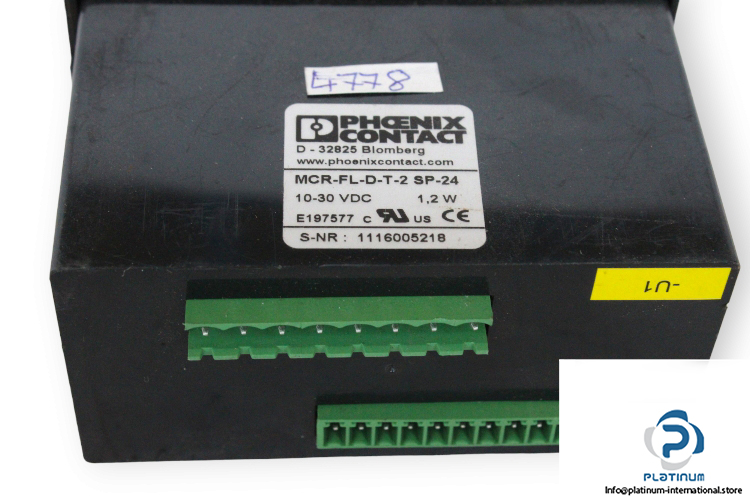

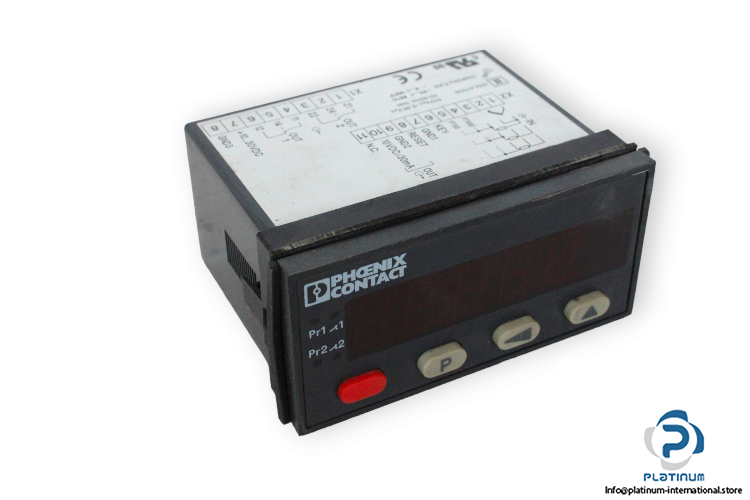

Phoenix Contact MCR-FL-D-T-2 SP-24 Digital Display

Manufacturer: PHOENIX CONTACT
Type: Digital display
Model: MCR-FL-D-T-2 SP-24
part no.: 2838199

Supply voltage range: 10 V DC … 30 V DC
Power consumption: max. 2 W
Max. voltage input signal: 10 V DC
Thermocouple sensors (in accordance with DIN IEC 584-1/DIN 43710): B, E, J, K, N, R, S, T
Switching level “1” signal: 4 V DC … 30 V DC
Switching level “0” signal: 0 V DC … 2 V DC
System hum suppression: Digital filtering 50/60 Hz
Input reset impulse: > 5 ms to reset the totalizer / the relay outputs
Measuring rate: 1 measurement/second
Input resistance of voltage input: > 2 MΩ
Maximum switching voltage: 300 V DC
,250 V AC
Min. switching current: 30 mA DC
Max. switching current: 3 A
Interrupting rating (ohmic load) max.: 50 W, 2000 VA
Ambient Temperature: -20 … 85 °C
