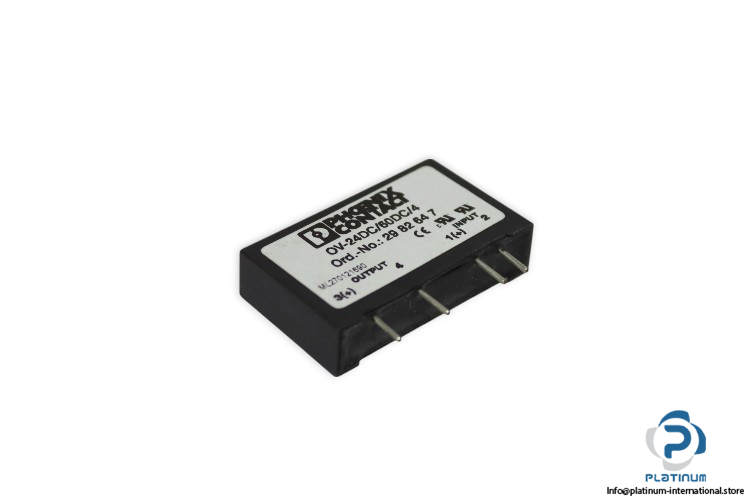

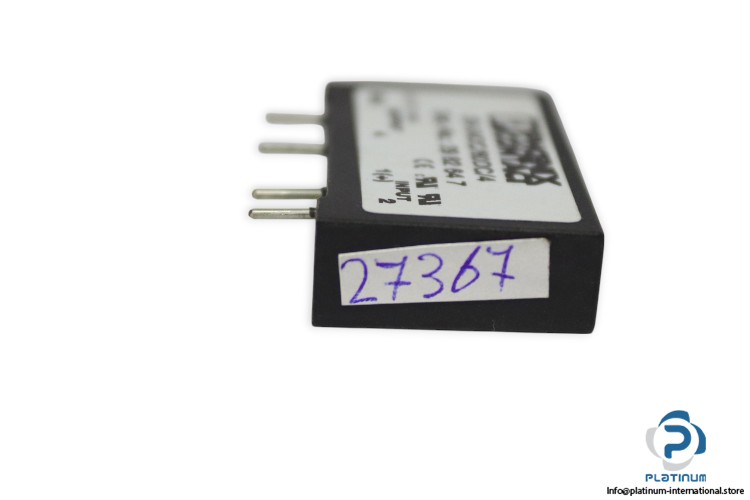

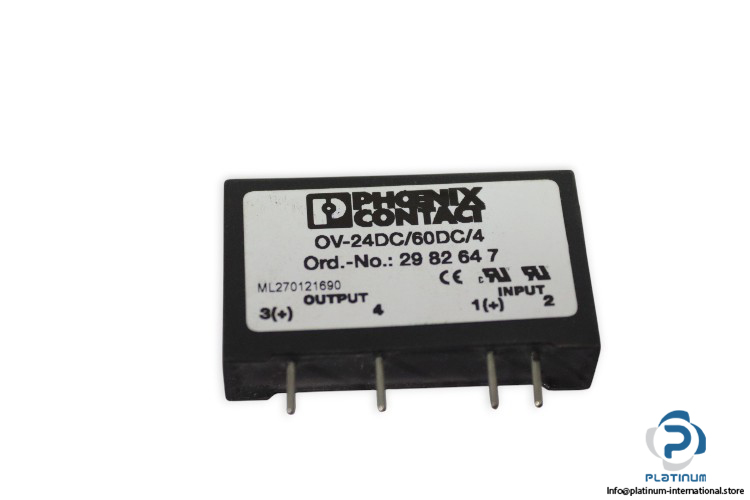

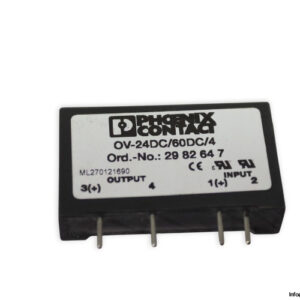

Phoenix Contact OV-24DC/60DC/4 Semi-Conductor Relay
Compact Phoenix Contact semi-conductor relay (OV-24DC/60DC/4) with 24 V DC input, 60 V DC output, and 4 A continuous current. Designed for efficient, wear-free switching in DC control systems.
Manufacturer: Phoenix Contact
Type: Semi-Conductor Relay
Model: OV-24DC/60DC/4
Part No.: 2982647
The Phoenix Contact semi-conductor relay is designed for fast, reliable, and wear-free switching in DC control systems. Featuring compact dimensions and robust performance, this relay is ideal for industrial automation applications where precision and protection are critical.
- Nominal Input Voltage UN: 24 V DC
- Input Voltage Range: 4.25 V DC “ 32 V DC
- Switching Threshold œ0 Signal Voltage: 1 V DC
- Switching Threshold œ1 Signal Voltage: 3.3 V DC
- Typical Input Current at UN: 15 mA
- Output Nominal Voltage Range: 1 V DC “ 60 V DC
- Limiting Continuous Current: 4 A
- Surge Current: 25 A
- Output Circuit: 2-conductor
- Protection: Polarity protection with diode
- Ambient Operating Temperature: -20 °C to +80 °C
- Dimensions (H x W x D): 25.4 x 10.5 x 43 mm
Its compact design and protective circuitry ensure long-term reliability even in demanding environments, making it a smart choice for systems where space and durability matter.
