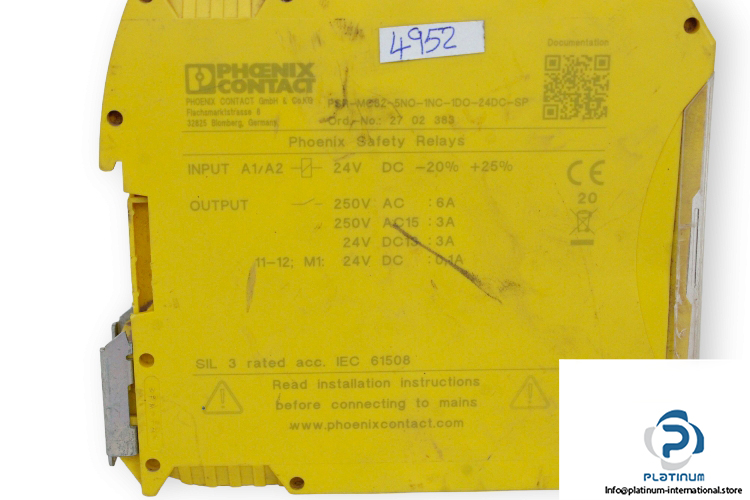

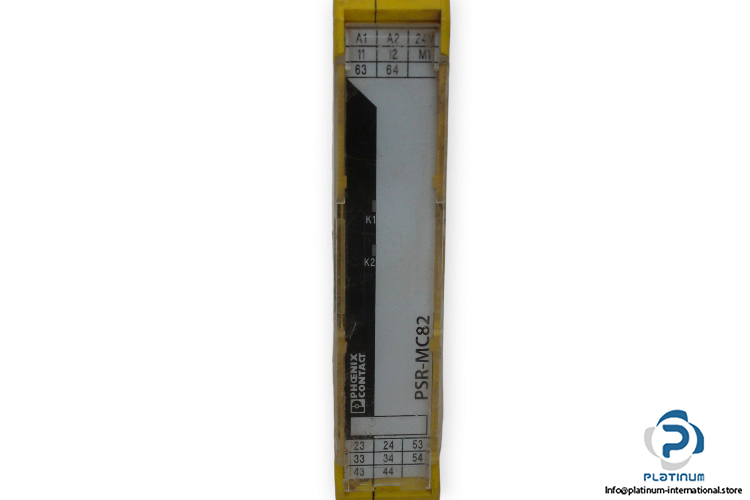

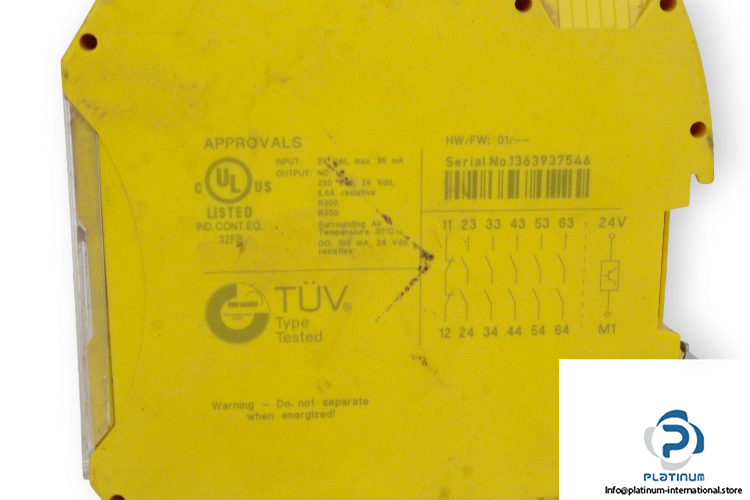

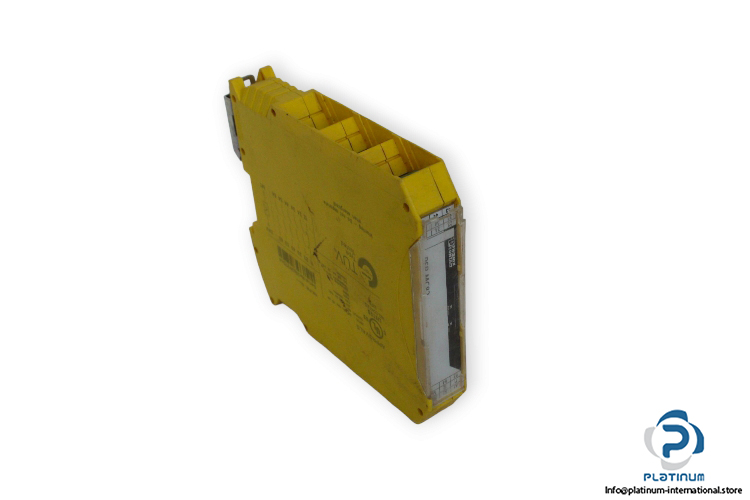

Phoenix Contact PSR-MC82-5NO-1NC-1DO-24DC-SP Safety Relay
Manufacture: Phoenix Contact Type: Safety Relay Model: PSR-MC82-5NO-1NC-1DO-24DC-SP Order No.: 27 02 383
Manufacture: Phoenix Contact
Type: Safety Relay
Model: PSR-MC82-5NO-1NC-1DO-24DC-SP
Order No.: 27 02 383
Rated supply voltage Us: 24 V DC
Rated supply current Is: max. 85 mA
Power consumption at US: typ. 1.92 W
Typical response time: < 50 ms
Rated insulation voltage: 250 V AC
Output description: 5 NO,1 NC contact
Contact material: AgSnO2
Switching capacity: 250 V AC (6, 3 A), 24 V DC (3, 0.1 A)
Ambient temperature (operation): -20 … 60 °C
Housing material: Polyamide
Mounting type: DIN rail mounting
Degree of protection: IP20
Dimensions: 17.5 x 116.6 x 114.5 mm
