Phoenix Contact PT 10 Feed-Through Terminal Block
New
In stock45 unitsReady to ship
Feed-Through Terminal Block
PHOENIX CONTACT PT 10 feed-through terminal block with push-in connection, 10 mm² nominal cross section, 57 A nominal current, and 1000 V rating for industrial and railway applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

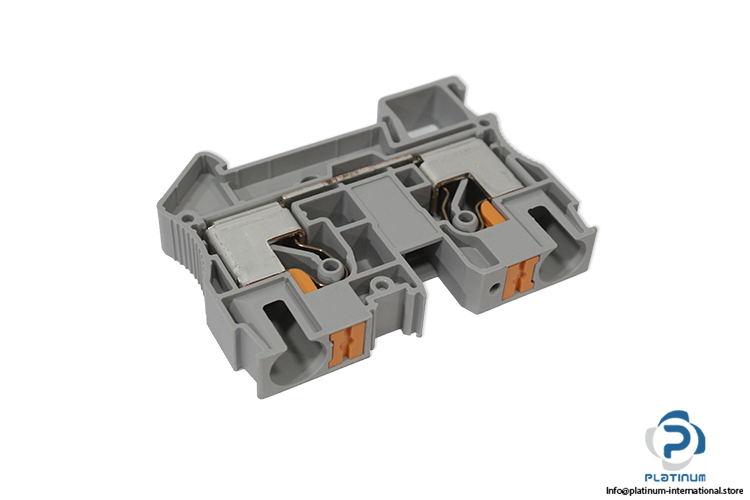

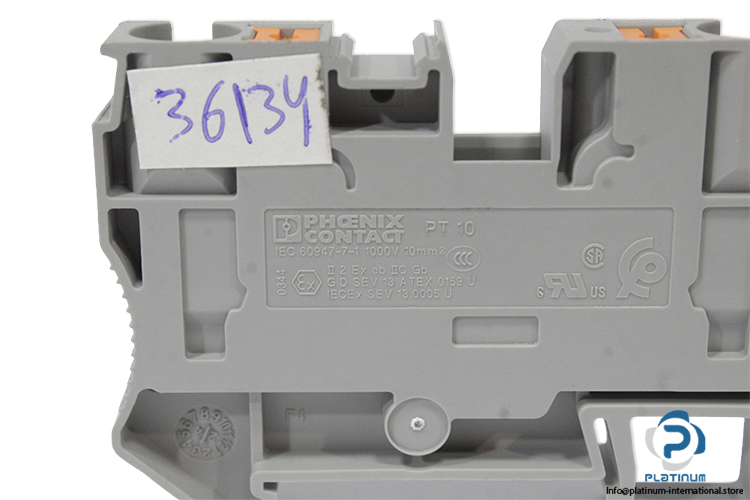

PHOENIX CONTACT PT 10 Feed-Through Terminal Block
The PHOENIX CONTACT PT 10 is a high-performance feed-through terminal block from the PT product family, designed for reliable electrical connections in railway industry, machine building, and plant engineering applications. It features push-in connection technology for fast, secure, and tool-efficient wiring.
Manufacturer: PHOENIX CONTACT
Type: Feed-through Terminal Block
Model: PT 10
MRN: 32 12 12 0
Product Family: PT
Application
Area Of Application:
Railway Industry
Machine Building
Plant Engineering
Directly Pluggable Connection Cross Sections:
Insulation Characteristics:
Dimensions:
| Number Of Connections | 2 |
| Number Of Rows | 1 |
| Potentials | 1 |
| Number Of Connections Per Level | 2 |
| Nominal Cross Section | 10 mm² |
| Connection Method | Push-In Connection |
| Stripping Length | 18 mm ... 20 mm |
| Internal Cylindrical Gage | A6 |
| Connection Standard | IEC 60947-7-1 |
| Conductor Cross-Section Rigid | 0.5 mm² ... 16 mm² |
| Conductor Cross-Section Flexible | 0.5 mm² ... 16 mm² |
| Cross Section AWG | 20 ... 6 (Converted According To IEC) |
| Flexible (Ferrule Without Plastic Sleeve) | 0.5 mm² ... 10 mm² |
| Flexible (Ferrule With Plastic Sleeve) | 0.5 mm² ... 10 mm² |
| Two Conductors With TWIN Ferrule (Plastic Sleeve) | 1.5 mm² ... 4 mm² |
| Rigid | 1 mm² ... 16 mm² |
| Flexible (Without Plastic Sleeve) | 4 mm² ... 10 mm² |
| Flexible (With Plastic Sleeve) | 2.5 mm² ... 10 mm² |
| Nominal Current | 57 A |
| Maximum Load Current | 70 A (With 16 mm² Rigid Conductor) |
| Nominal Voltage | 1000 V |
| Overvoltage Category | III |
| Degree Of Pollution | 3 |
| Rated Surge Voltage | 8 kV |
| Maximum Power Dissipation (Nominal Condition) | 1.82 W |
| Ex Identification | II 2 GD Ex eb IIC Gb |
| Ex Rated Voltage | 550 V |
| Ex Rated Current | 52.5 A |
| Ex Maximum Load Current | 61.5 A |
| Operating Temperature Range (1) | -60 °C ... 85 °C |
| Operating Temperature Range (2) | -40 °C ... 110 °C |
| Contact Resistance | 0.43 MΩ |
| Width | 10.2 mm |
| End Cover Width | 2.2 mm |
| Height | 67.7 mm |
| Depth | 49.5 mm |
