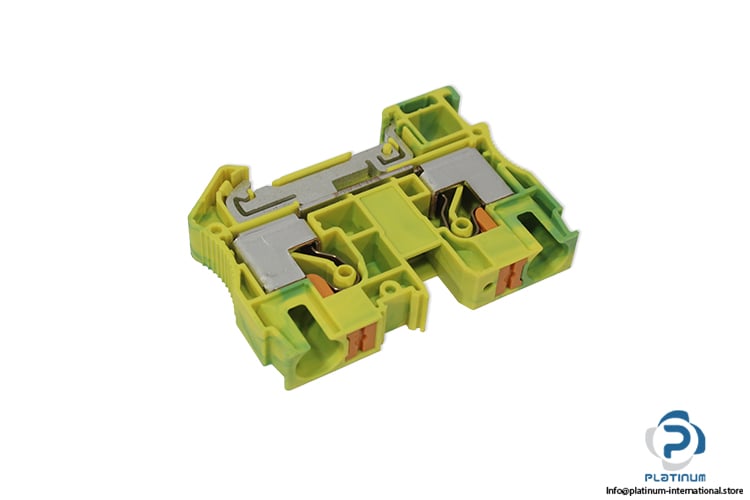

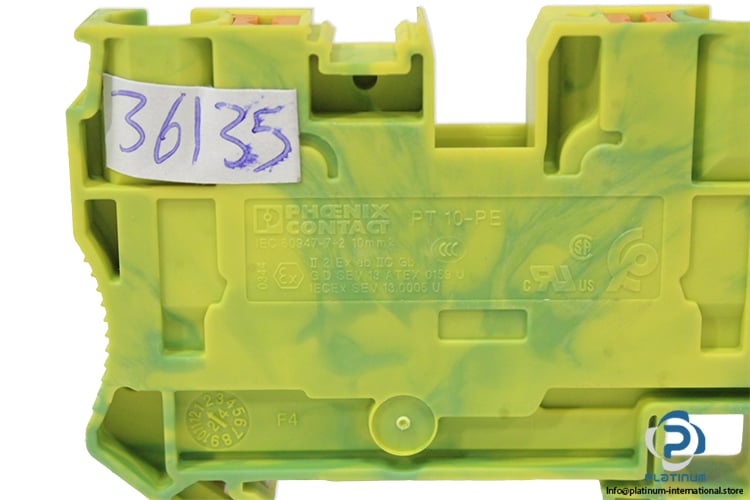

Phoenix Contact PT 10-PE Feed-Through Terminal Block
Feed-Through Terminal Block
PHOENIX CONTACT PT 10-PE push-in feed-through terminal block with 10 mm² nominal cross section, IEC 60947-7-1 compliance, and wide operating temperature range for railway and industrial applications.PHOENIX CONTACT PT 10-PE Feed-Through Terminal Block
The PHOENIX CONTACT PT 10-PE is a high-performance feed-through terminal block from the PT product family, designed for secure and efficient conductor connections in railway industry, machine building, and plant engineering applications. Featuring push-in connection technology, it ensures fast installation, reliable contact, and compact rail mounting integration.
Manufacturer: PHOENIX CONTACT
Type: Feed-Through Terminal Block
Model: PT 10-PE
MRN: 32 12 13 1
Product Family: PT
Area Of Application: Railway Industry, Machine Building, Plant Engineering
Number Of Connections: 2
Number Of Rows: 1
Potentials: 1
Insulation Characteristics:
Electrical & Connection Data:
Dimensions:
| Overvoltage Category | III |
| Degree Of Pollution | 3 |
| Rated Surge Voltage | 8 kV |
| Maximum Power Dissipation For Nominal Condition | 1.82 W |
| Number Of Connections Per Level | 2 |
| Nominal Cross Section | 10 mm² |
| Connection Method | Push-In Connection |
| Stripping Length | 18 mm ... 20 mm |
| Internal Cylindrical Gage | A6 |
| Connection In Accordance With Standard | IEC 60947-7-1 |
| Conductor Cross-Section Rigid | 0.5 mm² ... 16 mm² |
| Cross Section AWG | 20 ... 6 (Converted According To IEC) |
| Conductor Cross-Section Flexible | 0.5 mm² ... 16 mm² |
| Conductor Cross-Section Flexible [AWG] | 20 ... 6 (Converted According To IEC) |
| Conductor Cross-Section Flexible (Ferrule Without Plastic Sleeve) | 0.5 mm² ... 10 mm² |
| Flexible Conductor Cross-Section (Ferrule With Plastic Sleeve) | 0.5 mm² ... 10 mm² |
| Identification | II 2 GD Ex eb IIC Gb |
| Operating Temperature Range (1) | -60 °C ... 85 °C |
| Operating Temperature Range (2) | -40 °C ... 110 °C |
| Width | 10.2 mm |
| End Cover Width | 2.2 mm |
| Height | 67.7 mm |
| Depth | 49.5 mm |
