Phoenix Contact PT 2,5/1P Feed-Through Terminal Block
New
In stock51 unitsReady to ship
Feed-Through Terminal Block
PHOENIX CONTACT PT 2,5/1P push-in feed-through terminal block with 2.5 mm² nominal cross section, 24 A rated current, 500 V nominal voltage, and PA66-FR insulation for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

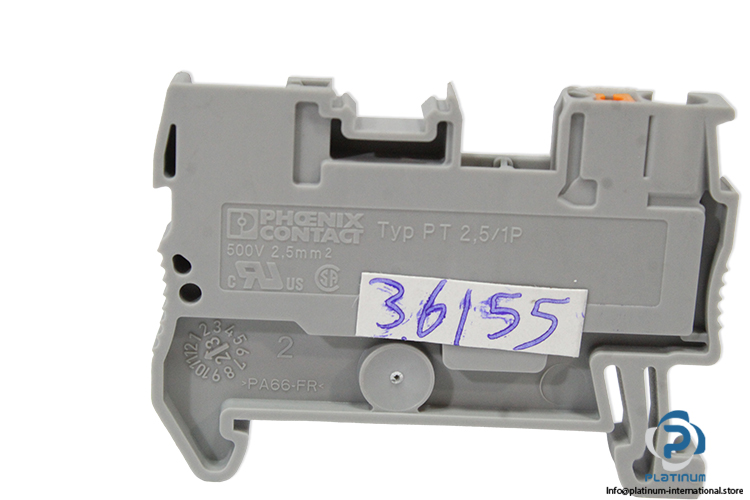

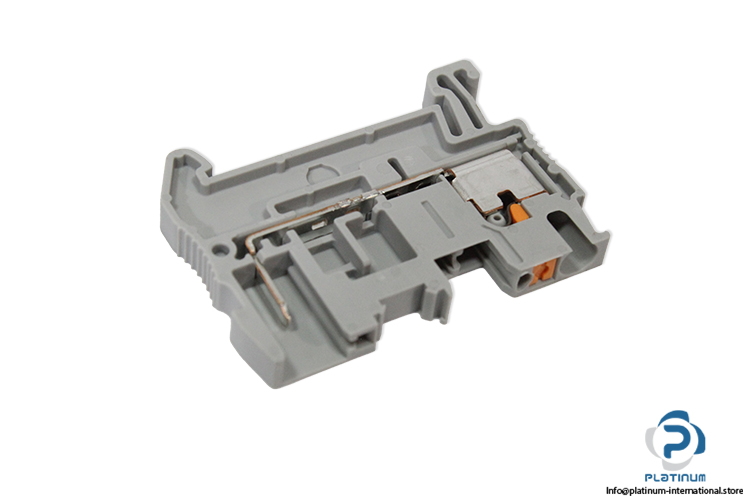

PHOENIX CONTACT PT 2,5/1P Feed-Through Terminal Block
The PHOENIX CONTACT PT 2,5/1P is a compact push-in feed-through terminal block designed for secure and efficient conductor connection in industrial electrical installations. Manufactured from PA66-FR insulating material, it ensures reliable performance in demanding environments including railway, machine building, and plant engineering applications.
Manufacturer: PHOENIX CONTACT
Type: Feed-through Terminal Block
Model: PT 2,5/1P
Code: PA66-FR
Product Family: PT
Insulation Characteristics:
Electrical Data:
Dimensions:
| Area Of Application | Railway Industry, Machine Building, Plant Engineering |
| Number Of Connections | 2 |
| Number Of Rows | 1 |
| Potentials | 1 |
| Overvoltage Category | III |
| Degree Of Pollution | 3 |
| Rated Surge Voltage | 6 kV |
| Maximum Power Dissipation For Nominal Condition | 0.77 W |
| Nominal Cross Section | 2.5 mm² |
| Connection Method | Push-in / Plug Connection |
| Stripping Length | 8 mm ... 10 mm |
| Internal Cylindrical Gage | A3 |
| Connection In Accordance With Standard | IEC 61984 |
| Nominal Current | 24 A |
| Maximum Load Current | 24 A (With 4 mm² Conductor Cross-Section, Rigid) |
| Nominal Voltage | 500 V |
| Width | 5.2 mm |
| End Cover Width | 2.2 mm |
| Height | 48.6 mm |
| Depth | 35.3 mm |
| Material | PA |
| Ambient Temperature (Operation) | -60 °C ... 100 °C |
